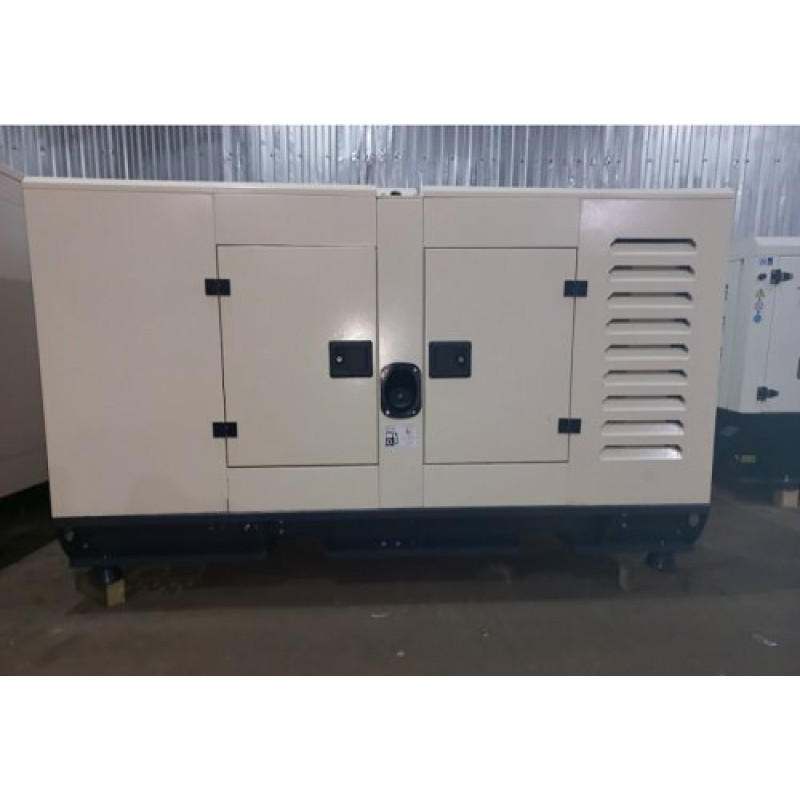

A-Grup TJ-45 Diesel Generator (32 kW)
Product Description: The A-Grup TJ-45 (32 kW) diesel generator from A-Grup is a powerful and reliable three-phase unit designed for continuous operation in commercial, industrial, and residential environments. The model provides a nominal continuous power of 32.4 kW and a maximum (peak) power of 36 kW, operating at 380 V and 50 Hz. Components are carefully selected for durability: a four-cylinder RICARDO ZH4100ZD water-cooled engine, a reliable SURIRELLA 184J three-phase generator, and an electric starter for quick ignition.
Key Advantages:
- Engine: 4-cylinder RICARDO ZH4100ZD with water cooling for stable operation under load.
- Start-up: Electric start (electric starter) — convenient and quick unit ignition.
- Fuel Tank: Large 100 L volume ensures long intervals between refueling.
- Generator: Three-phase SURIRELLA 184J with a nominal power factor of 0.8 cos φ.
- Performance: 50 Hz frequency, 75 dB noise level for moderate acoustic impact during operation.
Purpose and Applications: The A-Grup TJ-45 is ideally suited for power supply to construction sites, agricultural complexes, shopping centers, medical facilities, offices, and private properties where stable 380 V three-phase current is required. The generator can be used as a primary or backup power source, guaranteeing uninterrupted operation of critical systems.
Technical Specifications:
| Voltage: | 380V |
| Engine Type: | 4-cylinder, water-cooled |
| Engine Model: | RICARDO ZH4100ZD |
| Start-up: | Electric starter |
| Fuel Tank Capacity: | 100 L |
| Peak Power: | 36 kW |
| Continuous Power: | 32.4 kW |
| Generator Type: | Three-phase, SURIRELLA 184J |
| Nominal Power Factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise Level: | 75 dB |
| Fuel Consumption (75% load): | 257 g/kWh |
| Insulation Class: | H |
| Protection Rating: | IP22 |
| Dimensions, LxWxH: | 2200x900x1300 mm |
| Weight: | 770 kg |
Operational Characteristics: At 75% load, fuel consumption is 257 g/kWh, which, combined with the 100 L tank, ensures extended autonomous operation. The 75 dB noise level allows the unit to be operated in areas with moderate acoustic background requirements. Insulation class H guarantees thermal resistance of the windings, and IP22 protection rating provides basic protection against ingress of foreign solid objects and water droplets.
Dimensions and Installation: The generator's dimensions of 2200x900x1300 mm and weight of 770 kg require a careful approach to transportation and installation. It is recommended to prepare a sturdy support base and ensure adequate ventilation of the room or site for cooling and safe exhaust gas removal. It is also important to provide access for maintenance and service points.
Conclusion: The A-Grup TJ-45 (32 kW) diesel generator is an efficient and reliable solution for continuous power supply from the manufacturer A-Grup. The combination of the RICARDO ZH4100ZD engine, SURIRELLA 184J three-phase generator, large fuel tank, and convenient operational characteristics makes this model attractive for a wide range of applications requiring high performance and durability.
