InLab TinySA Ultra UAV Detector
The TinySA Ultra UAV Detector from InLab is a portable spectrum analyzer and UAV detector designed for rapid detection of radio frequency emissions across a wide range. The device monitors frequencies from 35 Hz to 6 GHz, allowing it to detect most modern drones, associated systems, and navigation signals. TinySA Ultra captures signals from systems such as Lancet, Orlan, Zala, FPV, as well as GNSS services from DJI, Wi-Fi networks, radio and mobile services (DCS, GSM, GPRS), navigation systems (GLONASS), and other RF sources, functioning as a spectrum analyzer for quick assessment of emission presence and characteristics.
Specifications
- Frequency Range: 35 Hz to 6 GHz
- Detection Range: at least 5 kilometers
- Weight with Case: 2.5 kg
- Alert Methods: display notifications, sound (with headphones or speakers)
- Enclosure Protection: dust- and splash-proof
- Display: 4" 480*320, touchscreen
- Battery Life: 2-4 hours
- Charging Time: 1 hour
- Operating Temperature: -25 to +50°C (at humidity up to 80% up to +25°C)

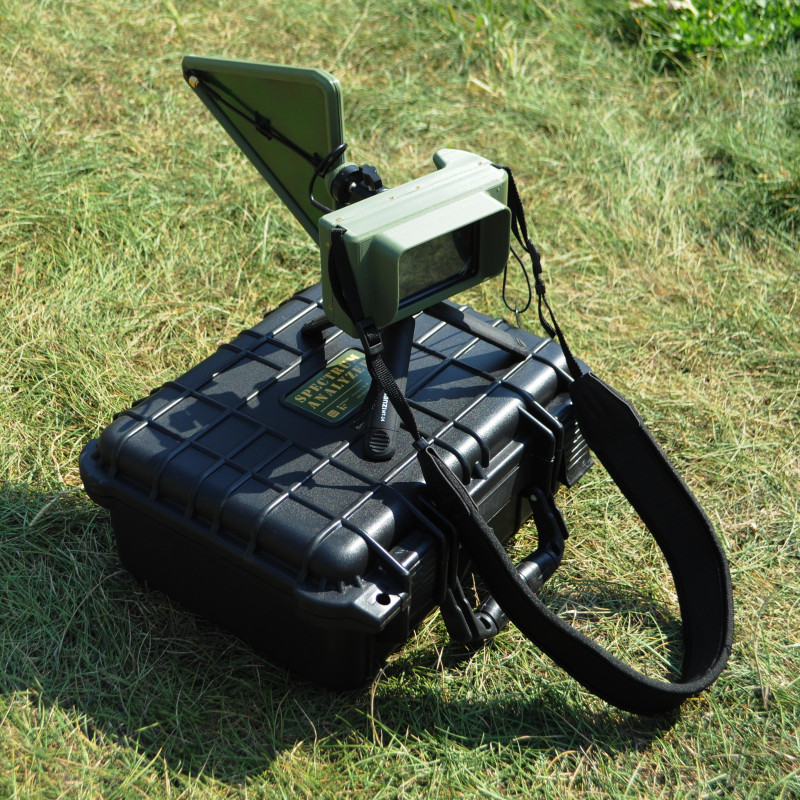

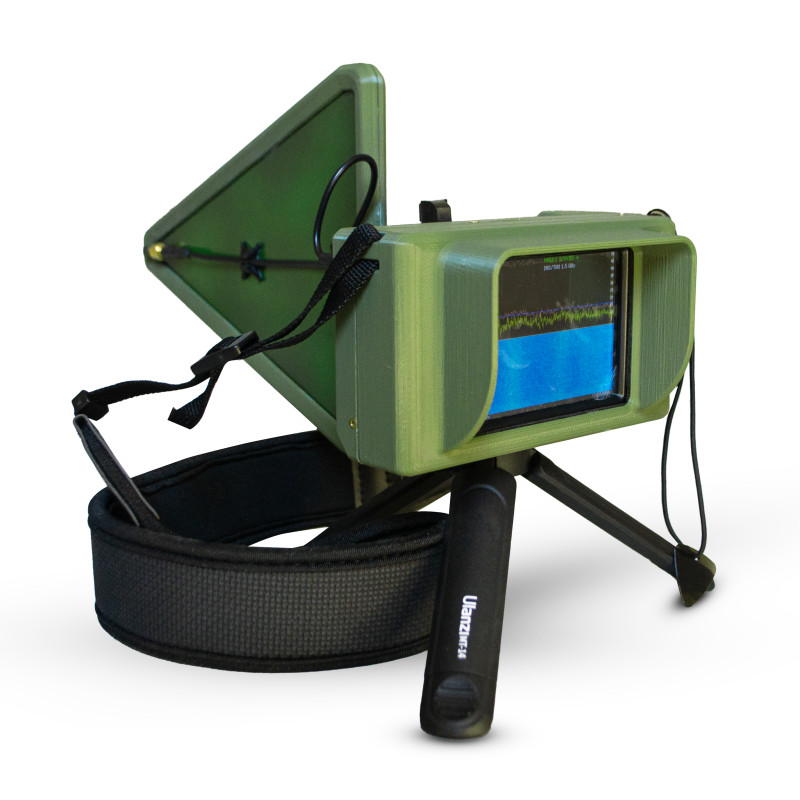

The compact and robust TinySA Ultra combines mobility and reliability in field conditions: the device is protected from dust and splashes, and features a 4-inch 480×320 touchscreen display for convenient visualization of spectrograms and notifications. Its weight with the case is 2.5 kg, making the device easy to transport and quickly deploy in position.
With TinySA Ultra, operators receive instant notifications of RF threats: the device displays signals on the screen, and for added convenience, headphones or external speakers can be connected for audible alerts. A battery life of 2–4 hours allows for extended tasks without recharging, and a full charge in 1 hour ensures a quick return to operation.
TinySA Ultra is effective for airspace control, object protection, electronic reconnaissance (SIGINT), and countering unauthorized UAV use. The device can detect both narrowband and broadband sources, analyze the spectrum, and identify characteristic frequency "signatures" of Lancet, Orlan, Zala, FPV, GNSS DJI, Wi-Fi, DCS/GSM/GPRS, GLONASS systems, and more.

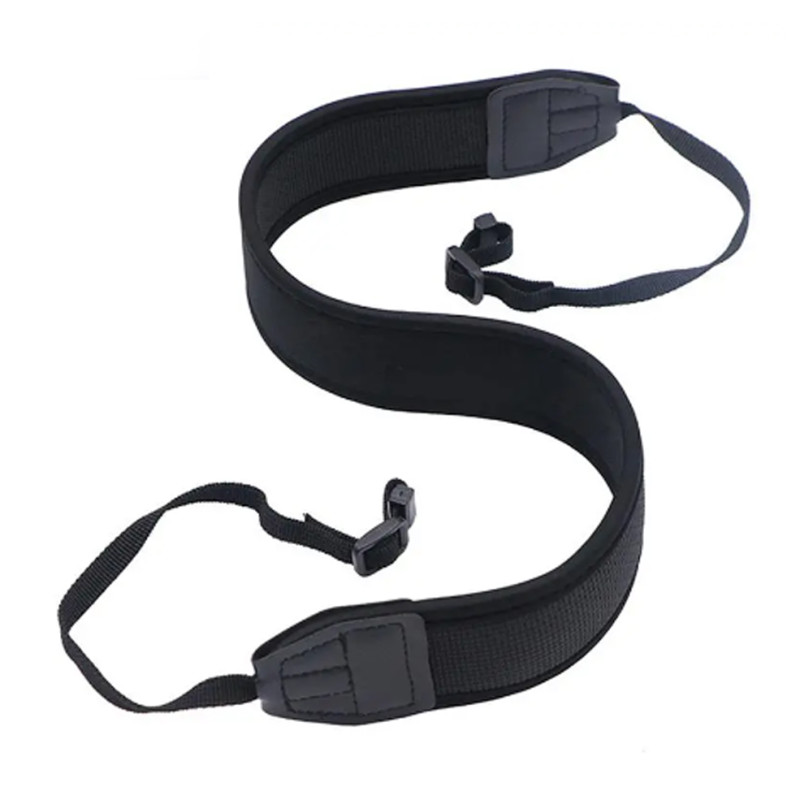

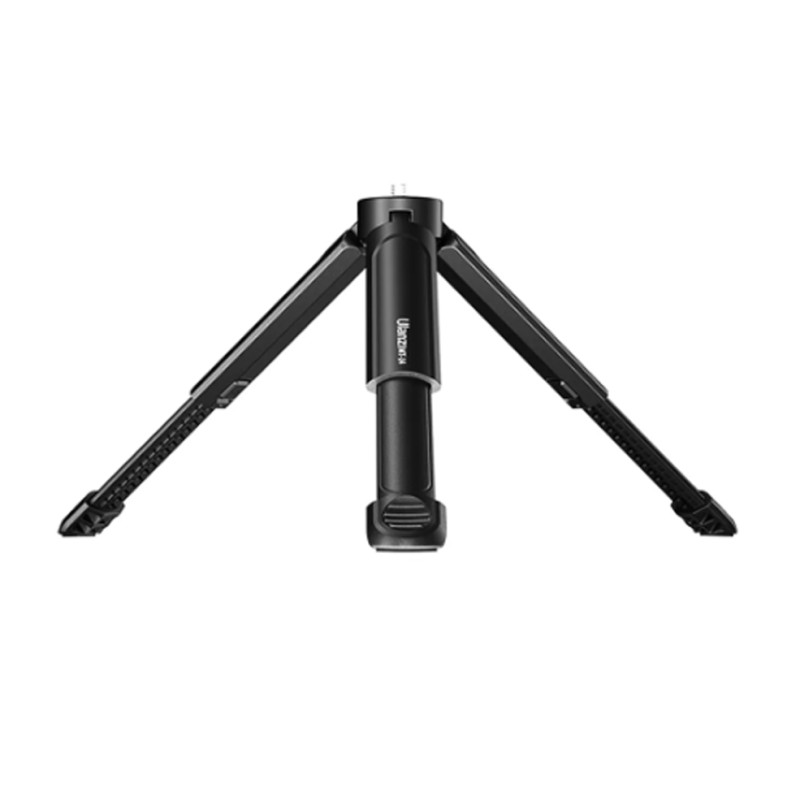

Note: straps and handles may vary by model depending on availability in Ukraine: straps may be fabric with lettering, handles may have a fixed head without retractable legs. Please consider possible variations in configuration when receiving the equipment.
Optional Accessories
- 4-meter antenna cable — +1400 UAH

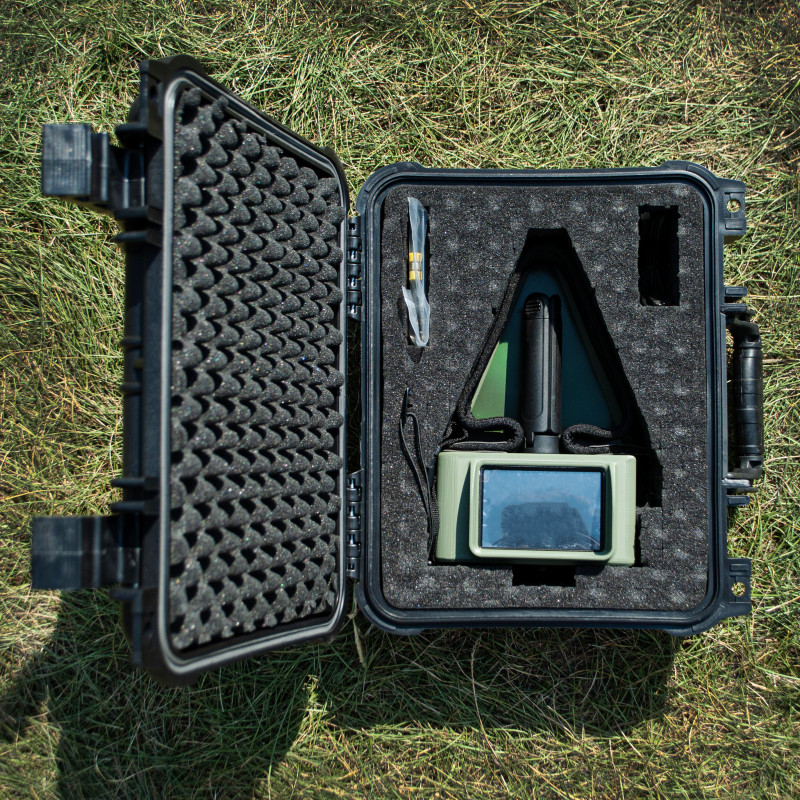

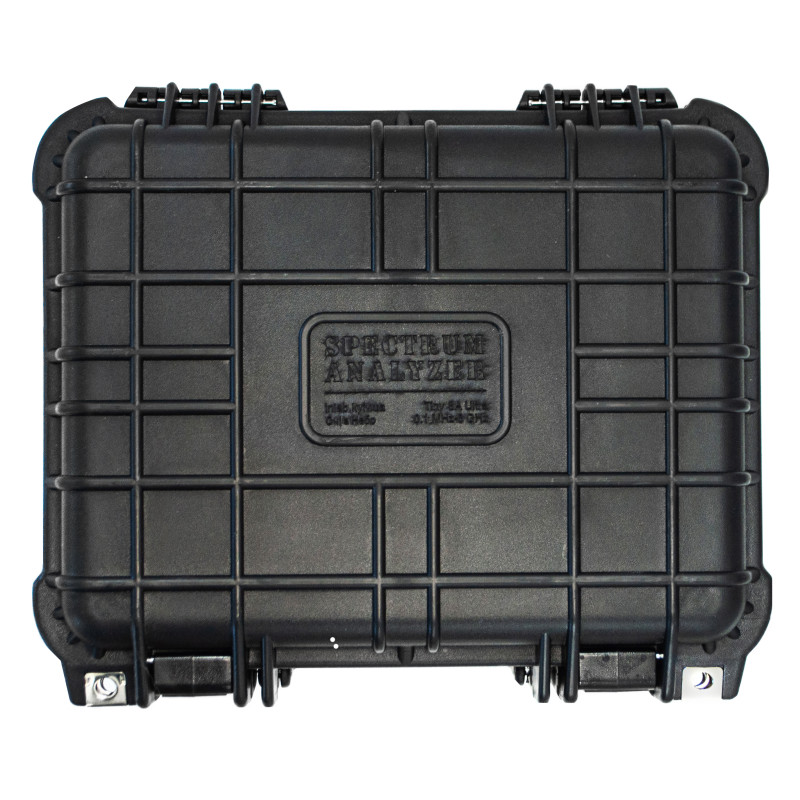

- Transport case — +1700 UAH
- Vivaldi antenna — +1100 UAH
To order additional options, please specify your request in the comments when placing your order. TinySA Ultra — a reliable choice for security, monitoring, and electronic reconnaissance specialists who require a portable yet powerful solution for detecting RF threats and unauthorized UAVs. Product type: Drone Detector. Manufacturer: InLab.
