This antenna is exactly the case where wide range + directivity = results.

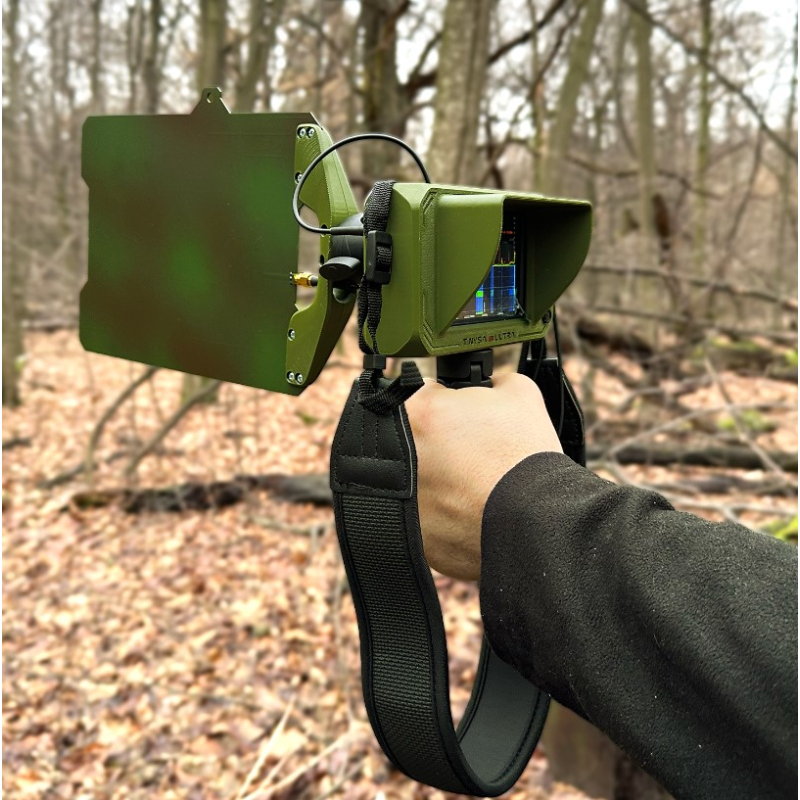

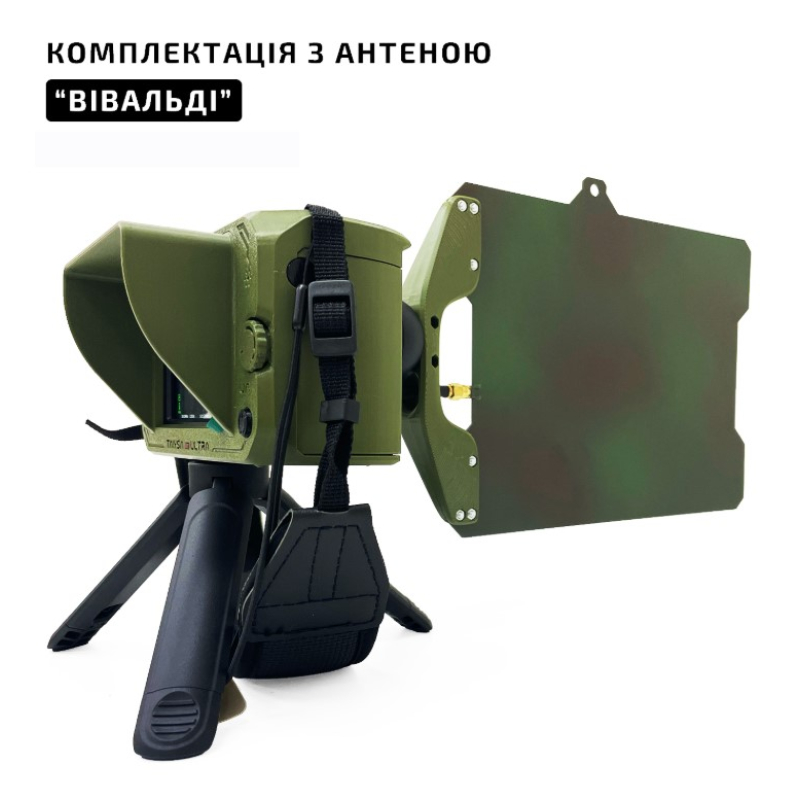

It works stably with systems like TiniSA Ultra and similar solutions for UAV signal detection and analysis.

Specifications:

• Frequency range: 730MHz – 6.5GHz
• Polarization mode: Linear polarization
• Nominal gain: 7dBi; The gain of the R101C antenna slowly increases with frequency, approximately 5 dBi at 800 MHz, 7 dBi at 2.4 GHz, and 9 dBi at 5.8 GHz
• Power: 5 W
• Directivity: R101C has good directivity and small side lobes. It can be used as a direction-finding antenna. The antenna's radiation pattern in the horizontal direction, with a -3 dB beamwidth of approximately 60°; The vertical radiation pattern, with a -3 dB beamwidth of approximately 40°
• Size: 23 x 22.5 cm
• Connector type: SMA-F
• Weight: 150 g
• Temperature range: – 45 ℃ ~ 80 ℃
• Humidity: 0% ~ 95% (100% allowed for a short period, without watering)
• Water resistance: after soaking in water, it needs to be dried and the connecting cable replaced
• Wind resistance: for safety reasons, it is forbidden to use if wind speed exceeds 20 m/s (wind level 8)

Order now and don't waste time experimenting with random antennas.
