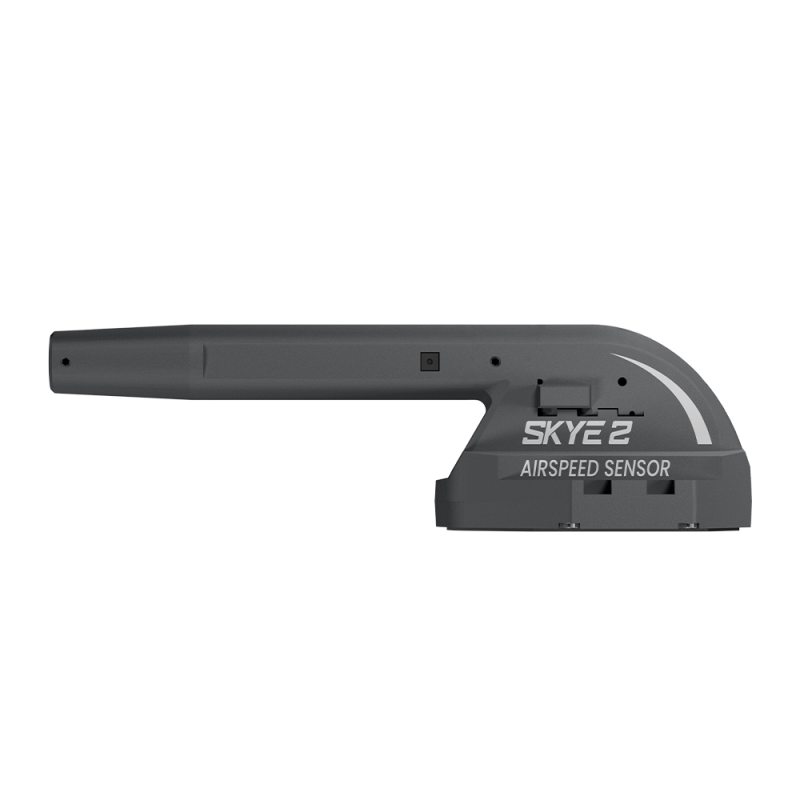

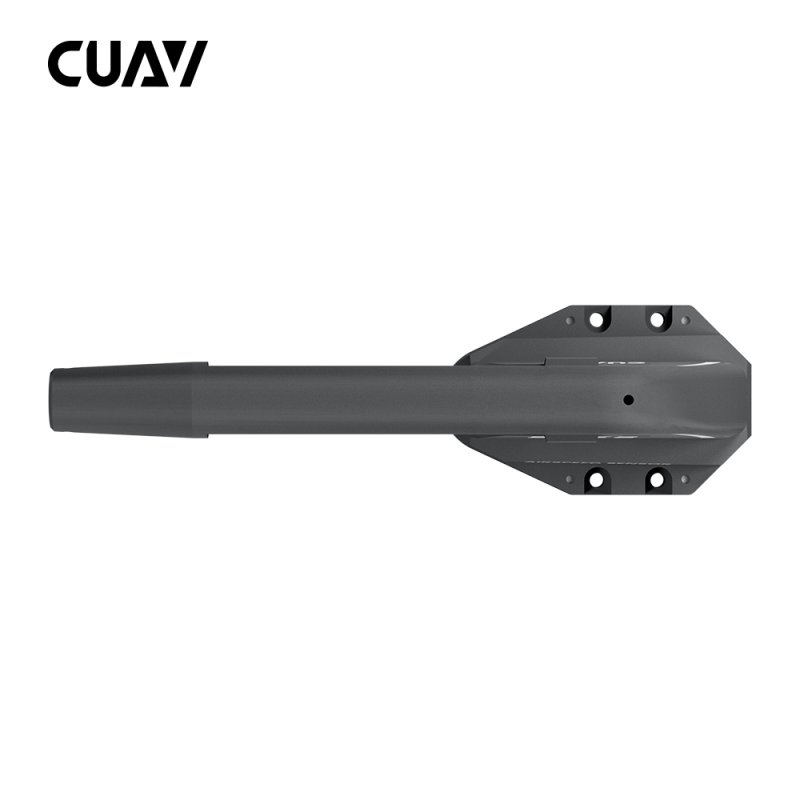

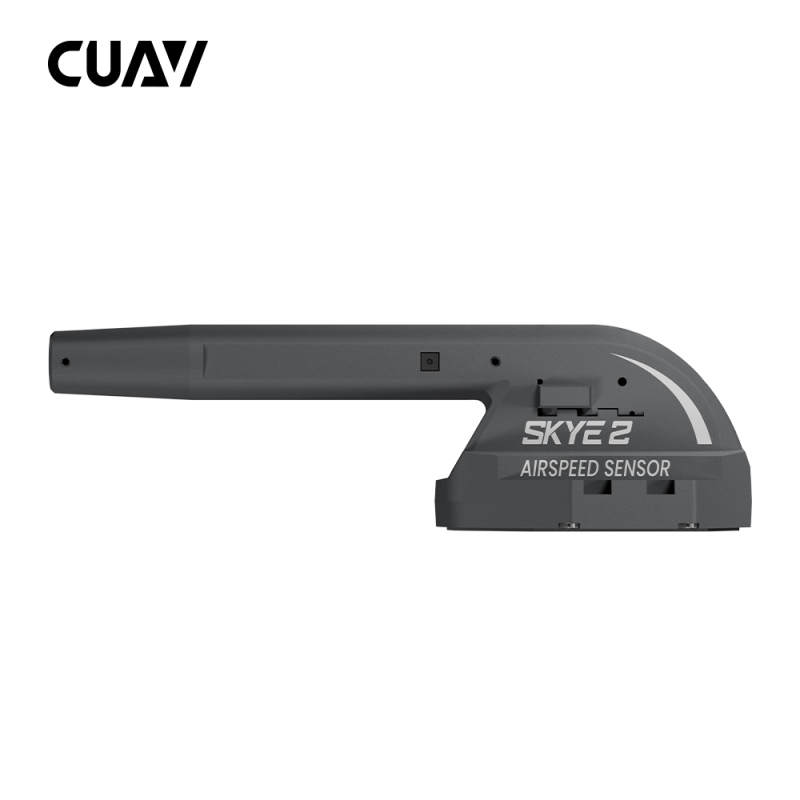

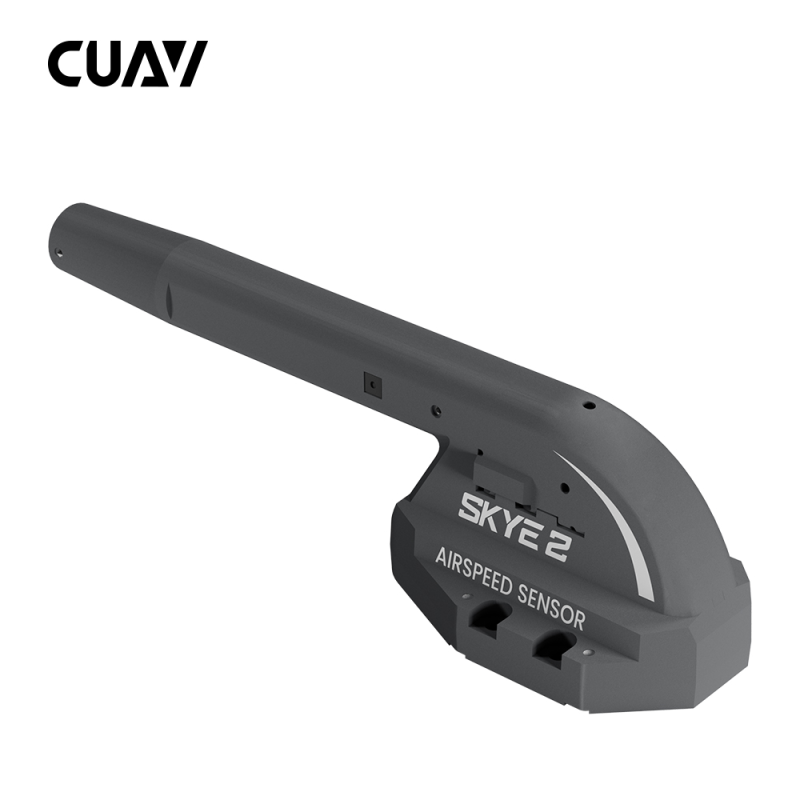

CUAV SKYE 2 Heated Airspeed Sensor

Description

The SKYE 2 airspeed sensor is a high-tech solution for professional unmanned platforms, integrating an STM32F4 MCU computing unit, a low-temperature drift SM5391 differential pressure sensor, a temperature and humidity sensor, and an advanced dual-temperature compensation system into a single housing. The intelligent M4C heating strategy, combined with a 35W frontal heating element, ensures stable operation at low temperatures, effective defrosting, and condensate drainage. This guarantees measurement accuracy, reliable data collection, and flight safety in various weather conditions.

Features

• Intelligent defrosting and water drainage system for continuous operation in humid and icing conditions
• High level of integration: Pitot tube, SM5391 airspeed sensor, temperature and humidity sensor, ARM M4 processor (STM32F4), and dual-temperature compensation system
• 35W frontal heating element with intelligent temperature control system for optimal operating conditions
• M4C intelligent heating strategy ensures precise heating, defrosting, and drainage
• Linear design with low aerodynamic drag and integrated drainage holes for automatic rainwater removal during flight
• Vibration-resistant, accurate airspeed sensor with low temperature drift, suitable for various UAV types
• Supports DroneCAN protocol and is compatible with open-source platforms such as ArduPilot and PX4

Specifications

Compatibility and Application

The CUAV SKYE 2 is designed for integration into various drone and quadcopter models where accurate airspeed information and flight conditions are critical. DroneCAN protocol support and compatibility with ArduPilot and PX4 make this sensor a versatile choice for professional applications: mapping, agricultural measurements, infrastructure inspections, environmental monitoring, and other tasks requiring reliable measurements even in challenging weather conditions.

The intelligent M4C heating capabilities, combined with the low-temperature drift of the SM5391 sensor and mechanical vibration resistance, ensure high reliability of data collection during real flights. The linear design with drainage holes reduces the impact of precipitation and condensate on measurement accuracy. Thanks to its light weight (25 g) and compact dimensions, the sensor is easily integrated even into platforms with limited space.

Brand: China. Product category: Drones and Quadcopters > Drone Components > Drone Accessories.

The CUAV SKYE 2 is an optimal solution for those who value stable readings in challenging weather conditions, high accuracy (±1% FS), and full compatibility with modern open-source flight controllers.
