Accurate Threat Detection

• HazeFlow 2 software algorithm to prevent false smoke alarms.
• Bispectral optical sensor for filtering false smoke alarms.
• Maintenance-free smoke chamber.

Advanced Hardware and Software

• Synchronous alarm of all fire detectors on the premises within 20 seconds.
• Built-in siren with 85 dB loudness at 3 meters.
• Ability to operate without an Ajax hub.
• Up to 7 years of operation.

Easy Installation and Setup

• SmartBracket mounting panel with the ability to align the detector after installation.
• Remote control and configuration in Ajax apps.
• Adding to the Ajax hub via QR code.

• Accurate detection through steam, dust, and time

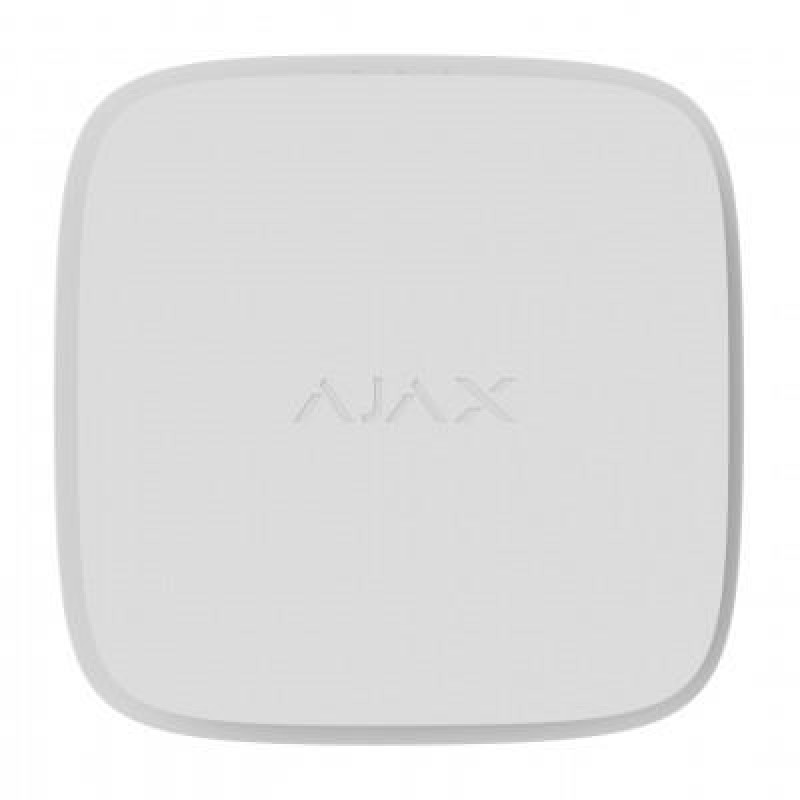

  FireProtect 2 is a new generation device for instant fire detection. The unique smoke chamber does not require regular cleaning, the bispectral sensor distinguishes smoke from steam, the thermistor quickly reacts to the combustion of synthetic materials, and smart software algorithms minimize the probability of false alarms. All this complies with modern fire safety standards. Thanks to its thoughtful design, mounting, and in-app configuration, the detector is installed simply and quickly.

  Operating Principle

  Smoke Detection

  FireProtect 2 detects smoke and does not react to water vapor thanks to a bispectral optical sensor with blue and infrared LEDs. The LEDs emit light at different wavelengths, allowing the detector to determine the size of volatile particles and react only to smoke.

  The detector's smoke chamber is protected from dust, dirt, and insects. Even if dust enters and settles in the smoke channel, it does not threaten detection or impair it. The optical system is designed so that non-volatile particles or insects cannot simultaneously appear in two beams and trigger a false alarm.

  Rapid Temperature Rise Detection

  Two built-in thermistors are responsible for reacting to temperature increases. The thermistors are located outside the detector for faster threat detection.

  If the room temperature exceeds 64°C or rises at a rate of 10°C per minute or more, the detector recognizes this as a rapid temperature rise and raises an alarm. A temperature alarm can trigger even if there is no smoke in the room.

  Detection of Dangerous Carbon Monoxide Concentration

  FireProtect 2 detects dangerous carbon monoxide concentrations using a built-in chemical sensor with a lifespan of 10 years or more.

  Carbon monoxide (CO) is a colorless, tasteless, and odorless gas produced by the incomplete combustion of fuel in car engines and heating appliances that run on coal or other natural fuels. For example, it can be produced by fireplaces, boilers, or heating systems. In sealed or enclosed spaces with poor ventilation, a life-threatening concentration of carbon monoxide can accumulate.

  Synchronous Fire Detector Alarm

  The detector supports synchronous fire alarms. This function activates the built-in sirens of all Ajax fire detectors in the system if at least one of them triggers. In case of fire, this allows as many people as possible on the premises to be notified.

  FireProtect 2 detectors have an improved synchronous alarm algorithm that activates the sirens of all fire detectors within 20 seconds. This function only works when the detectors are operating with a hub.

  Operation without a Hub

  FireProtect 2 detectors can be used without connecting to an Ajax hub. In this case, the detector signals fire alarms with its built-in siren and LED indication but does not send notifications to the user's smartphone, Ajax Translator, or PRO Desktop.

  Manual and Automatic Testing

  FireProtect 2 regularly checks the status of batteries and sensors. If a malfunction is detected, the hub will instantly send a notification to users and the monitoring station. The detector itself will activate the corresponding light and sound notification with its built-in siren and LEDs. All detector statuses can be checked at any time in Ajax apps.

  The detector supports a test mode. The mode is activated by pressing the front panel of the detector. The front panel is equipped with a mechanical button, so it can be pressed with either a hand or a mop. During the test, the built-in siren is activated, and the sensors are tested. This allows the installation engineer to test the device at any time and demonstrate the detector's light and sound indication to the client for different
  types of alarms.

  Jeweller Communication Technology

  Jeweller is a radio protocol for fast and reliable two-way communication between the hub and connected devices. The protocol provides a wireless communication range with FireProtect 2 of up to 1700 meters. Such a communication range allows detectors to be installed even on very large premises.

  Jeweller is responsible for transmitting alarms and events. The radio protocol also ensures the activation of synchronous fire detector alarms within 20 seconds in a system with any number of FireProtect 2 devices. Thanks to Jeweller, users and the monitoring station can always see the current status of detectors in Ajax apps.

  Quick Installation and Connection

  To install FireProtect 2, there is no need to disassemble the detector's casing. Replaceable or non-replaceable batteries are installed, and the SmartBracket mount is removed from the detector without tools. The SmartBracket mounting panel has 90° of freedom. This allows the installation engineer to align the detector's position after installation.

  The detector connects to the Ajax security system in less than a minute. Simply open the Ajax app, scan the QR code, and add the device to a room and security group.

• Specifications

  • Manufacturer: Ajax

  • Brand: Ajax

  • Detector type: Wireless

  • Sensor type: Combined detector

  • Model: FireProtect 2 RB (Heat/Smoke/CO)

  • Connection method to alarm control panel: Wireless

  • Wireless signal transmission range: 1700 m

  • Detected gas: CO

  • Compatibility: Hub Plus, Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Hybrid (2G), Hub Hybrid (4G), ReX, ReX 2

  • Communication:

    Jeweller communication technology: Proprietary wireless technology for transmitting alarm and event signals.

    Functions:

- Two-way communication.

- Protection against device spoofing.
- Block encryption with a floating key.
- Instant notifications.
- Remote configuration via Ajax.

Radio frequency ranges: 866.0 – 866.5 MHz
Maximum effective radiated power (ERP): up to 20 mW. Automatic power adjustment to reduce energy consumption and radio interference.

Radio signal modulation: GFSK

Radio communication range: up to 1700 m

Between the detector and the hub (or radio signal repeater) in the absence of obstacles.

Radio communication encryption: All stored and transmitted data are protected by block encryption with a floating key.

Radio frequency hopping:

To prevent radio interference and jamming.

• Sensitive elements: Smoke sensor, Temperature sensor, CO (carbon monoxide) sensor

• Smoke detection

  Sensitive element: optical bispectral sensor. Detects smoke by particle size in the air.

  False alarm protection: Does not react to water vapor.

  Patented smoke chamber: Protects the smoke sensor from dust, dirt, and insects.

• Dangerous temperature detection

  Sensitive element: according to the requirements for Class A1 temperature sensors

  Requirements of EN 54-5 and BS 5446-2 standards.

  Temperature level alarm: at temperatures above 64°C

  Rapid temperature rise alarm: when the temperature rises by more than 10°C in 1 minute (or faster)

• Carbon monoxide (CO) detection

  Sensitive element: chemical CO sensor

  Alarm when accumulated CO dose is exceeded:

  more than 50 ppm (0.005%) — no more than 90 minutes
  more than 100 ppm (0.01%) — no more than 40 minutes
  more than 300 ppm (0.03%) — no more than 3 minutes

  A CO concentration of 400 ppm (0.04%) for 3 hours can pose a life threat. The detector stops signaling dangerous carbon monoxide levels when the concentration drops to 50 ppm (0.005%) within one minute.

  Sensor lifespan: 10 years

  After 10 years of operation, the detector must be replaced with a new one.

• Sabotage protection

• Tamper against opening: Notifies of attempts to tear the detector from the surface or remove it from the mounting panel.

• Protection against jamming

  Device authentication

  Communication loss detection: within 15 minutes

  The time to detect communication loss depends on the settings for the number of undelivered data packets (specified in Jeweller or Jeweller/Fibra settings). The polling period is fixed at 300 seconds.

• Additional features:

Built-in siren: 85 dB loudness at 3 meters

Audible alarm notification. Active until the cause of the trigger is eliminated or until the user disables the notification.

Synchronous fire detector alarm: Fire detectors in the system activate their built-in sirens as soon as at least one of the detectors registers an alarm. The synchronous alarm is activated within one "hub — detector" polling interval, but no later than 20 seconds.

LED indication:

green — power indication

The LED indicator on the device body flashes once every 56 seconds. The indication complies with the requirements of EN 50291 standard.

yellow — malfunction indication

The LED indicator on the device body flashes when malfunctions are detected. For example, in case of battery discharge, smoke chamber contamination, or end of service life.

red — fire alarm indication

The LED indicator on the device body flashes when the detector detects a fire alarm.

Button on the front panel of the detector

In normal mode, pressing it starts a smoke chamber test. During an alarm or malfunction, pressing it mutes the detector's audible notification.

• Operating temperature range: 0 ° C - +50 ° C

• Operating humidity: Not more than 80%

• Protection class: IP20

• Power supply: 2 x CR123A (AJAX CR123A 3V Battery (000015276); Panasonic Lithium CR123 Blister, 1 pc. (CR-123AL/1BP); Philips Lithium CR123A Blister, 1 pc. (CR123A/01B); VARTA Lithium CR123 Blister, 1 pc. (06205301401) )

• Dimensions: 123.7 × 123.7 × 44.7 mm

• Weight: 197 g

• Color: White
