Detailed description of Ajax EN54 Fire Hub Jeweller
Ajax EN54 Fire Hub Jeweller is a modern fire control panel (CIE) that serves as a key element of the Ajax wireless fire safety system, specifically designed for commercial, municipal, and infrastructure facilities. It provides centralized management of all fire suppression system elements, alarm notifications, and monitoring of sensor and zone status.

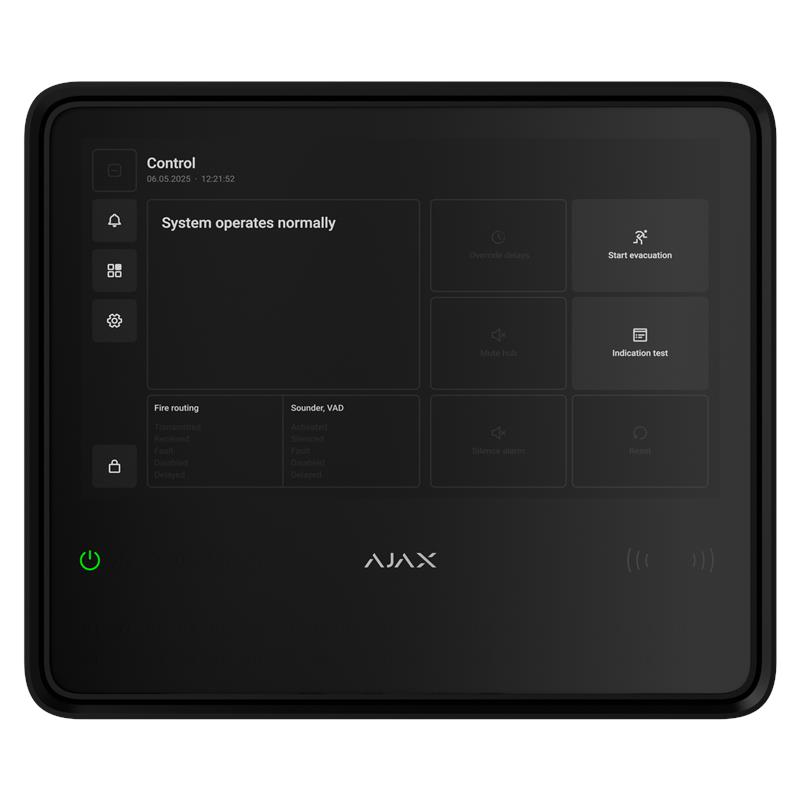

The device is equipped with a large 10.1-inch IPS touchscreen display, which allows real-time access to information about events, zone status, and devices. The interface is intuitive, providing quick access to key functions even for personnel without specialized training.
The fire control panel supports up to 200 wireless devices, which can be distributed across 40 independent zones, allowing for effective control over large facilities. Communication with devices occurs via the proprietary Jeweller radio protocol, which ensures stable two-way communication at a distance of up to 2000 meters in open space. To extend coverage, ReX range extenders are supported, enabling wireless coverage of up to 35 km².
The EN54 Fire Hub supports multiple communication channels: Ethernet, Wi-Fi, and two SIM cards (2G/3G/4G), guaranteeing communication channel redundancy and stable data transmission even if one channel is disconnected. All data is transmitted over encrypted channels, complying with modern cybersecurity standards.
The control panel is certified according to European standards EN 54-2, EN 54-4, EN 54-21, EN 54-25, which is a mandatory requirement for using systems in certified fire projects. Additionally, the device complies with the EN 50131 (Grade 2) standard for security systems.
The EN54 Fire Hub is equipped with backup power, which ensures autonomous system operation for up to 24 or 72 hours (depending on the installed battery). Built-in siren and LED indication signal alarms, malfunctions, or zone disconnections, and all notifications are duplicated via Ajax mobile and desktop applications.
Installation and setup of the Ajax EN54 Fire Hub take minimal time thanks to its thoughtful design and flexible configuration tools. All settings can be performed remotely, allowing system maintenance without the need for physical presence at the facility.
Ajax EN54 Fire Hub Jeweller is an effective solution for projects where installation speed, expansion flexibility, compliance with international safety standards, and reliable operation in all conditions are important.
Technical specifications of Ajax EN54 Fire Hub Jeweller
| Characteristic | Parameter |
|---|---|
| Device type | Fire control panel (CIE) |
| Display | 10.1″ IPS touchscreen display |
| Number of devices | Up to 200 wireless devices |
| Number of zones | Up to 40 zones |
| Radio protocol | Jeweller (range up to 2000 m) |
| Repeater support | ReX (coverage up to 35 km²) |
| Communication channels | Ethernet, Wi-Fi, Dual SIM (2G/3G/4G) |
| Certification standards | EN 54-2, EN 54-4, EN 54-21, EN 54-25, EN 50131 (Grade 2) |
| Autonomous operation | 24 or 72 hours (depending on battery) |
| Power supply | Main power 110-230 V AC, rechargeable battery (optional) |
| Alerts | Built-in siren and light indication |
| Malfunction monitoring | Automatic detection and notification of communication loss, battery discharge |
| Management access | Remote control via Ajax PRO Desktop and mobile applications |
| Integration | Support for security devices, automation scenarios, video surveillance |
| Dimensions | 290 x 290 x 80 mm |
| Weight | ~3 kg |
| Operating temperature | From -10°C to +40°C |
| Humidity | Up to 85% |
