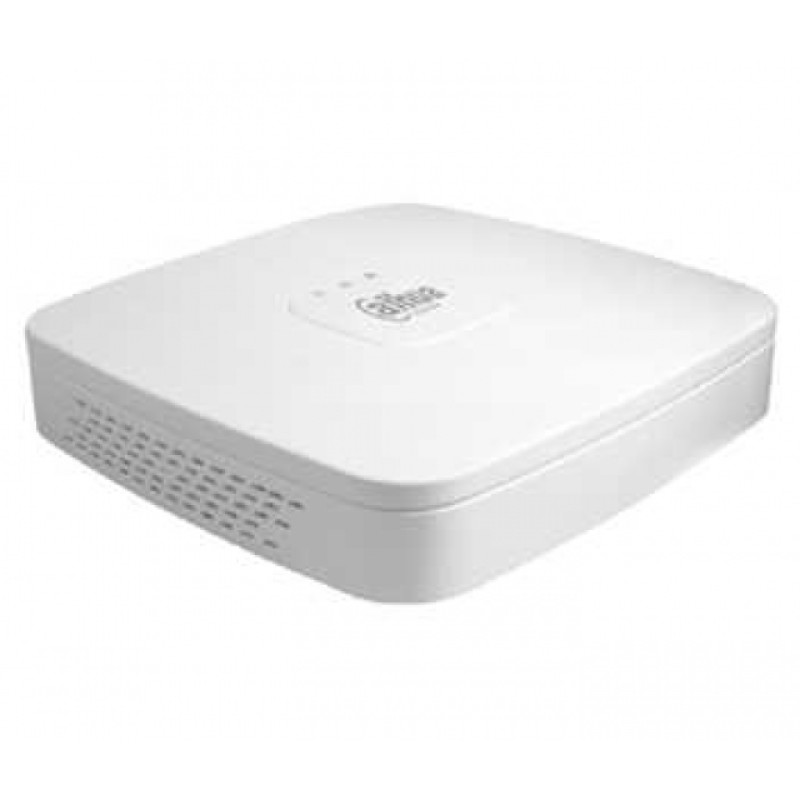

Dahua DH-XVR4108C-I. 8-Channel Penta-brid 1080N/720p Smart 1U 1HDD WizSense
Dahua DH-XVR4108C-I — 8-Channel Penta-brid 1080N/720p Smart 1U 1HDD WizSense
Brand: Dahua. This DVR is designed for compact and medium-sized video surveillance systems where compatibility with various video signal types and space-saving in a rack are important due to its 1U form factor. The model supports WizSense intelligent features, which enhance the efficiency of the video surveillance system.
Key Features
- Video signal support: HDCVI, AHD, TVI, CVBS, and IP (Penta-brid) — allows connecting cameras of different standards without additional converters.
- Video recording: 1080p at 25 fps and 720p at 25 fps — provides a clear picture for storing and analyzing events.
- Video outputs: HDMI and VGA — convenient connection of monitors or TVs for real-time viewing.
- Audio interfaces: 1 input / 1 output for connecting a microphone and speaker if audio narration or recording is needed.
- Network interface: 1 x RJ-45 100 Mbps — stable reception of video stream over LAN.
- Storage and management interfaces: 2 x USB, 1 x SATA HDD (supports drives up to 6 TB) — sufficient for archiving long recordings.
- Power and power consumption: DC 12V/1.5A, 7W — low power consumption and simple power organization.
- Dimensions: 205 x 211 x 46 mm — compact 1U chassis for mounting in small cabinets or placing on a shelf.
Technical Specifications
| Parameter | Value |
|---|---|
| Supported video signals | HDCVI / AHD / TVI / CVBS / IP |
| Recording modes | 1080p — 25 fps; 720p — 25 fps |
| Video outputs | HDMI, VGA |
| Audio | 1 input / 1 output |
| Network | 1 x RJ-45 100 Mbps |
| Interfaces | 2 x USB; 1 x SATA HDD (up to 6 TB) |
| Power supply | DC 12V / 1.5A |
| Power consumption | 7W |
| Dimensions | 205 x 211 x 46 mm |
The Dahua DH-XVR4108C-I model is ideal for offices, shops, warehouses, or private properties where a combination of modern intelligent algorithms (WizSense) and flexible connection of cameras of different standards is required. The presence of a SATA interface with support for drives up to 6 TB allows storing long-term archives, and two USB ports ensure quick export of recordings or connection of peripherals. HDMI and VGA video outputs make the device universal for connecting to various types of monitors. The product falls under the category: Electronics > Video Surveillance > DVRs.
