KASPER C2 300-5800 MHz Modular EW System by UAV tech

The KASPER modular EW station (12 modules) is designed for use as a vehicle-mounted electronic warfare system. The station is supplied in configurations tailored to radio interference suppression requirements and can be modified according to customer needs. Manufacturer: UAV tech. Product type: EW jammers.

Key Features

Full range coverage can suppress all existing UAV types as of March 25, 2025, by jamming control and video transmission signals. Remote control from a standard vehicle is possible. The effective suppression distance depends on the distance to the enemy pilot, the power of their signal, and the FPV drone's frequency, ranging from 100 m to 500 m.

Configuration Options

Standard configuration options are available:

• mini FPV 720-980 MHz — 3 modules — 145,000 UAH
• full FPV 300-1100 MHz — 6 modules — 232,000 UAH
• full FPV + Mavic 300-110, 2400, 5800 MHz — 8 modules — 294,000 UAH

Technical Specifications and Design

• Power supply: external 12/230V, built-in 36 Ah at 12V battery;
• Protection for each module: thermal and overcurrent;

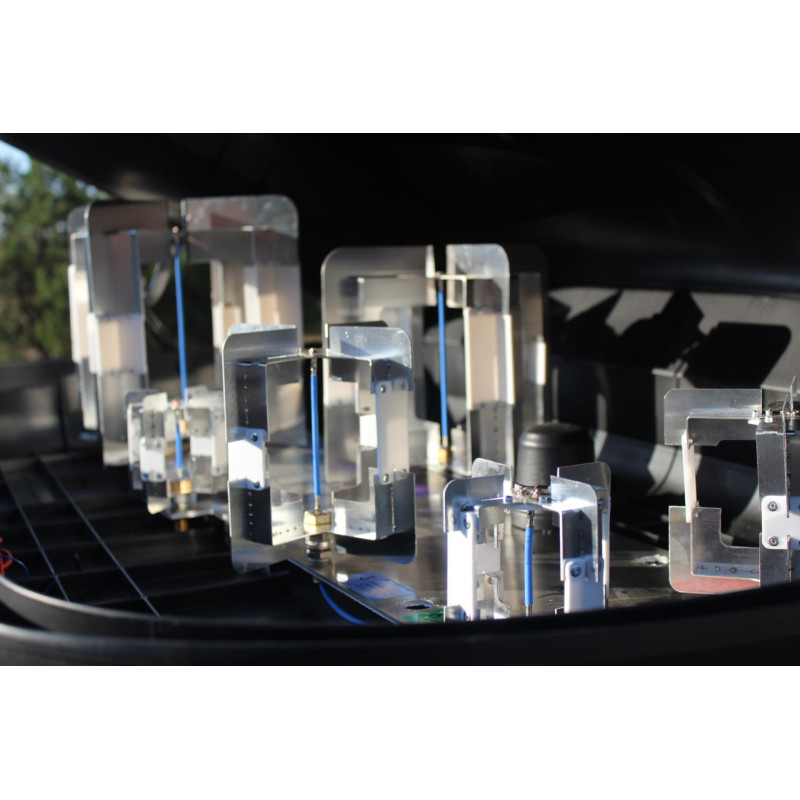

• Omnidirectional 360° antennas;
• Reverse polarity protection from the battery side;
• Neodymium magnets for mounting on a metal surface;
• Protection class: IP54;
• Cooling: passive.

Typical Kit (optional)

Kit (optional): EW system (auto-box) with 2–8 modules; cable with 800 W power supply unit for 230V mains; control cable 3–10 m; battery power cable 80A, length 3–10 m; built-in quadrifilar/helix antennas — 2–8 pcs; magnetic mounts for vehicle with vibration-damping pads — 4 pcs.

Ranges (optional)

Individual ranges are available with configurable options and pricing:

• 1 Range 300 MHz (320-400, dome);
• 2 Range 430 MHz (400-500, dome) — 116,000.00 UAH;
• 3 Range 500 MHz (500-600, dome) — 145,000.00 UAH;
• 4 Range 700 MHz (710-850, dome) — 174,000.00 UAH;
• 5 Range 900 MHz (850-980, dome) — 203,000.00 UAH;
• 6 Range 1000 MHz (980-1100, dome) — 232,000.00 UAH;
• 7 Range 1200 MHz (1200-1350, dome) — 261,000.00 UAH;
• 8 Range 1500 MHz (1450-1650, dome) — 290,000.00 UAH;
• 9 Range 2400 MHz (2300-2485, dome);
• 10 Range 3500 MHz (3400-3600, dome);
• 11 Range 5200 MHz (5200-5400, dome);
• 12 Range 5800 MHz (5700-5850, dome).

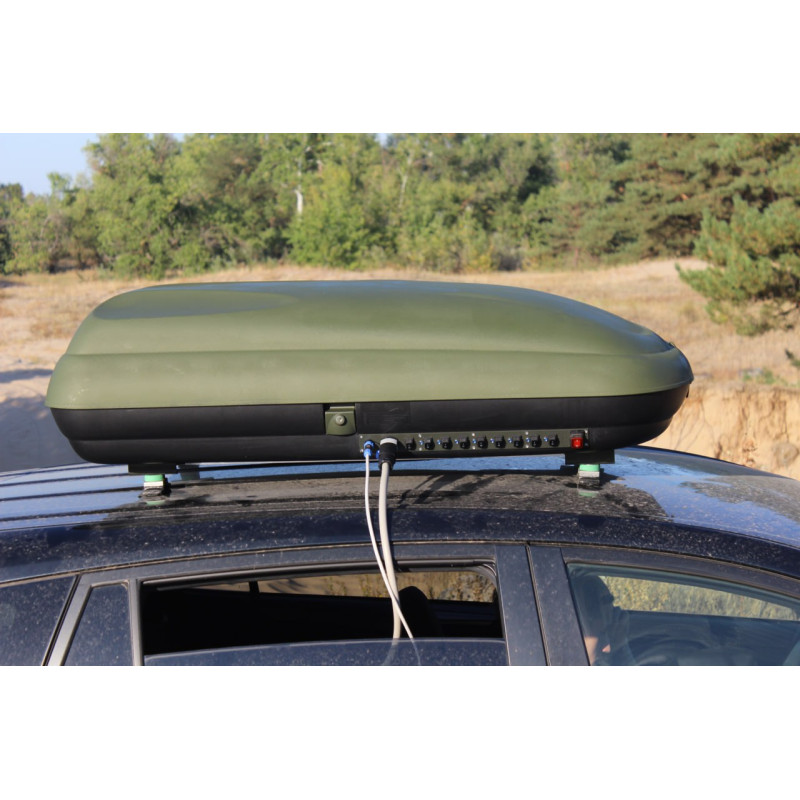

The station is designed for quick installation on a vehicle platform and operation in field conditions with minimal maintenance. Thanks to its modular architecture, rapid reconfiguration or module replacement is possible to expand frequency coverage. The system is protected against overheating and current overloads at the module level, has autonomous power, and magnetic mounts for securing to the vehicle's metal surface.

KASPER EW is suitable for tasks of operational suppression of UAV control and video communication channels across a wide frequency range and can be equipped with additional antennas and cables as per customer requirements.
