MODULAR ELECTRONIC WARFARE STATION "KASPER C3"

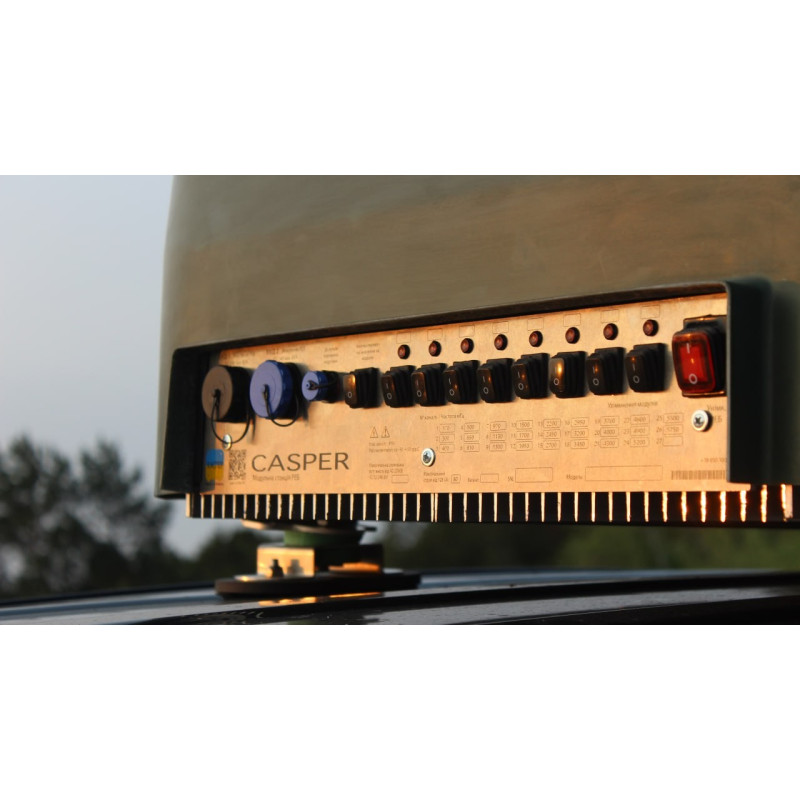

EW KASPER C3 200-6000 MHz Modular from manufacturer UAV tech is a modular vehicle-mounted electronic warfare station designed to suppress control and video signals of FPV drones in the range from 200 to 6000 MHz. The station can be modified depending on the requirements for radio interference frequencies and channel configuration. Remote control of the complex from the vehicle is possible.

Key Features

• Coverage range: 200 to 6000 MHz (suppressing control and video signals)
• Channels #1 – 26 (200-6000 MHz); no more than 16 channels in one configuration
• Channels 1-19: quadrifilar antennas
• Channels 20-26: helix/quadrifilar antennas
• Number of antennas per channel: 1 pc.
• Transmitter power of each channel: 50 W
• Total radiated power: up to 80 W
• Housing: fiberglass box
• Overheat protection: yes
• Cooling: passive

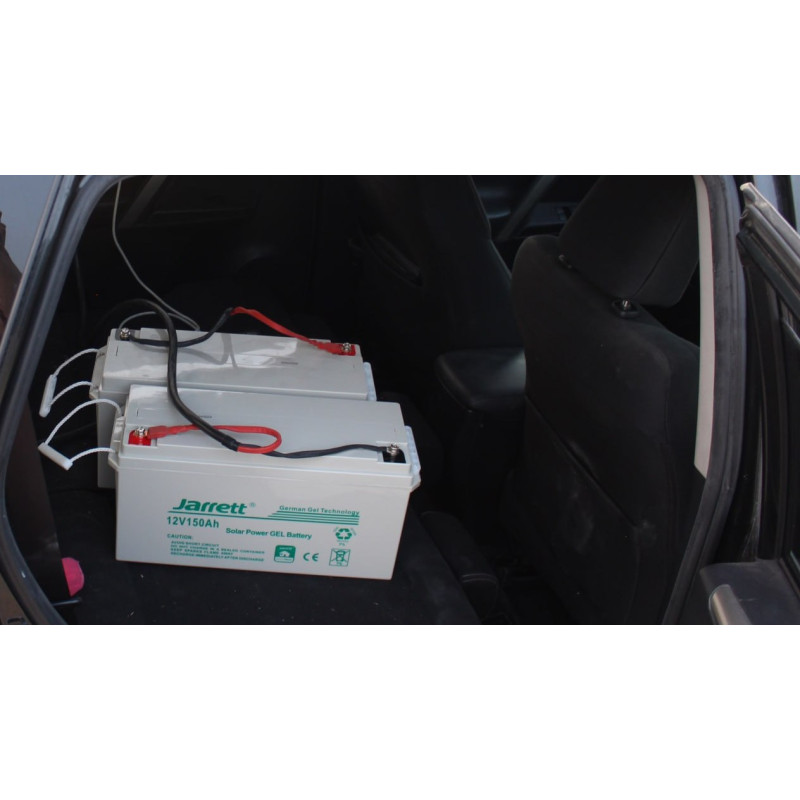

• Operating time from external batteries: 1.5–4.6 hours
• External battery fuse: 80 A
• Reverse polarity protection from battery side: yes
• Effective range: 50 m to 500 m, depends on distance to pilot, signal strength, and FPV drone frequency
• Dimensions (mm) length/width/height: 1280/780/490
• Total weight: 30 kg
• Protection class: IP54

Configuration (optional)

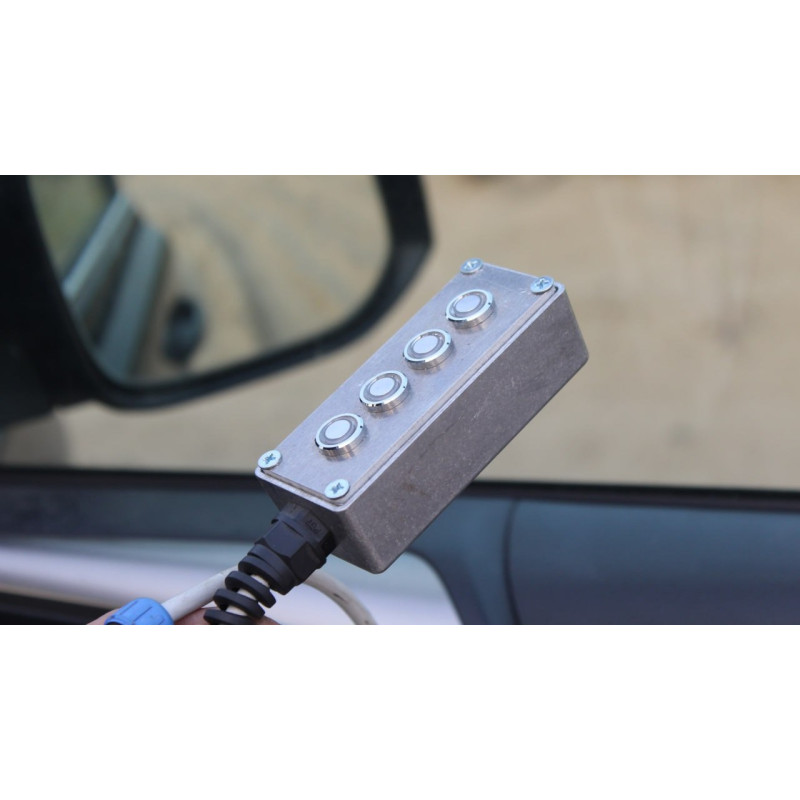

• EW complex remote control cable (3 m) — 1 pc.
• Battery power cable (3 m) 60 A — 1 pc.
• Radiation check indicator — 1 pc.
• Antenna for channels 1-19 — quadrifilar type
• Antenna: helix (for corresponding channels)

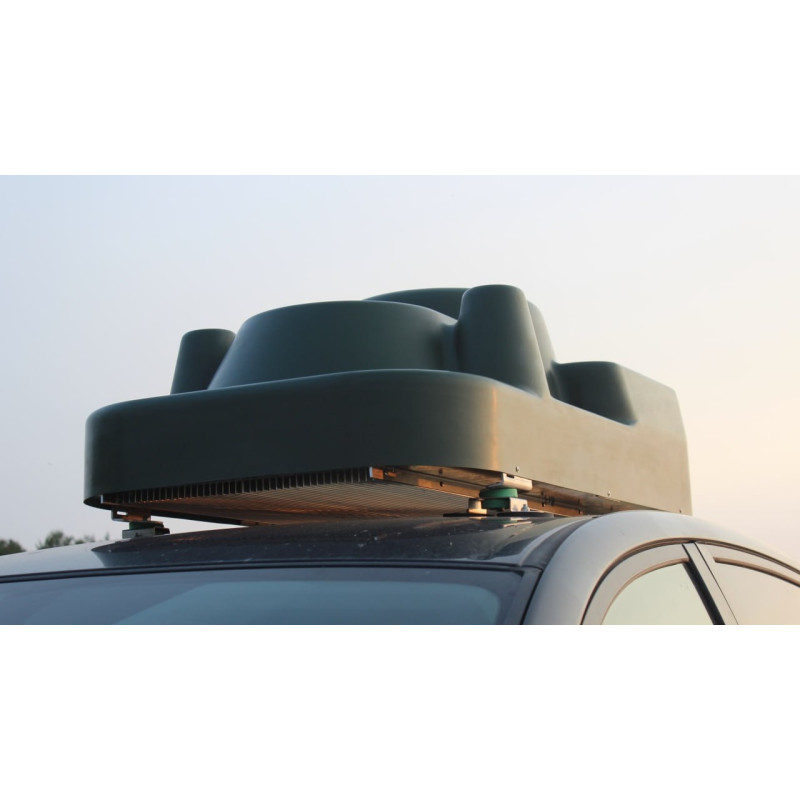

• Magnetic car mount with vibration-damping pads — 4 pcs.
• Roof rail mounting kit — 4 pcs.

Additional (options and batteries)

Uninterruptible power supply module for Kasper C3 modular systems
General parameters of the complex: Protection level. –IP 54
Dimensions. 670x380x315 mm
Weight. 50kg

Price B100. (100Ah) - 38,900 UAH.

Price B200. (200Ah) - 64,800 UAH.

Ranges can be ordered within the specified MHz limits. No more than 16 active channels are allowed in a configuration.

Detailed list of ranges (can be ordered within the specified limits)

• 1. 100-200
• 2. 200-300
• 3. 300-400
• 4. 400-500
• 5. 500-650
• 6. 650-810
• 7. 810-970
• 8. 970-1130
• 9. 1130-1300
• 10. 1300-1500
• 11. 1500-1700
• 12. 1700-1950
• 13. 1950-2200
• 14. 2200-2450
• 15. 2450-2700
• 16. 2700-2950
• 17. 2950-3200
• 18. 3200-3450
• 19. 3450-3700
• 20. 3700-3950
• 21. 3950-4200
• 22. 4200-4450
• 23. 4450-4700
• 24. 4700-4950
• 25. 4950-5200
• 26. 5200-5450
• 27. 5450-5700
• 28. 5700-6000

Purpose and Advantages: The modular design allows flexible configuration of the system for specific tasks, increasing or decreasing the number of channels, and changing antenna types for specific frequencies. Overheat and reverse polarity protection ensure reliable operation in field conditions, while the fiberglass housing and IP54 protection class provide resistance to moisture and dust. Passive cooling minimizes maintenance requirements. The complex is suitable for vehicle installations with remote control capability.

Manufacturer: UAV tech. Product type: EW jammers.
