The GV-009-UPS-A-1203-5A uninterruptible power supply (UPS) consists of a switching power supply unit that converts input voltage 100-240 V (mains frequency – 50/60 Hz) to DC 13.8 V ±5% and an external 12 V battery (not included) with a capacity of 7.9 Ah.
Where are GreenVision uninterruptible power supplies used?
- Video surveillance systems
- Electric locks and intercoms
- Security systems and alarms
- Access control
- Luminaires, LED strips, and bulbs with a 12-volt power supply
- Other 12-volt low-current systems

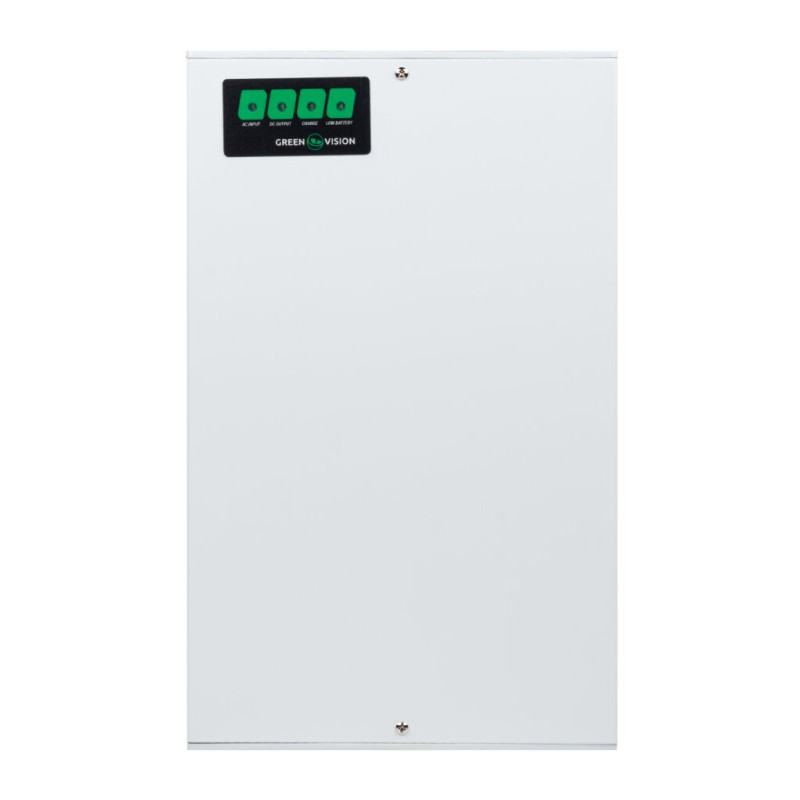

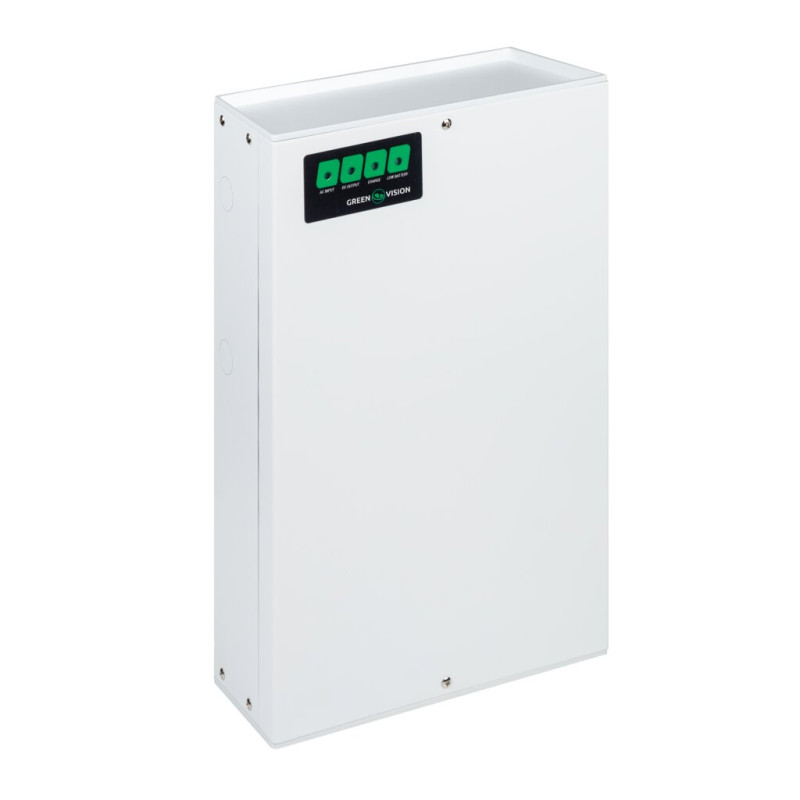

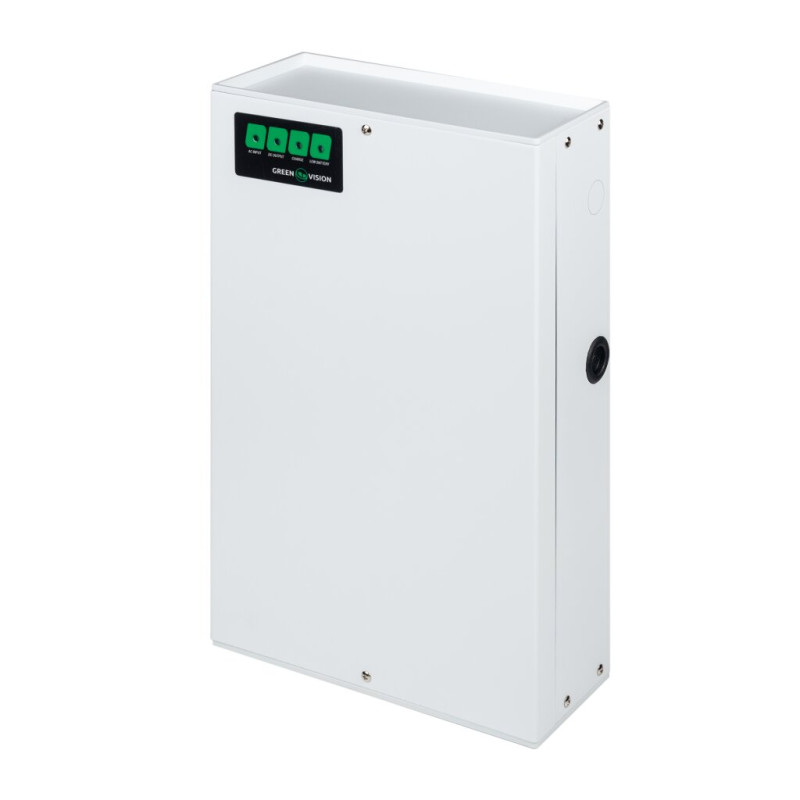

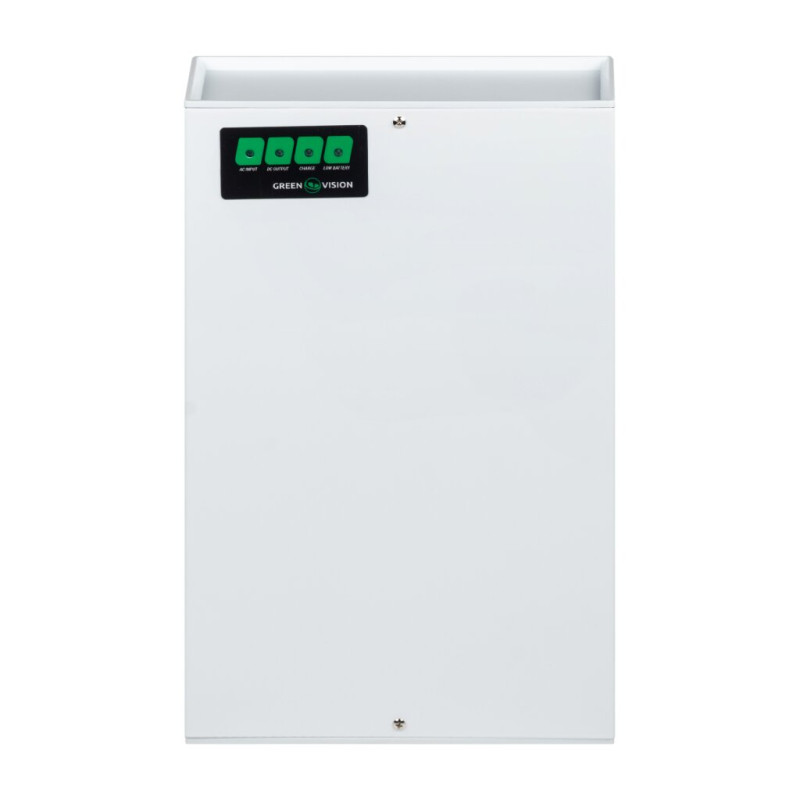

The power supply unit and battery are enclosed in a metal casing with a lock for opening the door.
LED indicators for operating modes are installed on the external panel of the GV-009-UPS-A-1203-5A UPS casing.
The uninterruptible power supply has a load current of 5 A. The UPS is reliably protected against output short circuits, overcurrents, and overcharging or premature discharge of the battery.

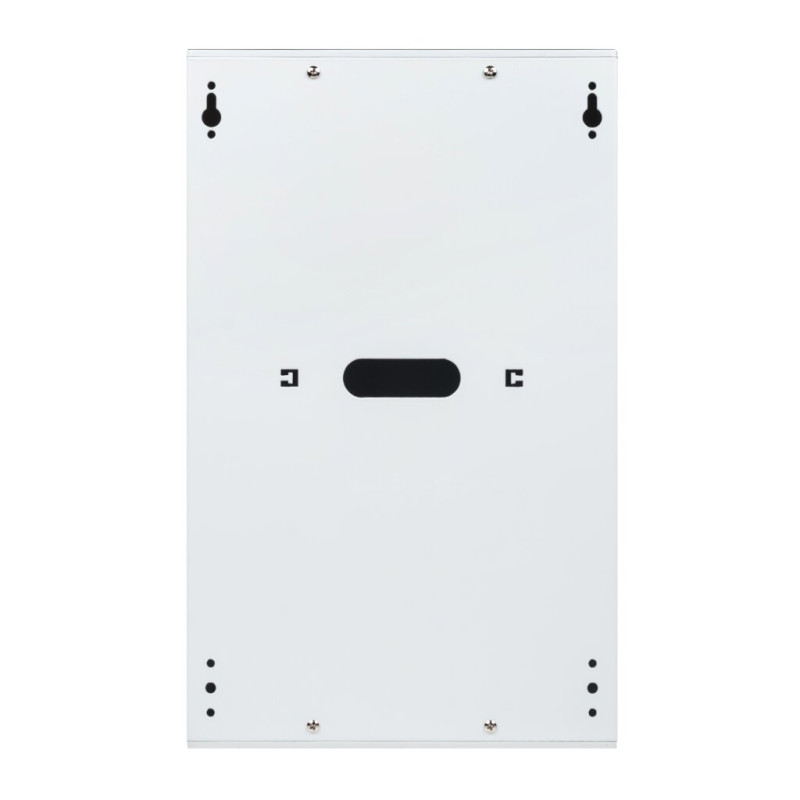

The casing of the GV-009-UPS-A-1203-5A uninterruptible power supply is designed for wall mounting. Dimensions: 90x220x256 mm. Casing color – white.
