Receiver for Radio Equipment TBS CROSSFIRE DIVERSITY NANO RX

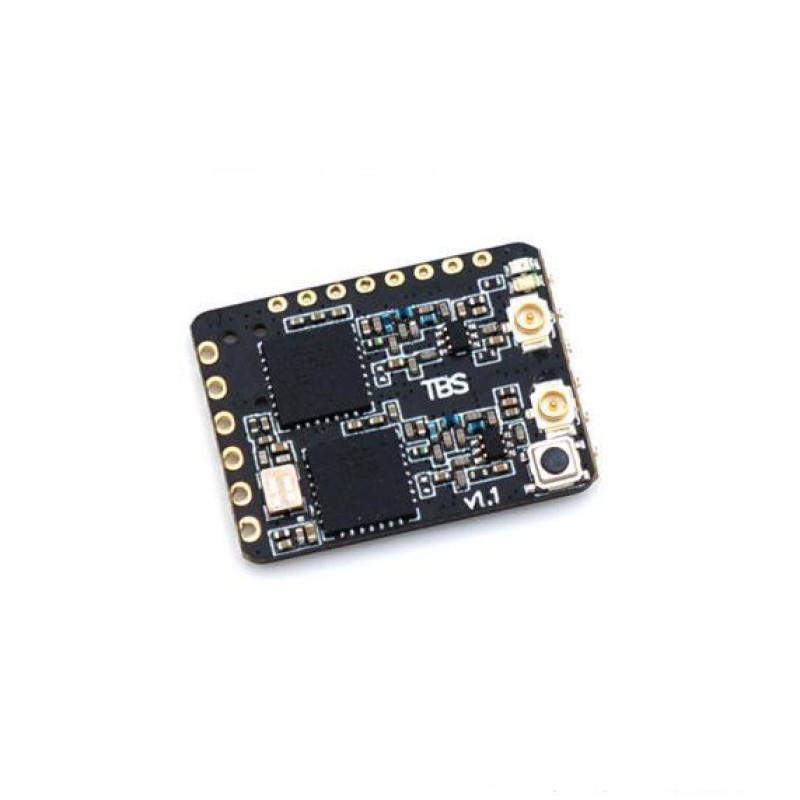

TBS Crossfire Diversity Nano RX — an ultra-compact, full-featured receiver from TBS, designed for sports and professional models: freestyle quadcopters, lightweight racing models, and aircraft with limited space for electronics. This module operates in the 868–915 MHz range and combines minimal dimensions with a set of capabilities necessary for reliable control and telemetry.

Key Advantages

• Compactness and Weight: a size of 24 x 18 mm and a weight of only 1.8 g allow the receiver to be integrated into the smallest frames without significant impact on mass and aerodynamics.
• Wide Range of Protocols: support for PPM, SBUS, CRSF, SmartAudio, MAVLink, Serial Bridge, FLARM enables easy connection of the module to various flight controllers and radio systems.
• Beacon Mode: the built-in beacon function and the ability to connect a backup 1S battery increase the chances of quickly finding the aircraft in case of a crash.
• Connection Reliability: noise reduction technology and dual-channel input ensure stable operation even in environments with interference and dense radio traffic.
• Backup Battery Charging Support: the built-in mechanism allows charging a 1S LiPo while powered by the main source, so the beacon is ready to operate if the main power is disconnected.

Technical Specifications

• Operating Frequency: 868–915 MHz
• Size: 24 x 18 mm
• Weight: 1.8 g
• Input Voltage: 5 V
• Required Firmware: V2.88 or higher

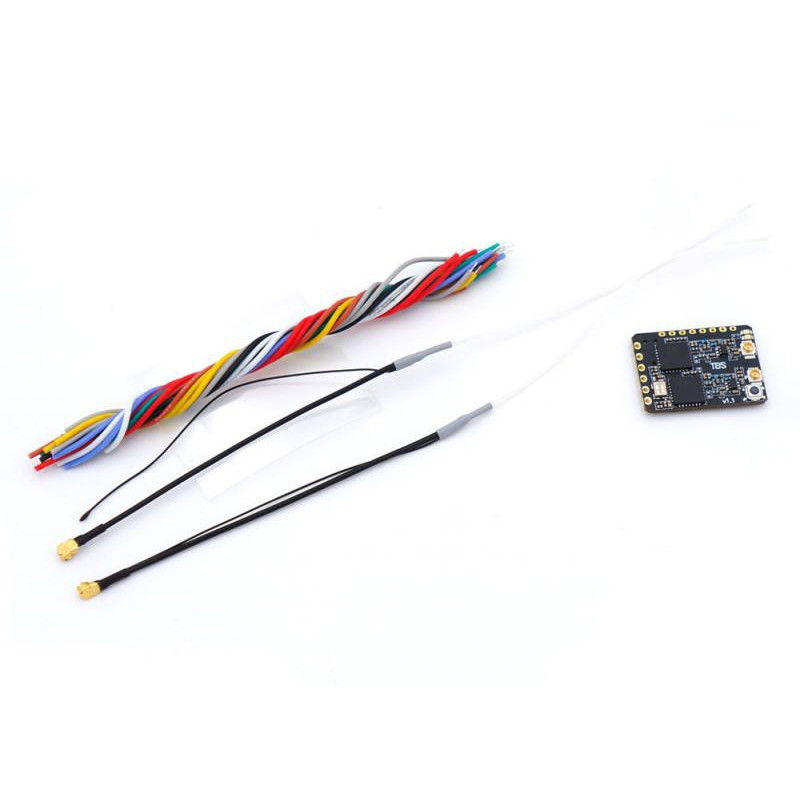

Package Contents

• TBS Crossfire Diversity Nano RX Receiver — 1 pc.
• TBS Crossfire Antennas — 2 pcs.
• Spare Heat Shrink Tube — 1 pc.
• 30AWG Silicone Connection Wires — 14 pcs.

The model is designed for pilots who value small sizes without compromising on capabilities: from extended telemetry to support for modern digital control protocols. Thanks to the included antennas and wire set, module integration into the frame is quick and neat. Beacon mode, a charging mechanism for 1S LiPo, and noise reduction technology make this receiver an optimal choice for competitions and flights in challenging radio conditions.

Manufacturer: TBS. Product Category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Receivers.

Recommended for freestyle pilots, racers, and anyone building lightweight or compact models that require high communication reliability and additional beacon and telemetry functions.
