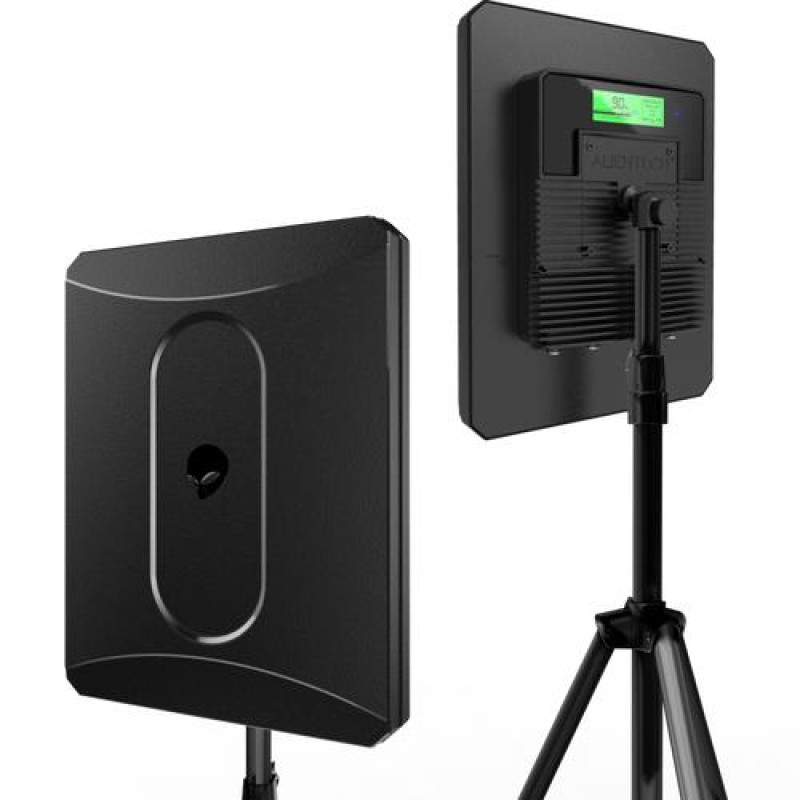

Alientech Deimox Antenna Signal Booster for 915 MHz, 1.2G, 2.4G, 5.2G, 5.8G

The Alientech Deimox is a revolutionary signal booster designed for professional users. It is a reliable solution for users who require interference protection, stable image transmission, and enhanced control capabilities.

Universal Compatibility:

The Alientech Deimox Signal Booster sets a new standard for drone signal amplification. Designed for universal compatibility, it works seamlessly with a wide range of drone brands and models, ensuring professional users can extend their drones' operating range without worrying about specific controller limitations. Deimox is compatible with most modern models, including drones from DJI, Autel, Parrot, as well as any FPV drones.

Advanced Technical Specifications:

Equipped with multi-band functionality, Deimox amplifies operating frequencies of 915 MHz, 1.2 GHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz, catering to diverse drone communication standards. Its operating voltage is 12V, and transmission power is up to 10W, delivered by a high-gain antenna providing a gain of 2.4G>15 dBi±1 and 5G>21 dBi±1. Horizontal beam angles range from 65° to 83°, ensuring broad coverage.

Powerful Signal Amplification:
Deimox boasts a receive and transmit gain of 15 dB ± 1, with a combined gain range of 22.9 dB ± 1 to 39 dB ± 1. This impressive amplification capability ensures stable and clear signal transmission over long distances and in challenging environments, supporting extension cables up to 40 meters in length.

High-Performance Transmission:
Designed for maximum performance, Deimox provides 802.11 ac 6.93 Gbps MIMO OFDM 64QAM BW 80 MHz transmission with an input power range of 5-20 dBm and an EVM of 3% at 28 dBm. It maintains a low noise figure of ≤2.5 dB to reduce interference and efficiently manages power at 435 mA current at 9V. The amplifier's latency is extremely low at ≤1 μs, ensuring real-time response during drone operation.

Robust and Portable:
Deimox is built for outdoor operation in temperatures ranging from -40°C to 80°C, resistant to rain and extreme cold. Its portable design facilitates easy transport and deployment in various operational scenarios. The device is powered by a reliable battery (DC11.1V/15000mA), complemented by a charger with a voltage/current of DC13.5V=8A. For stationary use or extended tasks, an AC power source ranging from 100 to 240V is available, with a maximum consumption of 110W.

Specifications:

• SKU: DMX-09122450DSB
• Operating Frequency Bands: 915MHz(870MHz~960MHz), 1.2GHz(1170MHz~1280MHz), 2.4GHz(2400MHz~2483.5MHz), and 5.8GHz (5100MHz~5850MHz).
• Operating Voltage: 12V
• Maximum Power: 10W
• Antenna Gain: 2.4G>15 dBi±1 / 5G>21 dBi±1
• Horizontal Beam Angle: 65°~83°
• Receive Gain: 15dB±1
• Transmit Gain: 15 dB±1
• Combined Gain Range: 22.9dB±1~39dB±1
• Input Power Range: 5–20 dBm
• Error Vector Magnitude (EVM): 3%@28 dBM 802.11 ac 6.93Gbps MIMO OFDM 64QAM BW 80 MHZ
• Electric Current: 435 mA at POUT 28 dBm 9V
• Noise Figure: ≤ 2.5 dB
• Transmission Latency: ≤ 1 μs
• Battery Voltage/Capacity: DC11.1V/15000mA
• Charging Current: DC13.5V=8A
• Charger Power: 100V~240V
• Maximum Consumption: 110W
• Temperature: -40°C~80°C

Antenna Gain and Angle:

The Deimox power amplifier antenna features multiple high-gain antennas, including one set of 915 MHz antenna, one set of 1.2 GHz antenna, two sets of 4-element 2.4 GHz antennas, and two sets of 12-element full-band 5G antennas (applicable range: 5.1 GHz-5.9 GHz). The gain of the 915 MHz and 1.2 GHz antennas can reach 8 dBi, the 2.4 GHz antenna gain is 15 dBi, and the 5 GHz antenna gain can reach an impressive 20 dBi. Additionally, all standing wave ratios can be below 1.3 dB.
Deimox also features four sets of single/dual-frequency 5-watt power amplifiers, which provide a more powerful signal source for the antenna while optimizing the antenna design, effectively combating various interferences.

Extension Cables

Deimox can also be used with coaxial cables. Through calculations, we have prepared coaxial cables of various lengths for you to achieve your goal. The length of these cables is selected based on the specific performance and physical characteristics of the cable. The maximum length can be up to 35 m.

Connectors: N-J / QMA FEMALE / MALE with locking capability

Cable Type: RG223/CG240/RG8

Flexible coaxial cable, 50 Ohm type RG223/CG240/RG8

Applicable Standard: MIL-C-17

Electrical Characteristics

Mechanical and Environmental Characteristics

Attenuation (typical value at 25C and sea level)
