Happymodel Moxon 2.4G SMA Antenna from Happymodel is a compact and effective solution for enhancing radio communication in drones, FPV systems, automotive, and stationary wireless devices. This antenna is specifically designed for operation in the 2.4 GHz band and combines the directivity of a Moxon-type antenna with a practical SMA connector for quick connection to transmitters and receivers.
Key Advantages at a Glance
- Operating Frequency: 2.4 GHz (2400.0 MHz) — compatible with a wide range of radio systems, Wi-Fi, and Bluetooth devices.
- Antenna Type: Moxon — optimal directivity and increased gain in the desired direction.
- Connector: SMA (SubMiniature version A) — standard connector for most modules and transmitters.

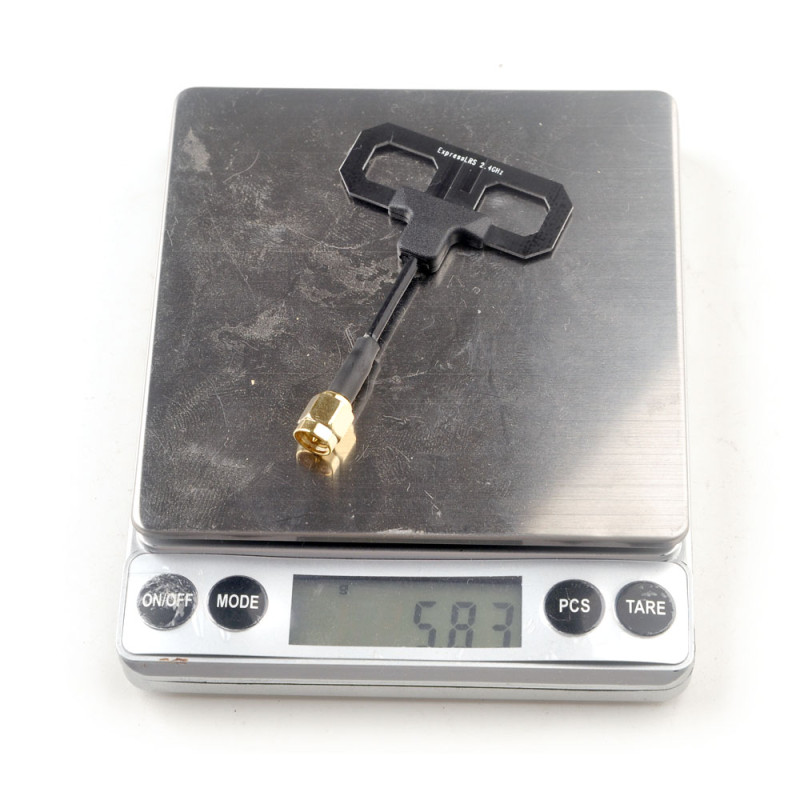

- Lightweight and Compact Design: weight 5.83 g, dimensions 69 × 45 mm — minimal load on the drone's structure.
- Universal Application: ideal for radio control, FPV flights, and other unmanned systems.
- Manufacturer: Happymodel — a trusted brand in radio control and modeling.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency (MHz) | 2400.0 |
| Efficiency Coefficient (dBi) | -2.94 |
| Gain (dBi) | 4.18 |
| Efficiency Coefficient (%) | 50.77 |
| Directivity (dB) | 7.12 |
| Maximum Gain Position (Theta) | 0.00 |
| Maximum Gain Position (Phi) | 270.00 |
| Weight (g) | 5.83 |
| Dimensions (length × width, mm) | 69 × 45 |
| Connector Type | SMA |
The Moxon antenna provides directional signal reception and transmission, which helps reduce noise and interference from the sides and rear of the antenna. Thanks to its design and increased gain (4.18 dBi), you will get more stable and longer-range communication compared to standard dipole antennas. The presented values for efficiency coefficient and directivity will help assess the antenna's actual performance in your usage conditions.
Application and Compatibility

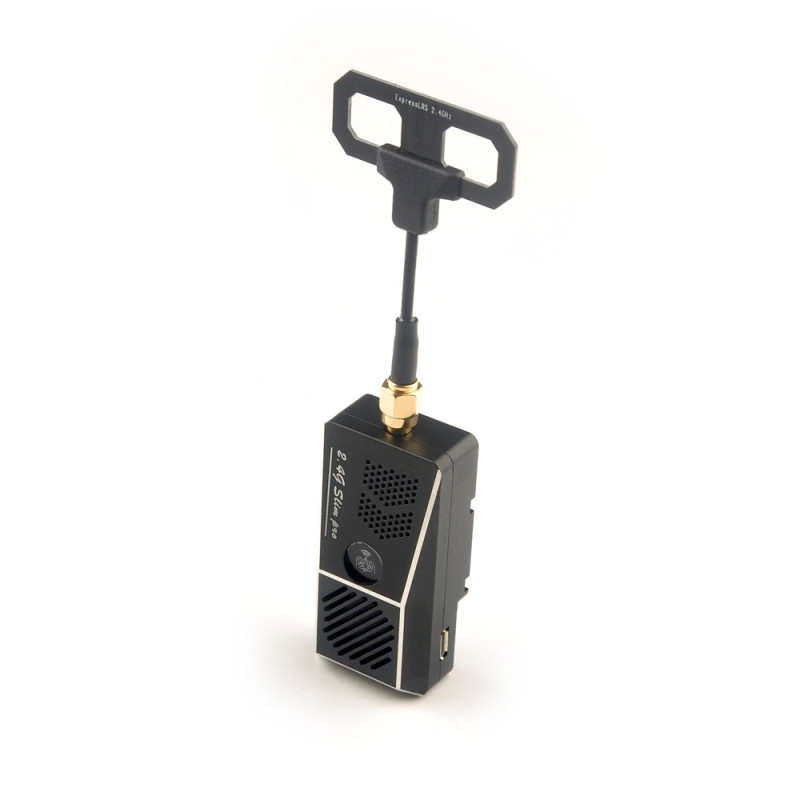

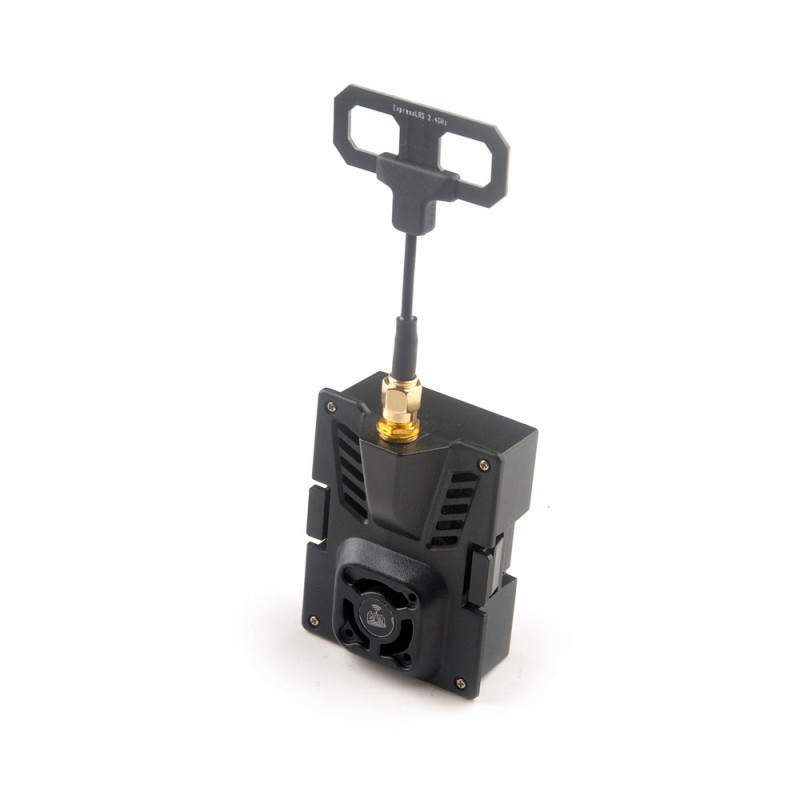

The Happymodel Moxon 2.4G SMA is designed for a wide range of tasks in modeling and radio control: drones, quadcopters, FPV video systems, radio modules for transmitters and receivers in the 2.4 GHz band. The SMA connector simplifies integration with most modern modules, making antenna replacement or upgrade quick and reliable.
Package Contents
Happymodel 2.4 GHz Moxon Antenna x1 pc.
Product Category: Drones and Quadcopters > Drone Components > Drone Spare Parts > Drone Antennas. If you are looking for a reliable, lightweight, and directional antenna to improve the performance of your radio equipment, the Happymodel Moxon 2.4G SMA will be an excellent choice, combining compactness, ease of connection, and technical characteristics that both amateurs and professionals will appreciate.
