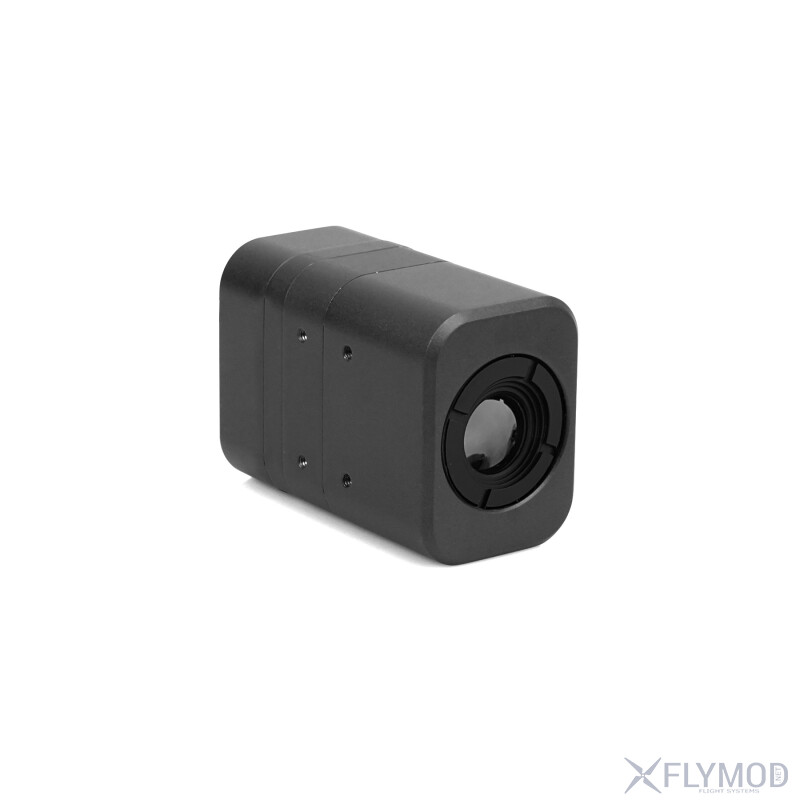

Analog thermal cameras models IRC-384CA and IRC-640CA with resolutions of 384x288 and 640×512 respectively. In a compact body and concise design.

Specifications

• Detector type: Uncooled vanadium oxide
• Resolution:
  • 384CA: 384×288@12μm
  • 640CA: 640×512@12μm
• Wavelength range: 8~14μm
• NETD (Noise Equivalent Temperature Difference): ≤40mK @F1 25°C
• Frame rate: 50 Hz
• Power consumption: up to 1.5W
• Video format: PAL
• Power supply voltage: 5 to 16 V
• Lens:
  • 384CA: F1.0/ 4.0 mm
  • 640CA: F1.0/ 9.1 mm
• Operating temperature range: -20°C to 60°C
• Dimensions: 27x37x40 mm
• Weight (without cables):
  • 384CA: 74.0 g
  • 640CA: 60.5 g

Package contents

• 1x camera 384CA /640CA
• 1x 3-pin JST-SH1.25 cable
