Product Code: FA94-20904-94
10 125 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10–80%
Balancer Type: Passive 30±5 mA
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 640
Cell connection diagram: 4S1P
All specifications
We will deliver this product:
Payment
Description

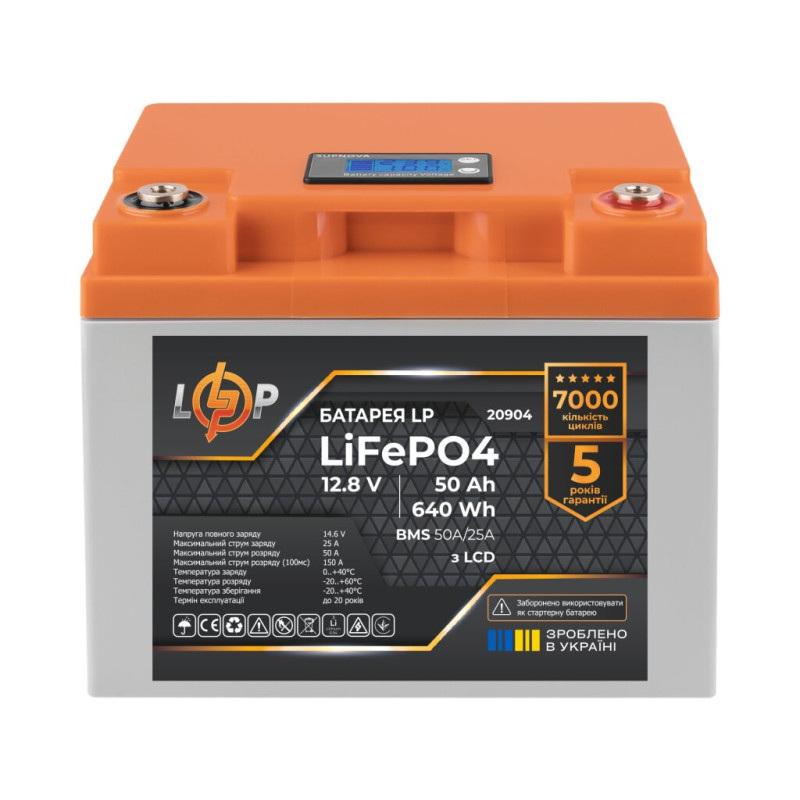

New generation LiFePO4 batteries have high efficiency (up to 94%) and a wide operating temperature range (-15 ~ +60°C).

LiFePO4 batteries charge quickly and have compact dimensions.

The battery is equipped with an LCD indicator, which displays the charge level.

To save battery power, the indicator can be turned off.

As an energy storage system, the lithium battery has a high level of environmental friendliness and a wide range of applications.

Compared to lead-acid batteries, LiFePO4 batteries have a longer service life (25 times), while being 2 times lighter than lead-acid batteries and having a high current output. This type of battery is non-flammable and non-toxic.

LiFePO4 batteries have a very low self-discharge, 20% of capacity, when stored for more than 10 years.

If you need a battery and don't know which one is best, choose lithium iron phosphate batteries from LogicPower.

ATTENTION!

The LP 12.8V - 50 Ah (640Wh) (BMS 50A/25A) plastic battery with LCD is prohibited for use as a starter battery in cars! It is not recommended to connect to UPS!

Quality guarantees and technical support

LogicPower LiFePO4 batteries are manufactured in Ukraine using the technologies of leading global manufacturers of lithium batteries.

Specifications
Ambient humidity, %(RH) 10–80%
Balancer Type Passive 30±5 mA
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 640
Cell connection diagram 4S1P
Cell type Prismatic
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 13.6
Charging voltage (cyclic mode), V 14.6
Communication interface out of stock
Discharge operating temperature, °C -4 ~ +140
Height, mm ** 170
Housing material plastic
Length, mm ** 200
Maximum charge current, A 25
Maximum discharge current, A 50
Minimum voltage, V 10.5
Nominal capacity, Ah 50
Nominal charging current, A 25
Nominal values of elements 50
Nominal voltage, V 12 (12.8)
Number of cycles 7000
Overall dimensions (LxWxH), mm * 200*165*170
Peak Discharge Current, A 150 (100ms)
Protection level IP54
Recommended low voltage cutoff, V 11.2
Reconnecting charge voltage, V 14.2
Reconnection discharge voltage, V 10.6
Short-circuit current, A 80
Terminal type T6 (for M8 bolt)
Type LiFePO4
Volume, m³ 0.00561
Warranty, months 60
Weight, kg 5.4
Width, mm ** 165
