Product Code: FA94-24410-94
113 715 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10~80%
Balancer Type: Passive
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 8192
Cell connection diagram: 16S1P
All specifications
We will deliver this product:
Payment
Description

New generation LiFePO4 batteries have high efficiency (up to 94%) and a wide operating temperature range (-15 ~ +60°C).

LiFePO4 batteries charge quickly and have compact dimensions.

As an energy storage system, a lithium battery has a high level of environmental friendliness and a wide range of applications.

Compared to lead-acid batteries, LiFePO4 batteries have a longer service life (25 times longer), while being 2 times lighter than lead-acid batteries and having a high current output. This type of battery is non-flammable and non-toxic.

LiFePO4 batteries have a very low self-discharge, 20% of capacity, when stored for over 10 years.

If you need a battery and don't know which one is best, choose lithium iron phosphate batteries from LogicPower.

ATTENTION!

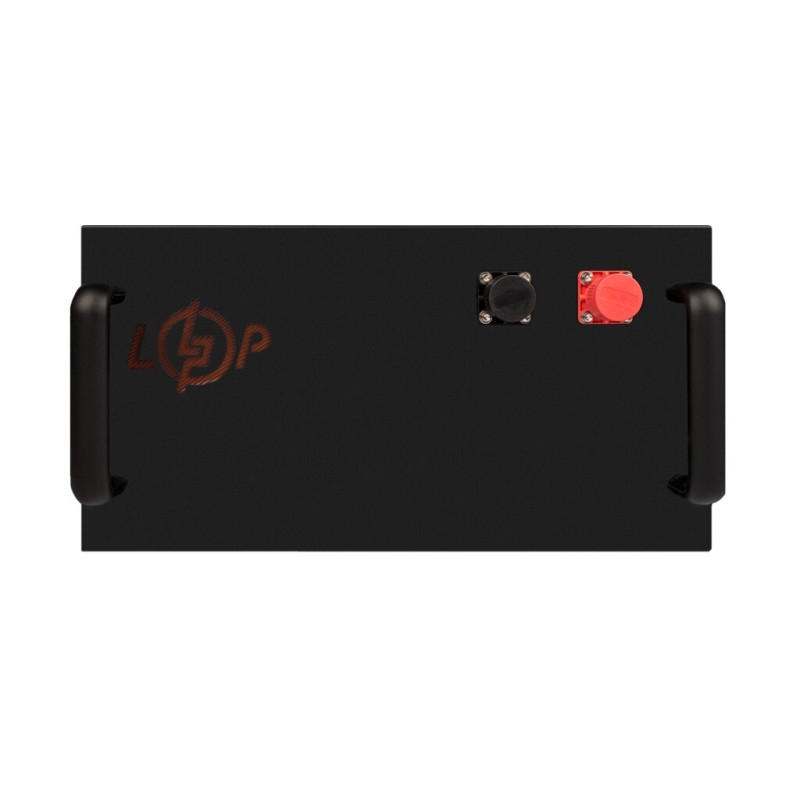

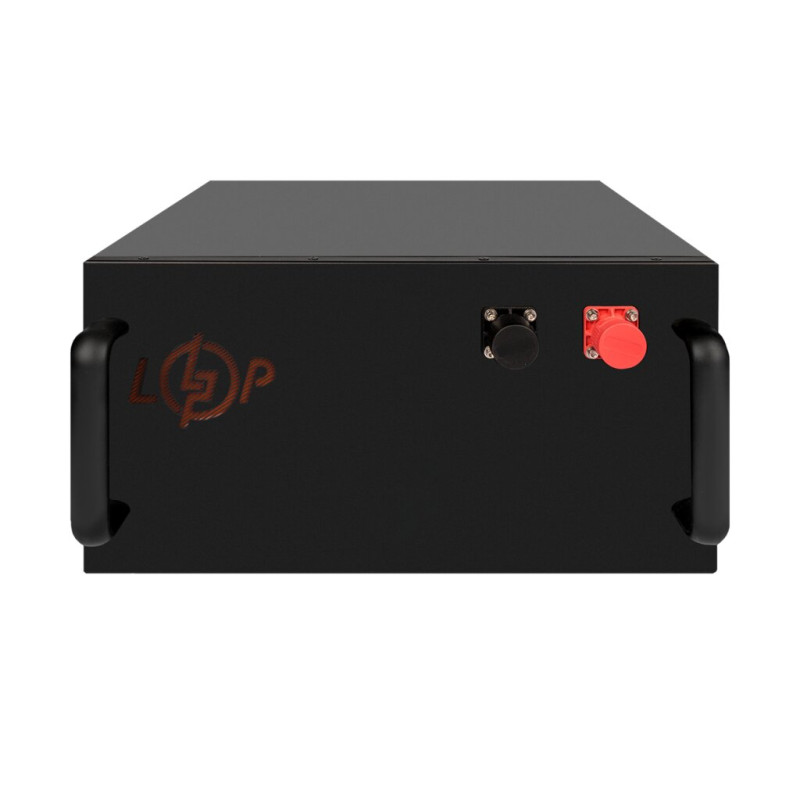

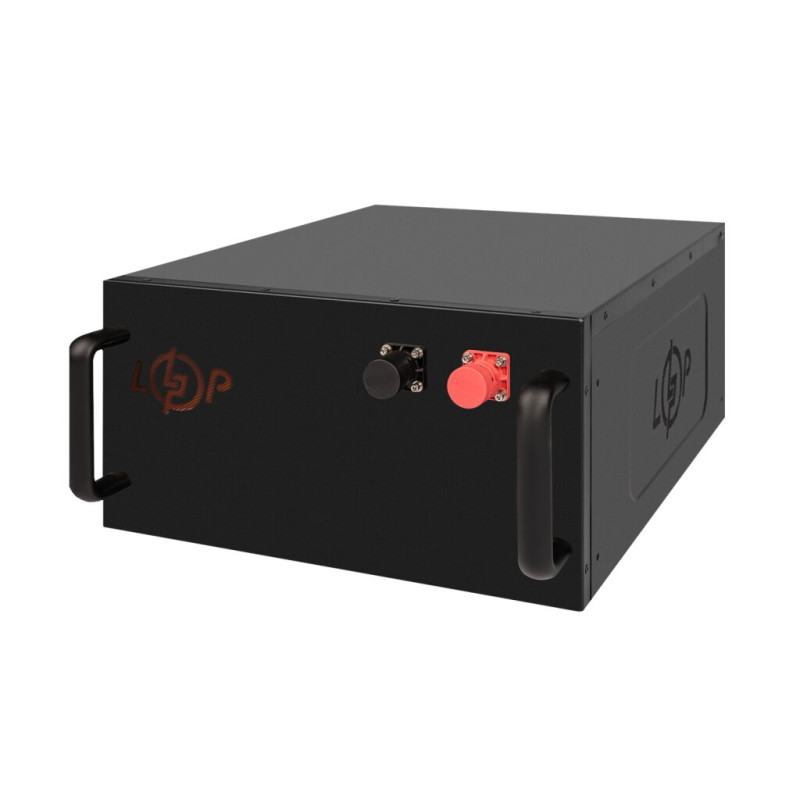

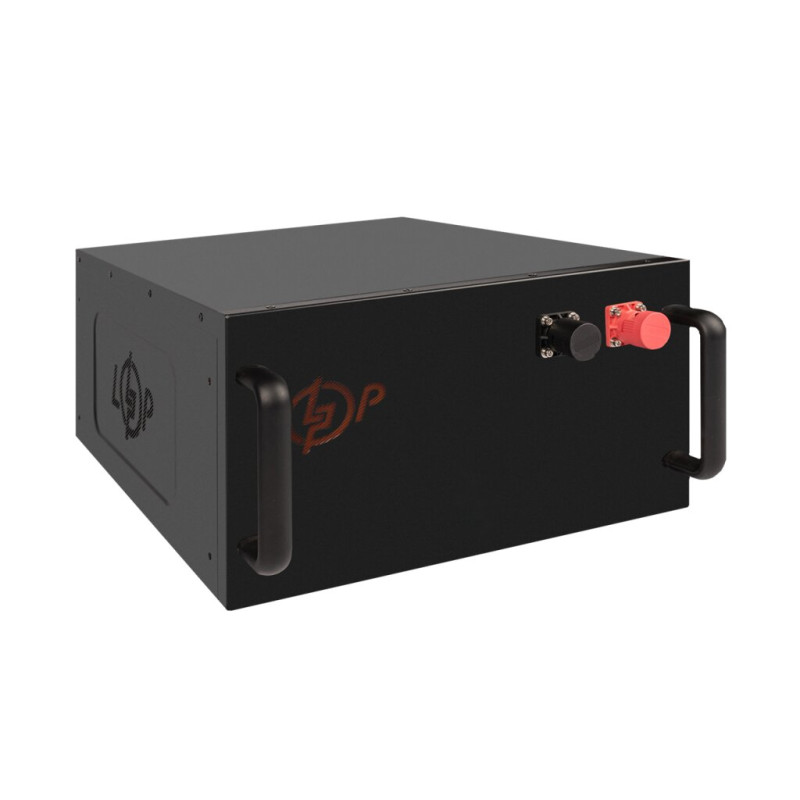

The LP 51.2V - 160 Ah (8192Wh) (BMS 150A/75A) metal RM battery is prohibited for use as a starter battery in vehicles! It is not recommended to connect to UPS!

Quality guarantees and technical support

LogicPower LiFePO4 batteries are manufactured in Ukraine using technologies from leading global manufacturers of lithium batteries.

Specifications
Ambient humidity, %(RH) 10~80%
Balancer Type Passive
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 8192
Cell connection diagram 16S1P
Cell type Prismatic
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 54.4
Charging voltage (cyclic mode), V 58.4
Communication interface Bluetooth (RS485 Optional)
Discharge operating temperature, °C -20 ~ +60
Height, mm ** 230.5
Housing material metal
Length, mm ** 510.5
Maximum charge current, A 75
Maximum discharge current, A 150
Minimum voltage, V 42
Nominal capacity, Ah 160
Nominal charging current, A 75
Nominal values of elements 160
Nominal voltage, V 51.2
Number of cycles 7000
Peak Discharge Current, A 300 (100ms)
Protection level IP20
Recommended low voltage cutoff, V 44.8
Reconnecting charge voltage, V 56.8
Reconnection discharge voltage, V 42.4
Short-circuit current, A 300
Starting current, A 300

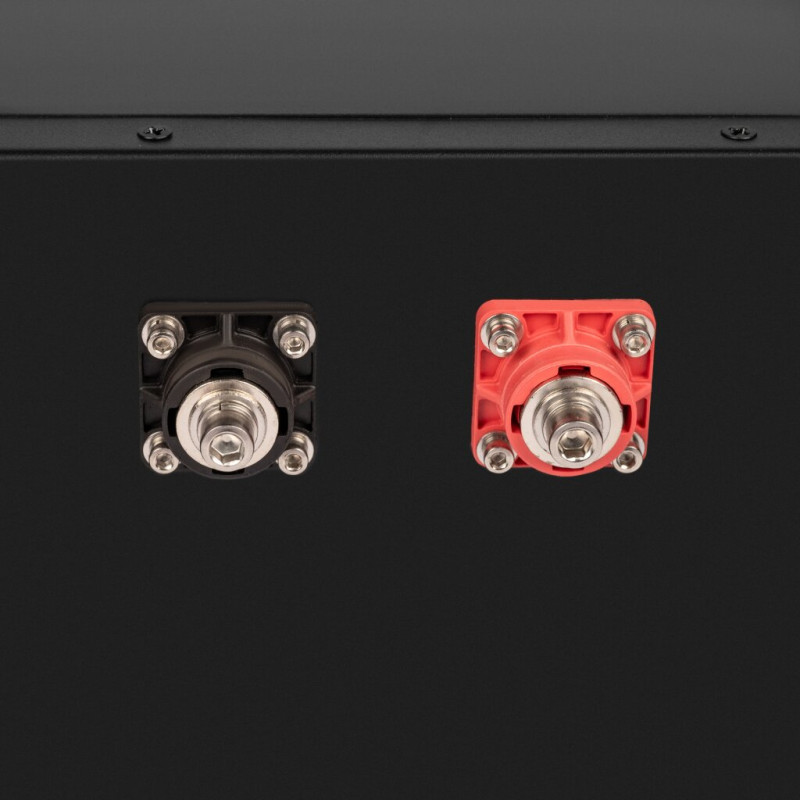

Terminal type T11 (for M8 bolt)
Type LiFePO4
Warranty, months 60
Weight, kg 54
Width, mm ** 442.4
