UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery
The LogicPower backup power kit has been developed and put into operation to provide uninterrupted power to electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.
The uninterruptible power supply with pure sine wave, with a power of 2500/1800 VA/W, performs 2 main functions: voltage stabilization (input - 140-275, output - 220±10%V) and conversion of DC from the battery to an AC 220V source. The UPS system is microprocessor-controlled. The battery provides power in backup mode.
The uninterruptible power supply system for an apartment - the UPS+battery kit - is equipped with a GEL-type battery.
Connection Diagram for UPS + Battery Backup Power Kit
220V power grid – uninterruptible power supply with external battery – power consumer.
- UPS connection to the grid – standard Euro plug
- Battery connection type – terminals
- Power consumer connection type – standard Euro socket
The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

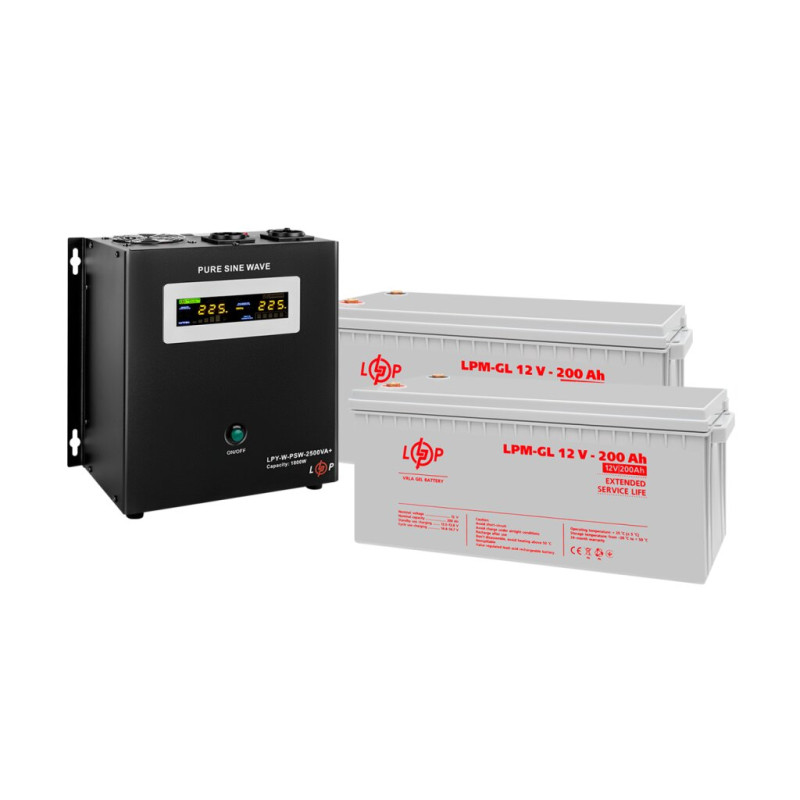

The kit includes:
-

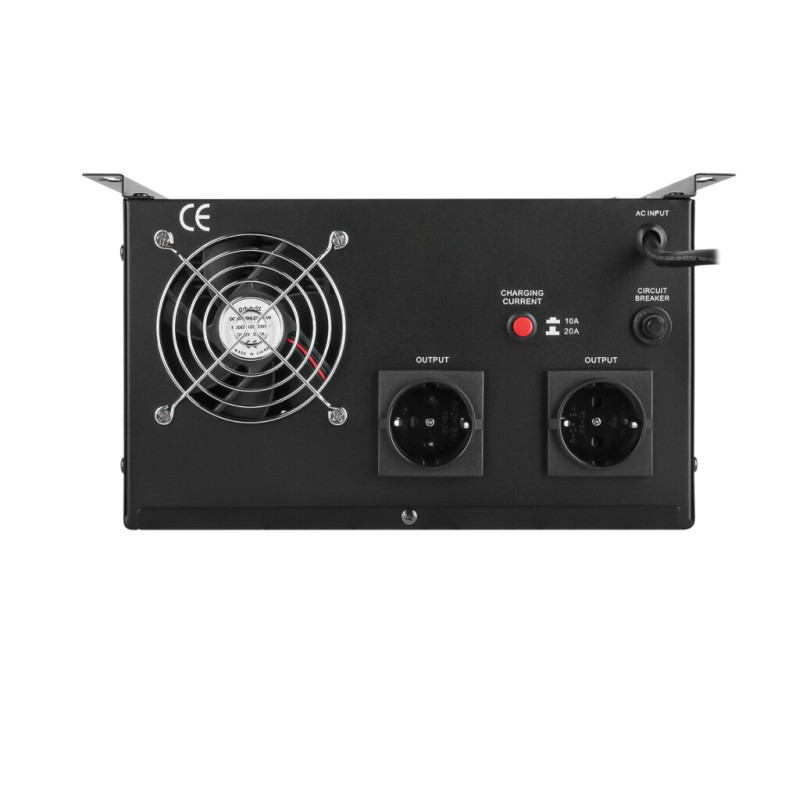

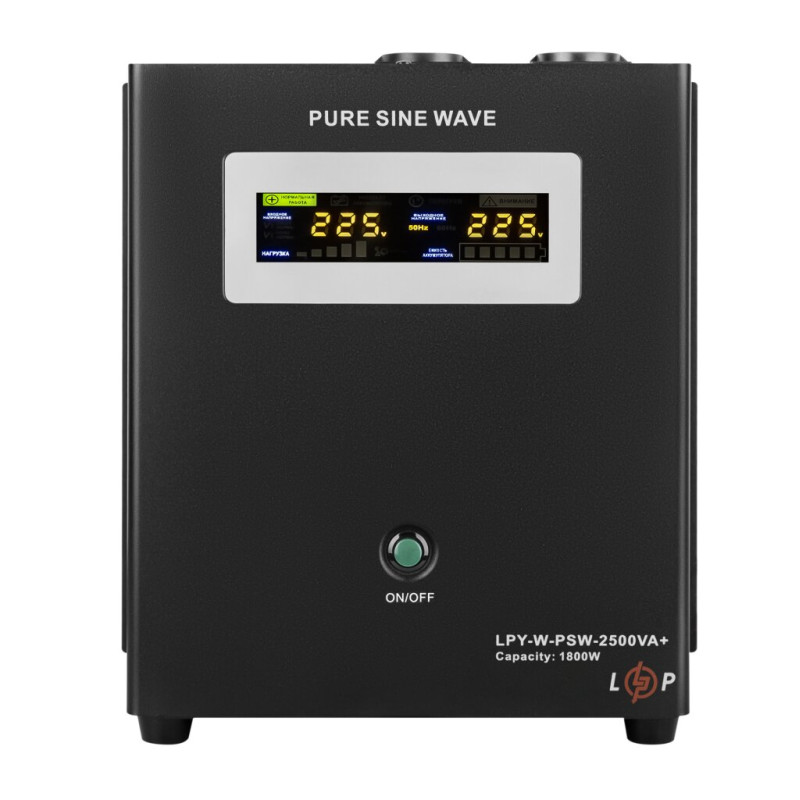

UPS with pure sine wave 24V LPY-W-PSW-2500VA+(1800W)10A/20A - 1 pc.
-

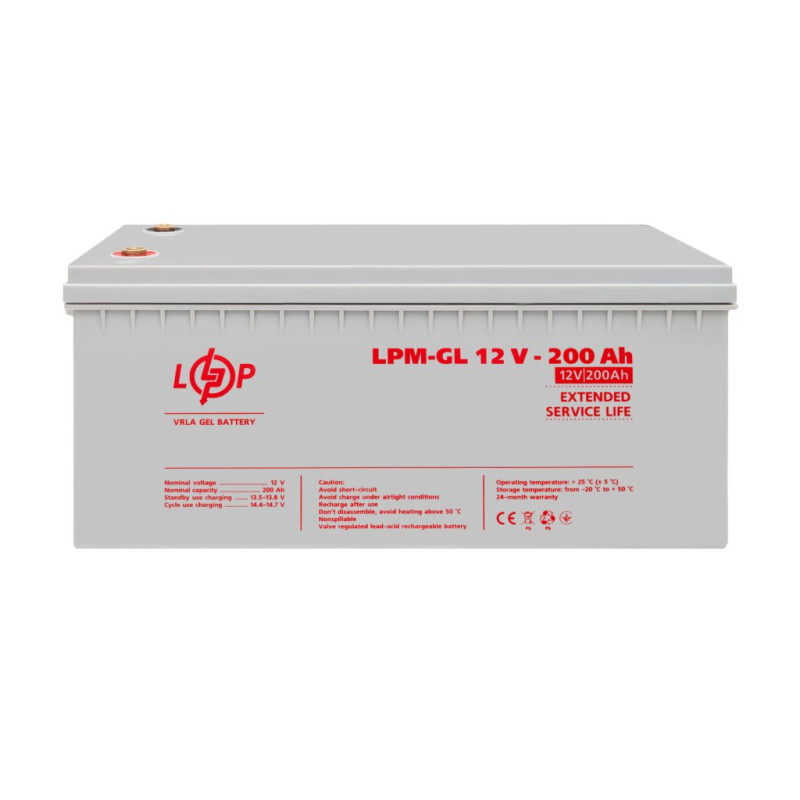

GEL battery LPM-GL 12V-200 Ah - 2 pcs.
