Product Code: FA94-20899-94
10 125 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10–80%
Balancer Type: Passive 30±5 mA
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 640
Cell connection diagram: 4S1P
All specifications
We will deliver this product:
Payment
Description

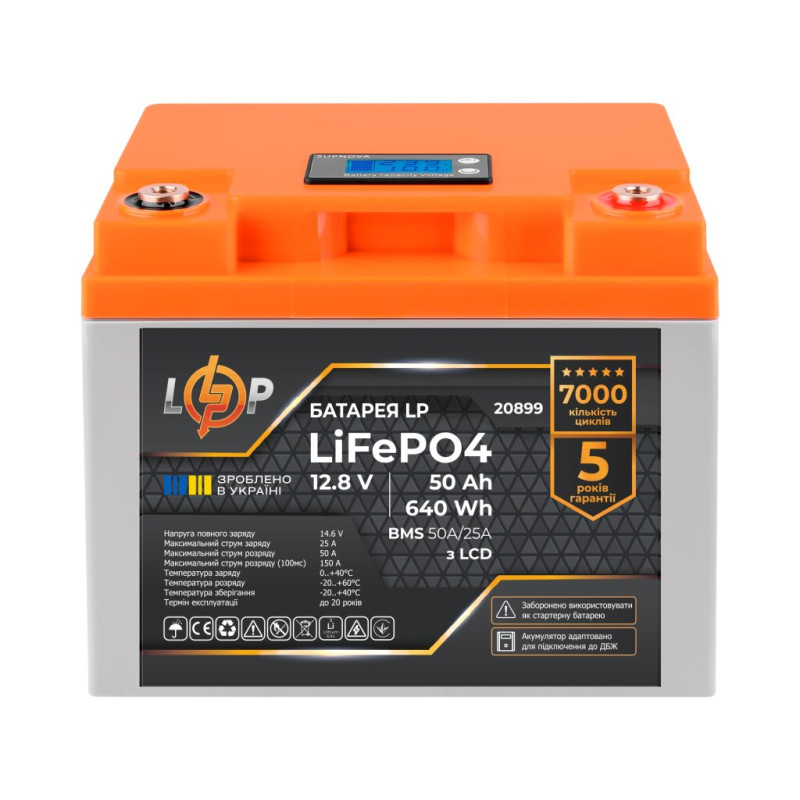

New generation LiFePO4 batteries have high efficiency (up to 94%), low self-discharge, and a wide operating temperature range (-15 ~ +60°C).

LiFePO4 batteries charge quickly and have compact dimensions.

The battery is equipped with an LCD indicator, which displays the charge level.

To save battery charge, the indicator can be turned off.

All of the above makes LiFePO4 indispensable for those looking for the best lithium battery for UPS.

The operating principle of a UPS with an external battery is built in such a way that when electricity disappears from the main grid, the battery delivers its accumulated capacity to the consumer (the battery discharges), and then, after power is restored to the grid, the UPS automatically charges the battery.

Practical application has shown that the universal LiFePO4 battery is not compatible with all types of UPS. Most standard uninterruptible power supplies "do not see" a discharged lithium battery and, as a result, do not charge it.

If you need a battery for a UPS and you don't know which one is better, choose lithium iron phosphate batteries for your UPS from LogicPower.

LogicPower technical specialists have developed and implemented a unique circuit that allows all modifications of uninterruptible power supplies to charge LiFePO4 batteries without problems.

ATTENTION! The 12.8V - 50 Ah (640Wh) (BMS 50A/25A) plastic battery for UPS with LCD is prohibited for use as a starter battery in cars and other vehicles!

Quality Guarantees and Technical Support

LogicPower batteries for uninterruptible power supplies are manufactured in Ukraine using the technologies of leading global manufacturers of lithium batteries.

Specifications
Ambient humidity, %(RH) 10–80%
Balancer Type Passive 30±5 mA
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 640
Cell connection diagram 4S1P
Cell type Prismatic
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 13.6
Charging voltage (cyclic mode), V 14.6
Communication interface out of stock
Discharge operating temperature, °C -4 ~ +140
Height, mm ** 170
Housing material plastic
Length, mm ** 200
Maximum charge current, A 25
Maximum discharge current, A 50
Minimum voltage, V 10.5
Nominal capacity, Ah 50
Nominal charging current, A 25
Nominal values of elements 50
Nominal voltage, V 12 (12.8)
Number of cycles 7000
Overall dimensions (LxWxH), mm * 200*165*170
Peak Discharge Current, A 150 (100ms)
Protection level IP54
Recommended low voltage cutoff, V 11.2
Reconnecting charge voltage, V 14.2
Reconnection discharge voltage, V 10.6
Short-circuit current, A 80
Terminal type T6 (for M8 bolt)
Type LiFePO4
Volume, m³ 0.00561
Warranty, months 60
Weight, kg 5.4
Width, mm ** 165
