Product Code: FA94-38306-94
2 363 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10~80%
Balancer Type: External
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 140
Cell connection diagram: 3S3P
All specifications
We will deliver this product:
Payment
Description

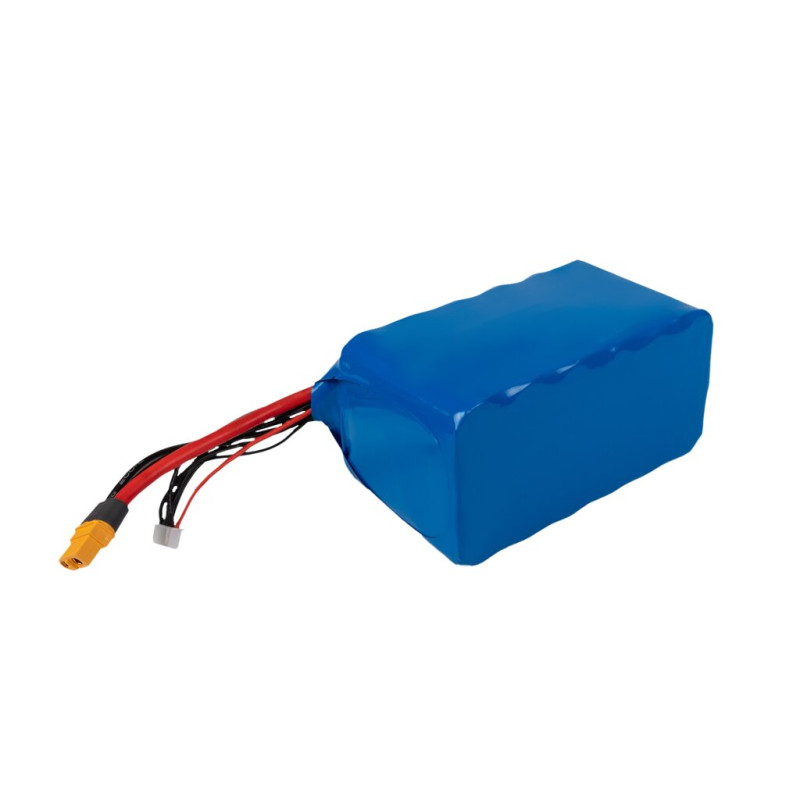

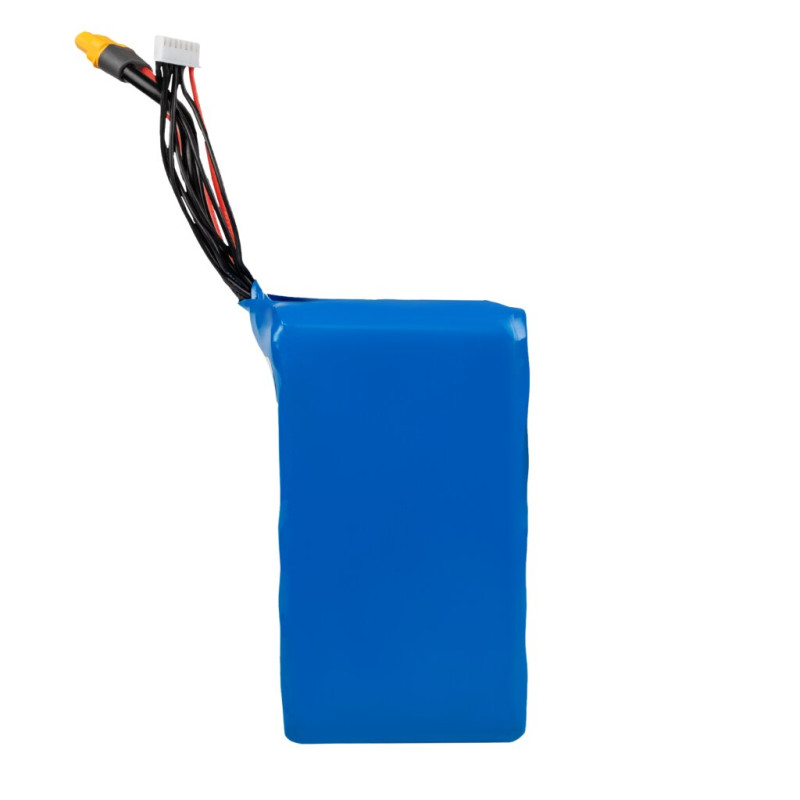

Li-ion Battery 11.1V 12600 mAh (140Wh) 90A Molicel High-Current 3S3P is a high-quality and reliable power source that will ensure stable and long-lasting operation of your devices.

It has a nominal voltage of 11.1V and a capacity of 12600 mAh (140 Wh), made with Molicel INR-21700-P42A cells.

The type of welding plate connecting the battery sections is made of copper, which allows for reduced contact resistance and energy loss compared to using nickel conductors.

Applications: This battery is ideal for use in various applications, such as:

  • Electric transport (e-bikes, e-scooters, skateboards).
  • Drones and RC models.
  • Professional and household power tools.
  • Solar and backup power systems.
  • DIY devices.

Recommendations for using the battery pack:

Use only with compatible chargers.

Avoid complete discharge and overcharge of the battery.

Store in a dry and cool place, away from direct sunlight.

Specifications
Ambient humidity, %(RH) 10~80%
Balancer Type External
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 140
Cell connection diagram 3S3P
Cell type Cylindrical
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 12
Charging voltage (cyclic mode), V 12.6
Communication interface out of stock
Discharge operating temperature, °C -4 ~ +140
Housing material Heat shrink film
Maximum charge current, A 12
Maximum discharge current, A 60
Minimum voltage, V 8.4
Nominal capacity, Ah 12.6
Nominal charging current, A 6
Nominal values of elements 4.2
Nominal voltage, V 11.1
Peak Discharge Current, A 90 (100ms)
Protection level IP40

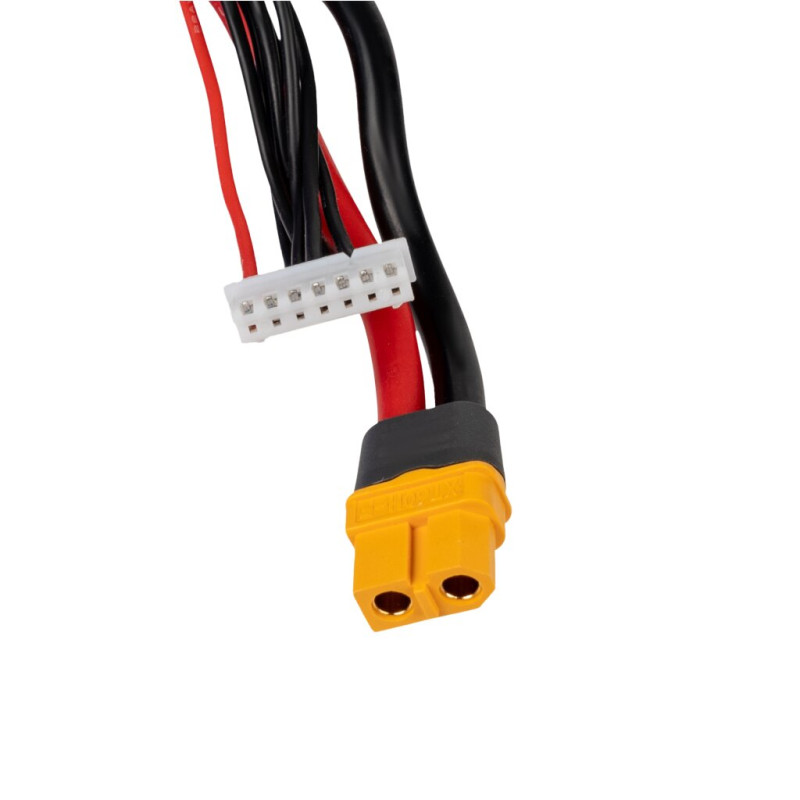

Terminal type XT60
Type Li-ion
Warranty, months 24
