Product Code: FA94-23542-94
99 563 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10~80%
Balancer Type: Active up to 2A
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 11776
Cell connection diagram: 16S1P
All specifications
We will deliver this product:
Payment
Description

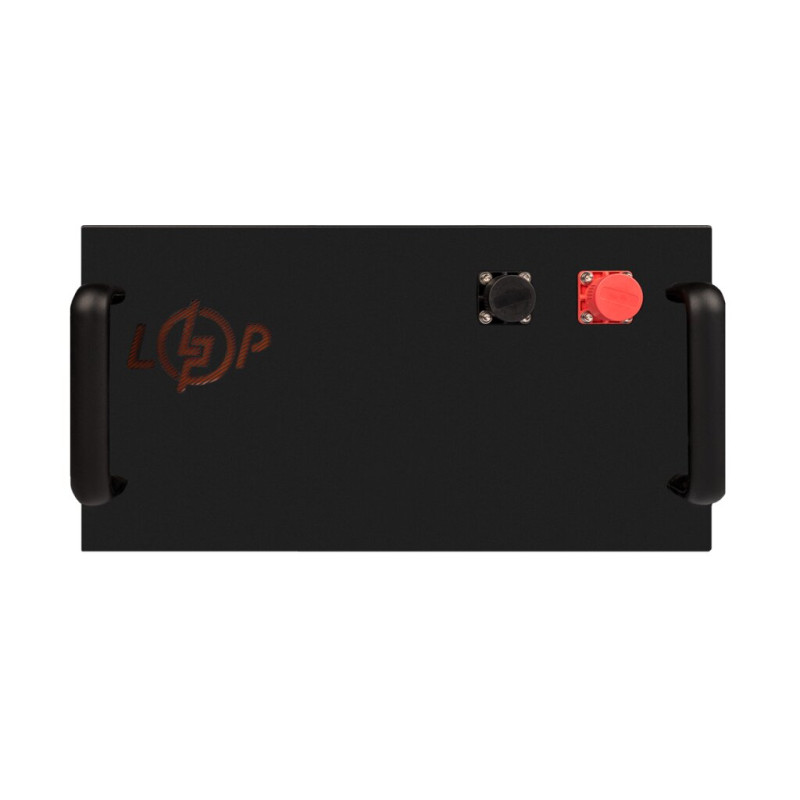

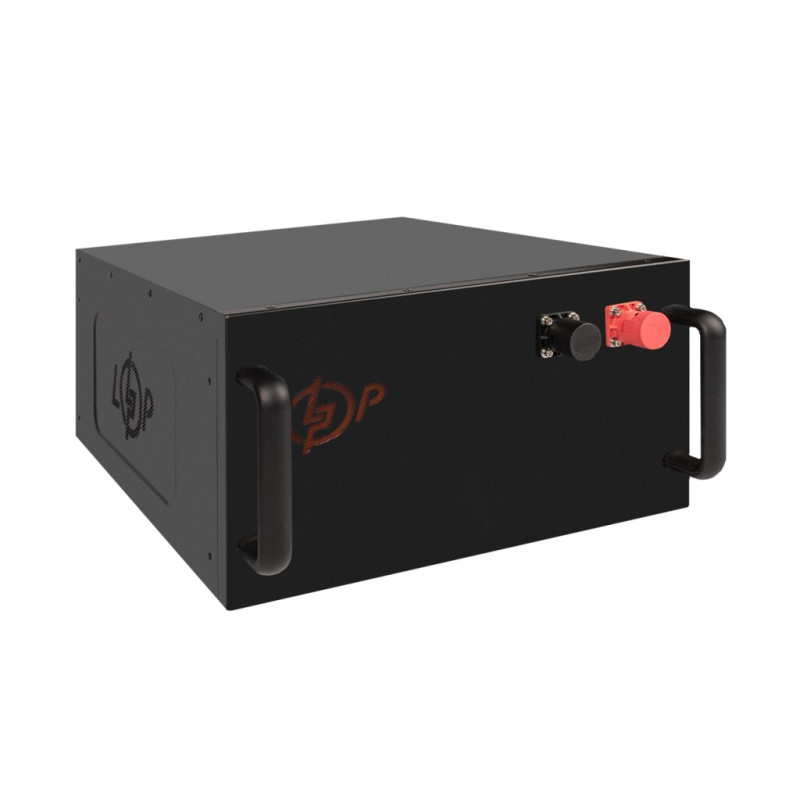

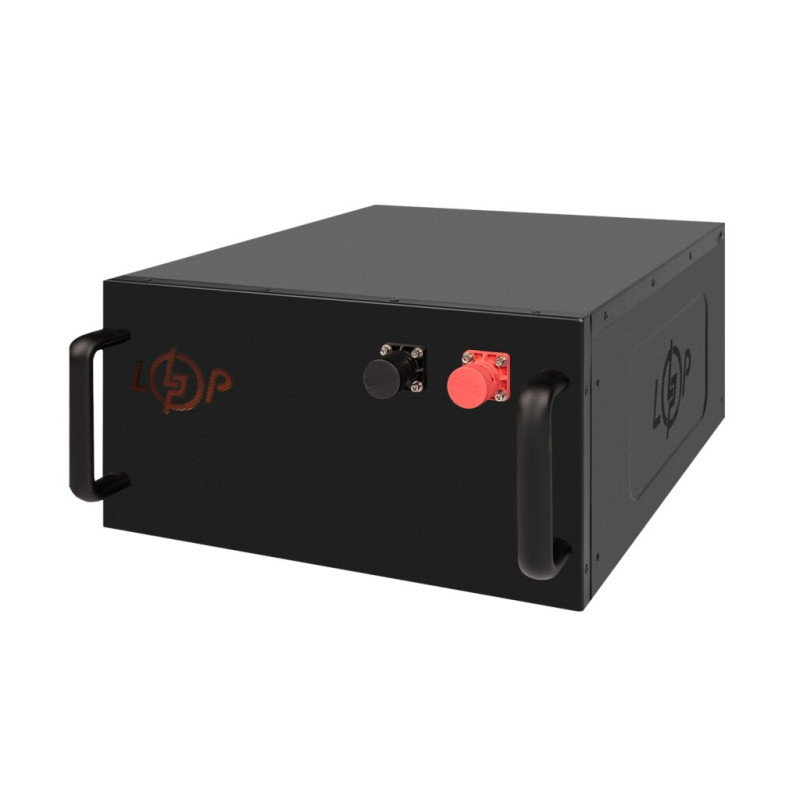

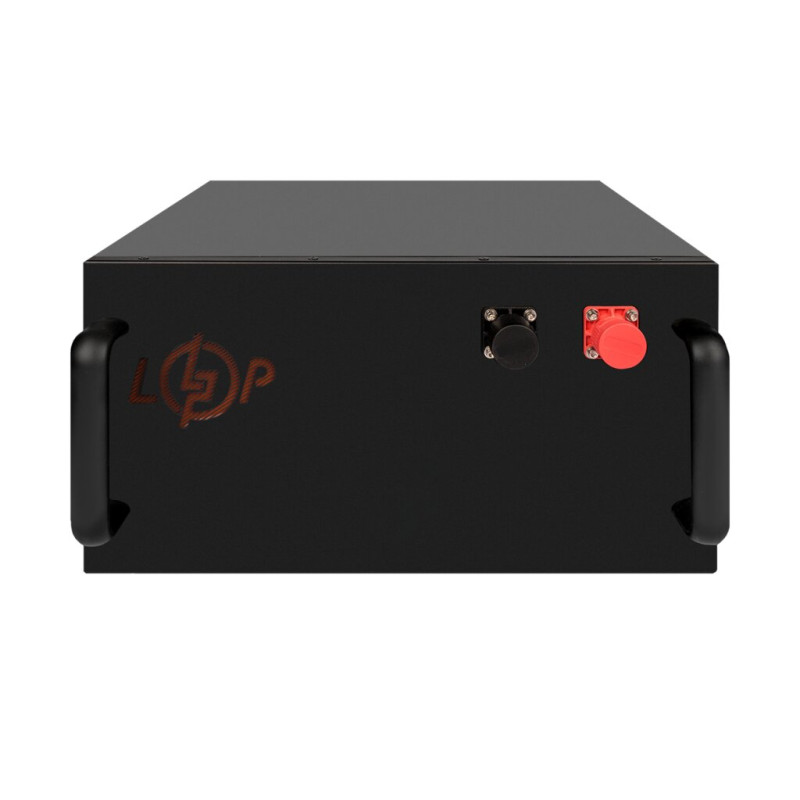

LiFePO4 SMART BMS Bluetooth Battery

New generation lithium iron phosphate (LiFePO4) batteries with a unique BMS board are the most efficient and safest batteries for domestic and industrial uninterruptible power supply systems.

The intelligent BMS board is a programmable management system for lithium iron phosphate (LiFePO4) batteries.

Buy a Smart LiFePO4 battery in Ukraine: where can they be used?

  • Electric forklifts, floor scrubbers, lawnmowers, and other special equipment
  • Backup and uninterruptible power supply systems for homes, offices, warehouses, production, etc.
  • Solar power plants and other alternative energy sources
  • Portable charging stations for mobile phones, laptops, drones, etc.

BMS intelligent protection board, active balancer, Bluetooth: how does it help increase efficiency and extend the service life of lithium batteries?

SMART BMS Bluetooth boards can be used in lithium batteries with different chemical properties: lithium iron phosphate, lithium-ion, lithium polymer, etc.

Dual-layer hardware and software protection provides high protective potential during battery charging and discharging:

  • overcharge
  • low charge protection
  • high or low temperature protection
  • overcurrent protection
  • short circuit protection, etc.

Active balance function for efficient automatic battery charging and maintaining the same voltage on each cell.

The battery can be used both as part of a UPS and with any load-compatible device.

The internal temperature sensor provides triple control of the battery's operating temperature.

Bluetooth - always relevant and timely information about the battery status:

  • battery charge level control
  • battery operating status control
  • battery capacity control
Specifications
Ambient humidity, %(RH) 10~80%
Balancer Type Active up to 2A
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 11776
Cell connection diagram 16S1P
Cell type Prismatic
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 54.4
Charging voltage (cyclic mode), V 58.4
Communication interface Bluetooth (RS485 Optional)
Discharge operating temperature, °C -20 ~ +60
Height, mm ** 235
Housing material metal
Length, mm ** 570
Maximum charge current, A 100
Maximum discharge current, A 150
Minimum voltage, V 42
Nominal capacity, Ah 230
Nominal charging current, A 100
Nominal values of elements 230
Nominal voltage, V 51.2
Number of cycles 7000
Peak Discharge Current, A 300 (100ms)
Protection level IP20
Recommended low voltage cutoff, V 44.8
Reconnecting charge voltage, V 56.8
Reconnection discharge voltage, V 42.4
Short-circuit current, A 300
Starting current, A 300

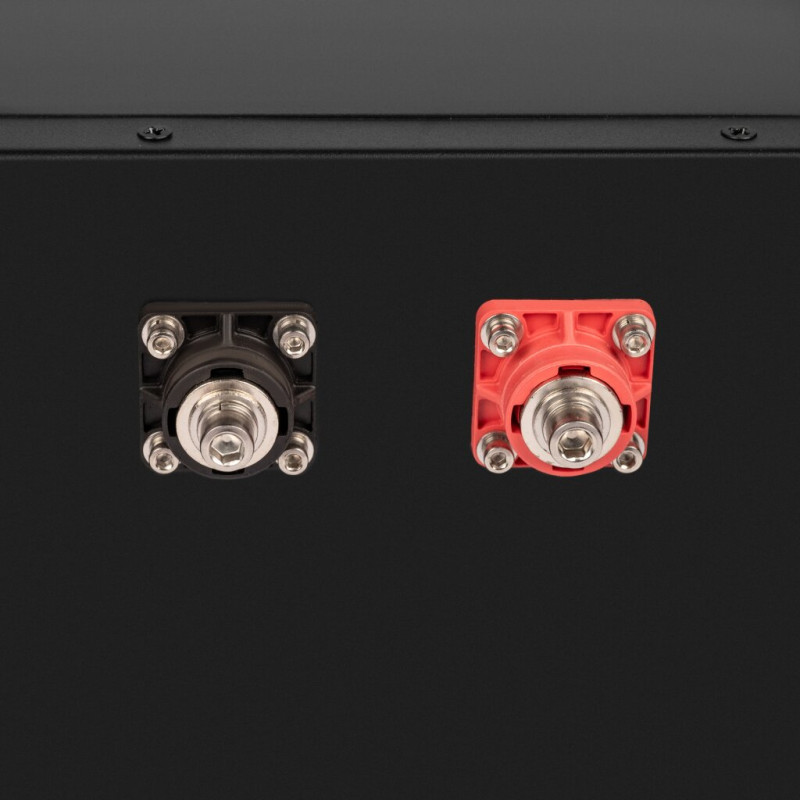

Terminal type T11 (for M8 bolt)
Type LiFePO4
Warranty, months 60
Weight, kg 82
Width, mm ** 445
