600-6000 MHz Dome Antenna for Monitoring, Magnetic Mount (AB48202770000126)

Introducing a dome antenna from AB-Antennas for radio signal monitoring, designed with a magnetic base for quick temporary installation on metal surfaces. The product title specifies a 600-6000 MHz range, highlighting the antenna's broad application concept, while the technical specifications indicate an operating range of 650...3000 MHz — both values are provided below for full clarity and correspond to the original description data.

Key Features

• Directivity: Omnidirectional (circular) — ensures uniform signal reception in the horizontal plane.
• Polarization: Vertical.
• Operating Frequency Range: In title: 600-6000 MHz; In technical specification: 650...3000 MHz.
• Gain: 2 dBi.
• Input Impedance: 50 Ohm.

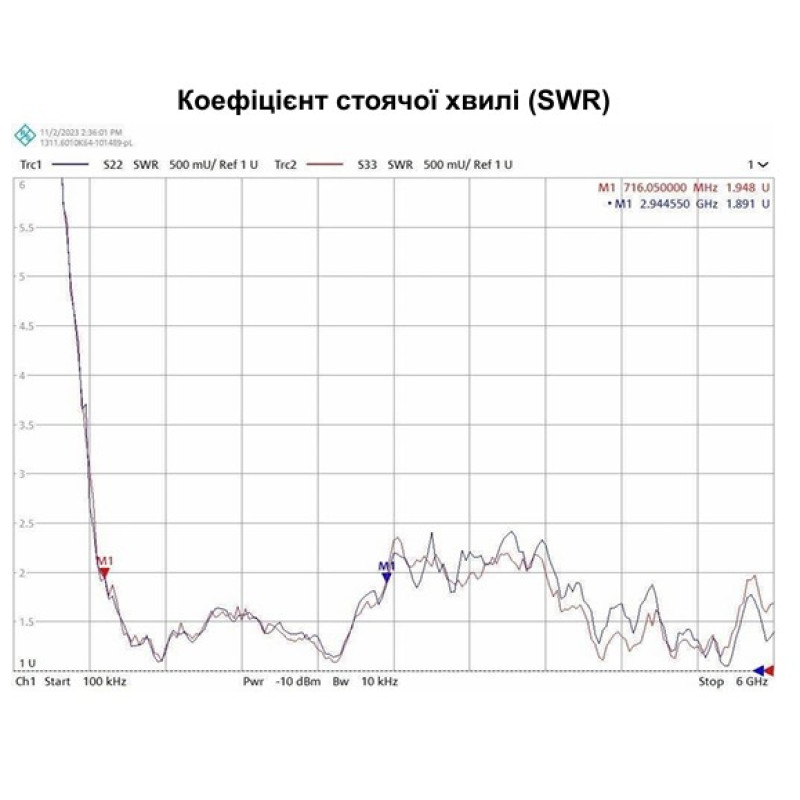

• VSWR: 747...2200 MHz
