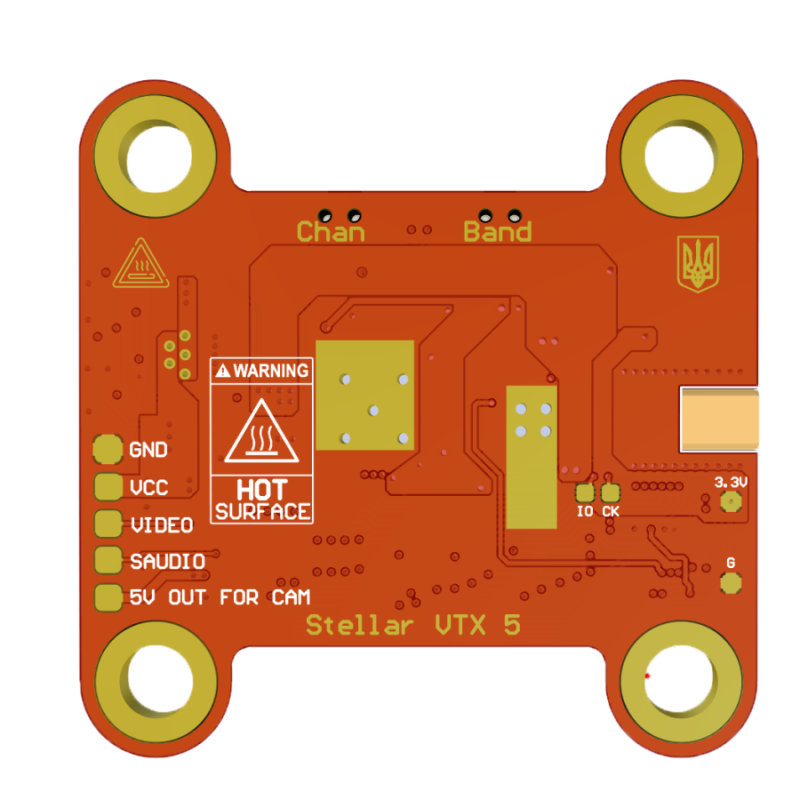

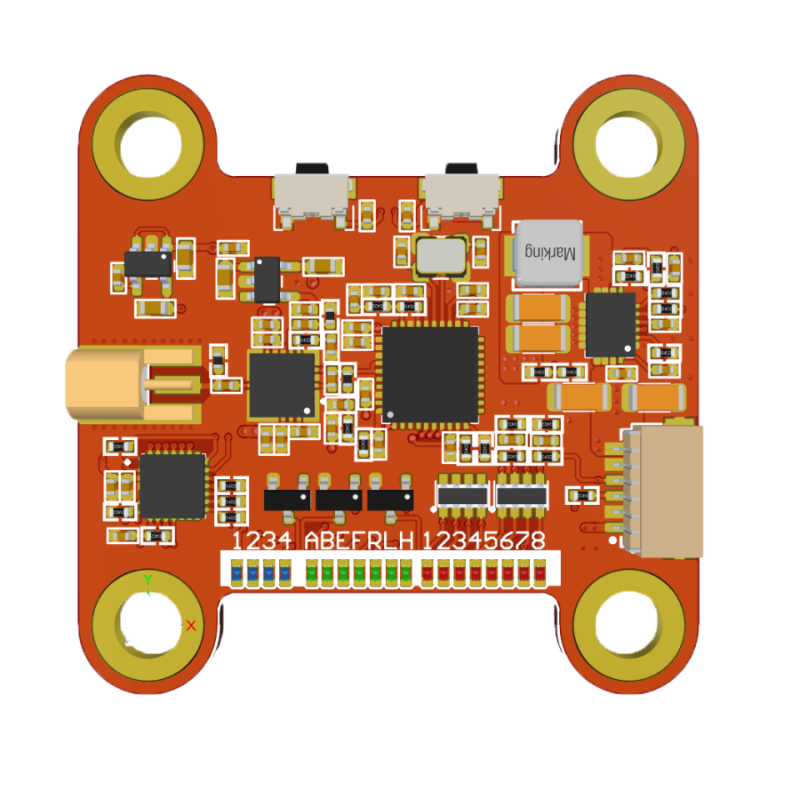

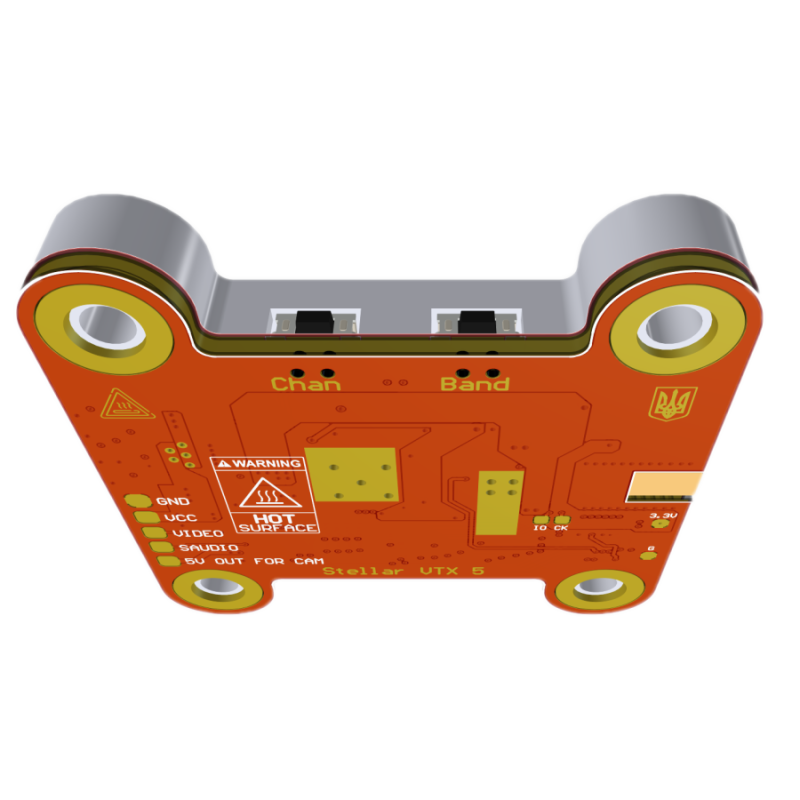

StingBee Stellar VTX 5 V1 Video Transmitter Overview
StingBee Stellar VTX 5 V1 is a compact and powerful video transmitter for FPV flights, designed for racing enthusiasts, aerial photography, and amateur builds. This module combines stable long-range transmission capabilities with minimal weight and easy integration into standard frames and enclosures.
The transmitter supports power adjustment and operation across a wide range of bands, allowing users to avoid interference and select the optimal frequency for each flight. It is powered by 2-6S LiPo batteries, ensuring compatibility with most modern FPV aircraft and quadcopters. Thanks to its well-designed electronics and quality assembly, the Stellar VTX 5 V1 delivers a clear video signal even in high RF noise environments.
Key technical features include: support for A, B, E, F, R, L, H bands; smooth power switching between 25 / 250 / 500 / 1000 / 1500 / 2500 mW levels; nominal/maximum power stated as 2W5 (2.5W). For convenient setup, manual power and frequency adjustment are provided, along with LED indication of the selected channel and band.

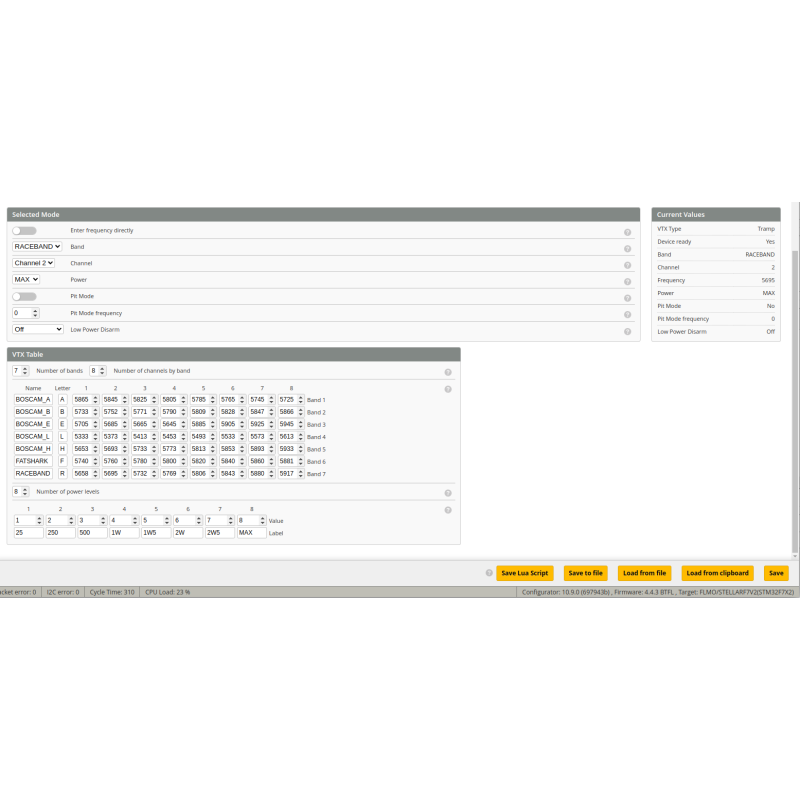

The model's mounting pattern complies with the 30.5×30.5 mm standard, making installation simple and quick in popular frames and enclosures. For fine-tuned parameter control, the SmartAudio protocol is used, allowing OSD configuration and VTX settings changes directly during flight via a compatible flight controller or radio remote.
Where to use Stellar VTX 5 V1
The transmitter is ideal for FPV racing, where mobility and the ability to quickly change power settings according to track rules are essential; for aerial photography, where range and signal stability are crucial; and for amateur and custom builds requiring a compact and lightweight VTX with a wide range of features.
Additional Information
- Name: StingBee Stellar VTX 5 V1 Video Transmitter
- Brand: StingBee
- Product Type: Drones & Quadcopters > Transmitters
- Power Supply: 2-6S LiPo
- Mounting Pattern: 30.5×30.5 mm
- Band Support: A, B, E, F, R, L, H
- Power Levels: 25 / 250 / 500 / 1000 / 1500 / 2500 mW
- Nominal/Maximum Power: 2W5 (2.5W)
- Indication: LED for channel and band
- OSD Configuration: SmartAudio
The StingBee Stellar VTX 5 V1 offers a balance between power, weight, and ease of setup: from an economical mode for short flights to a powerful mode for long-range transmission. It is a versatile solution for pilots seeking reliable video transmission without unnecessary complications when integrating it into their build.
