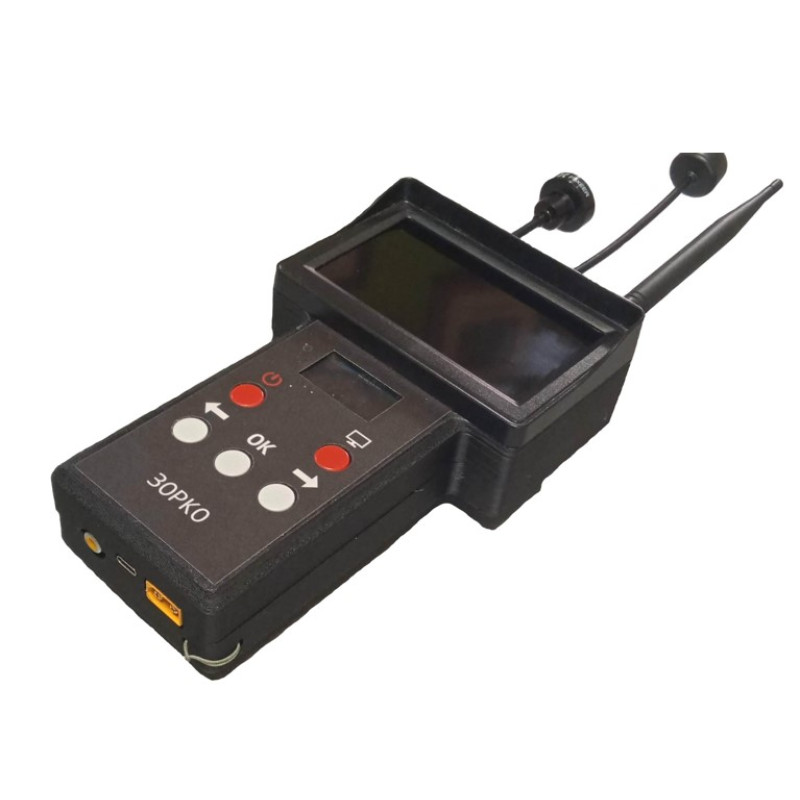

ZORKO FPV Drone Detector 1080-2200, 3060-3700, 5705-5945 MHz
Brand: Stinex. Type: Drone Detector. The ZORKO model is a portable individual FPV drone video signal detector, designed for rapid detection of video signal transmitters, real-time video stream interception, and enhanced situational awareness on site. The device allows for quick reaction to UAV threats and protection of positions, personnel, infrastructure, armaments, and military equipment.
Description and Purpose
The ZORKO detector is designed to detect FPV drones by their video signal and provide operational observation and threat assessment. The device identifies the presence of a drone by its radio signal, allowing for real-time video stream acquisition for decision-making. Compact, ergonomic, and lightweight — it is suitable for individual use in the field, enabling mobile patrolling and monitoring.
Specifications
- Operating detection frequency ranges, MHz: 1080-2200, 3060-3700, 5705-5945
- Sensitivity, dBm: -90
- Scanning speed, s: 4 - 8
- UAV emission detection range, m: Up to 2,000 – 4,000 in each range
- Antennas: omnidirectional, circular polarization
- Display screens, diagonal size, mm: Main for video signal – 110.6 (4.3'), service information – 33 (1.3')
- Audio, visual alarm: audio, adjustable
- Power supply: Li-Ion battery 3.7 V 21700 4800 mAh
- Continuous operation time, hours: 6 - 8
- Charging time: up to 3 hours
- Maximum size with antennas: 1100x1400x55 cm
- Operating temperature: from -20 to 50°C
- Maximum kit weight, g: up to 650
- Protection rating: IP54
- Dimensions, without antennas, (HxWxD), mm: 190 x 117 x 40
- Housing material: ABS plastic
Advantages
ZORKO combines a wide detection range, high sensitivity, and mobility. Multi-band reception (1080–2200 MHz, 3060–3700 MHz, and 5705–5945 MHz) allows tracking various types of FPV transmitters, while 6–8 hours of autonomous operation ensures prolonged patrolling. Compact dimensions without antennas and low weight make the detector convenient for personnel. The IP54 protection rating guarantees resistance to dust and splashes in field conditions. The presence of two screens of different sizes simplifies operational observation and analysis of received video, and adjustable audio alarms allow adapting notifications to operational conditions.
Package Contents
- Individual detector – 1 pc.
- Set of receiving antennas – 1 pc.
- Charger with cable – 1 pc.
- Case – 1 pc.
- Passport – 1 pc.
- User manual – 1 pc.
The ZORKO FPV drone detector from Stinex is a reliable solution for protecting positions and infrastructure. The device is suitable for real-time monitoring, threat assessment, and rapid decision-making. By combining high sensitivity, wide frequency coverage, and long autonomous operation, this model meets the requirements of services performing tasks for detecting and tracking unmanned aerial vehicles in field conditions.
