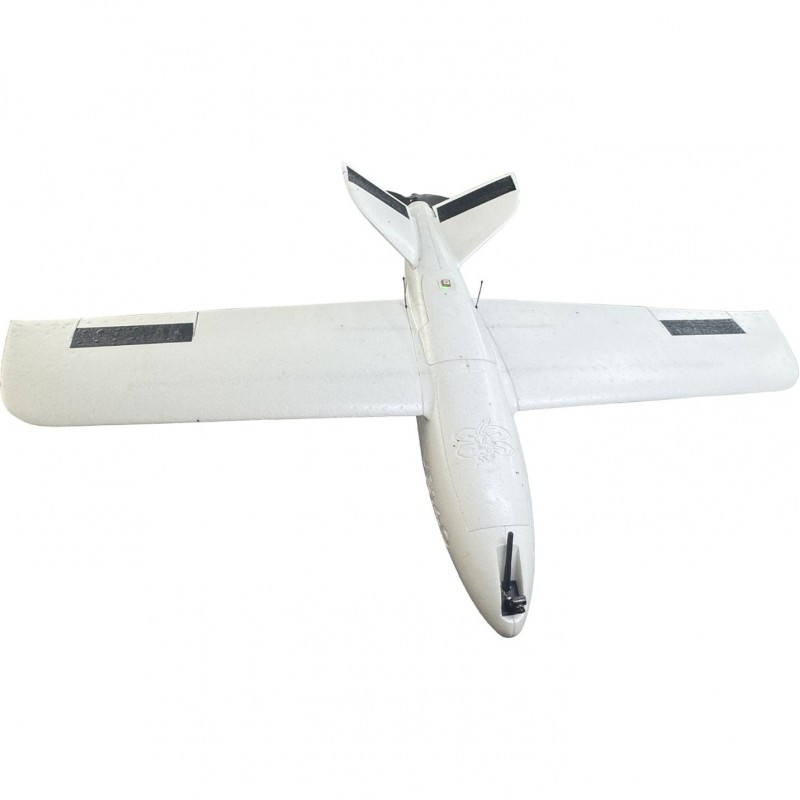

UAV ST-F1 PHOBOS (full kit) — a professional aircraft model from the manufacturer Stinex, designed for long-duration reconnaissance and tactical missions, combining a lightweight and durable foam construction, a well-thought-out configuration, and a recommended power plant for stable operation with a payload.

Description and Key Characteristics

The ST-F1 PHOBOS model is designed for missions with significant range and flight duration when operating with optical or special payloads. Below are the technical parameters that allow evaluating the capabilities of the aircraft and preparing it for operation in various conditions:

• 1. Payload – 500-800 g.
• 2. Flight altitude with payload – not less than 3500 m.
• 3. Cruising speed with payload – 70 (±20) km/h.
• 4. Maximum speed with payload – up to 120 km/h.
• 5. Flight duration with payload – not less than 80 min.
• 6. Route length with payload – not less than 40 km.
• 7. Wingspan – 1415 mm.
• 8. Permissible operating temperature range – from -15 °C to +40 °C.
• 9. Weight without payload – 2060 g.
• 10. Power supply – 6S2P Li-Ion battery, 22.2 V, capacity 9000 mAh (recommended battery type).
• 11. Construction material – foam.

The values provided are averaged and may vary depending on the type and configuration of the internal equipment. The weight is indicated taking into account the installed 6S2P Li-Ion 22.2 V 9000 mAh battery and internal components (flight controller, servos, motor, etc.). The recommended battery type for achieving the stated flight duration and range parameters is 6S2P Li-Ion 22.2 V 9000 mAh.

Model Advantages

The ST-F1 PHOBOS stands out for its flight stability, high range and mission duration, and the ability to carry a payload of up to 800 g. The foam construction ensures low weight and ease of repair in the field, making the model convenient for quick restoration of functionality. The well-thought-out configuration and recommended power plant allow for quick preparation of the aircraft for missions and ensure stable operation along the route.

Kit Contents

The UAV ST-F1 PHOBOS (full kit) is designed for missions where flight range, long endurance, and operation with a payload of up to 800 g are critical. It is recommended to use 6S2P Li-Ion 22.2 V 9000 mAh batteries to achieve the stated flight duration (not less than 80 minutes) and route length (not less than 40 km). The operating temperature range from -15 °C to +40 °C allows the aircraft to be used in various climatic conditions.

Manufacturer: Stinex. Category: Drones and Quadcopters > Aircraft Models.
