The VIK-2K EW jammer effectively neutralizes DJI Mavic-type drones by suppressing their operating frequencies in two bands. Its 100W power allows for quick and reliable stopping of enemy UAVs. Developed for the Ukrainian Air Assault Forces, this jammer has already proven its effectiveness in combat conditions.

The main purpose of this EW jammer is to protect mobile assault groups during deployment or positioning from ammunition drops by DJI Mavic-type drones.



Advantages:

• low weight, field version with one battery up to 10kg
• fast and versatile antenna mounting on a backpack, in hands, on a tripod
• any 20-29V 10A power source, e.g., FPV drone batteries
• operation from 220V, with simultaneous battery charging
• remote control and power for the device

System Features

• Form factor: assault-type backpack
• Low device weight: ~10 kg, including one battery
• Various antenna placement methods:
  • fixed on a backpack;
  • in the hands of the EW operator
  • on a tripod for stationary use
• The EW jammer creates interference in two standard operating bands for DJI Mavic-type UAVs: 2.4GHz and 5.8GHz
• Highly efficient antenna with high VSWR
• Active cooling, allowing the system to operate for a long time without risk of overheating and shutdown
• Remote control and power capability for the device
• Easy and quick battery replacement
• Available with 3 power options:
  • power from internal battery (2+ hours of autonomous operation)
  • power from external 220V mains with simultaneous battery charging
  • power from external batteries and 24V DC power sources

Device Structure

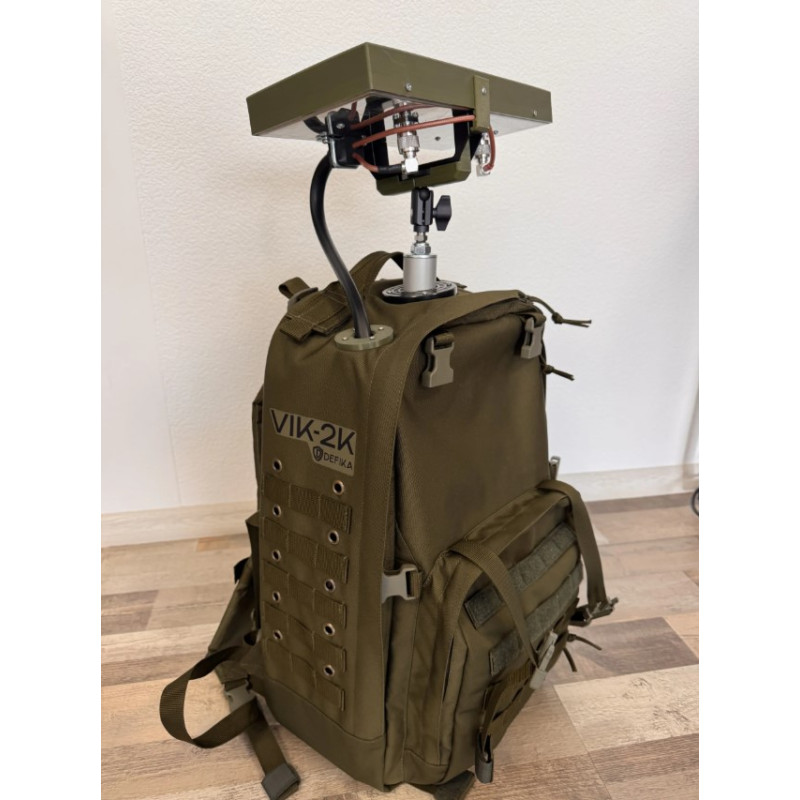

• The device is integrated into a specially designed assault backpack, combining carrying convenience and equipment protection. An aluminum internal frame provides structural rigidity and reliably protects key components.
• The control panel is attached to the backpack strap, allowing quick and convenient control of the device and monitoring of battery charge.
• The placement and access to the battery allow for very quick and convenient replacement with a new one.
• The backpack has external power connectors through which the device can be powered or the battery charged.
• The device comes with an external cable (up to 6 meters), which allows for remote control of the device and connection of a battery or charger.
• The antenna is mounted on the backpack using a special attachment to easily adjust the antenna's tilt angle. This design allows the operator to quickly remove the antenna and direct it by hand.
• Additionally, the device is equipped with a tripod for antenna mounting when deploying the device in position. This allows the backpack with electronics to be placed in a protected location.
• Antenna feeder connections are made with high-quality N-Type connectors, allowing quick replacement of the antenna or feeder without special tools, even in field conditions.

Device Configuration

Tactical and Technical Characteristics of the "VIK-2K" Device

1. Total output power – 100 W
2. Power consumption – up to 200 W
3. Operating frequency ranges:
   • 2400-2500 MHz, 50 W: Control frequency for DJI and AUTEL-based UAVs and FPV drones
   • 5700-5900 MHz, 50 W: Control and video transmission frequency for DJI and AUTEL-based UAVs
4. Operating range from 50 m to 250 m, provided the FPV UAV pilot is located at a distance of 1000 m, depending on the pilot's complex power and equipment, weather conditions, terrain, etc.
5. Effective operation mode – up to 120 min of continuous activation, from one battery
6. The system is powered by possible power sources:
   • any 220 V, 50 Hz AC power source with 400W power using the charger included in the device kit.
   • 24V-30V 10A DC power source
   • built-in (replaceable) rechargeable battery with 28V 20A voltage
7. The electronic part is housed in a plastic casing inside the backpack, which protects the robust aluminum frame, providing protection against temperature fluctuations, atmospheric precipitation, and mechanical impacts.
8. Active cooling system (built-in fans)
9. Directional panel antenna
10. Total kit weight – ~ 10 kg (13 kg with additional battery and charger)
11. Backpack dimensions: 60x40x24cm
