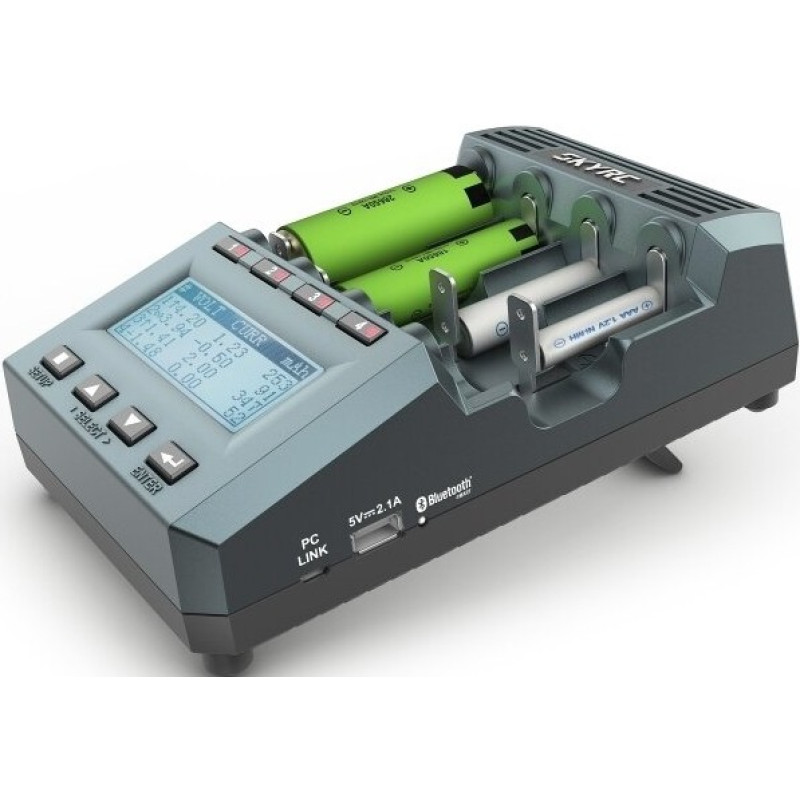

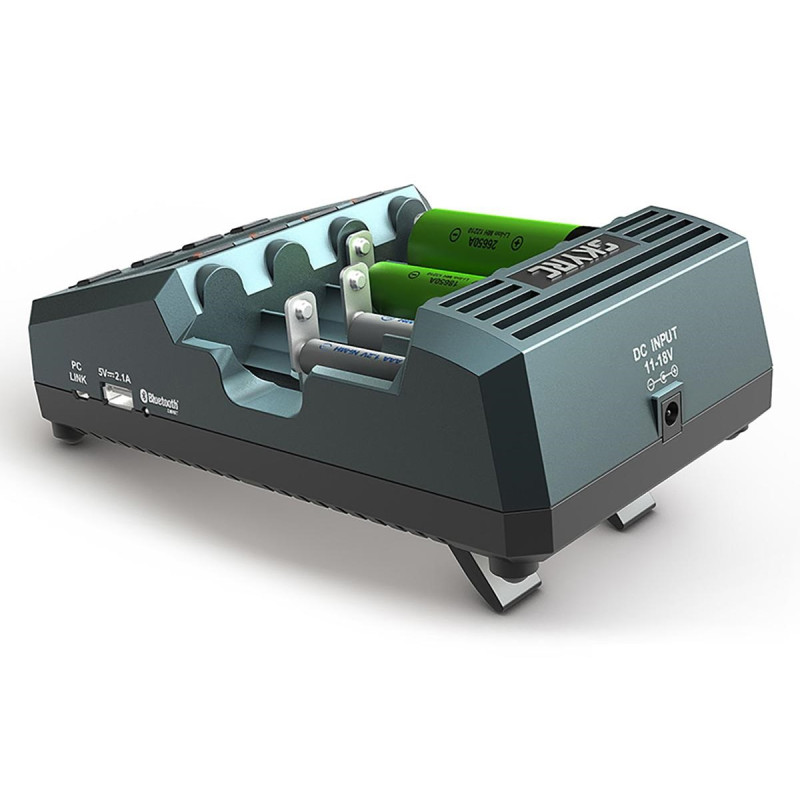

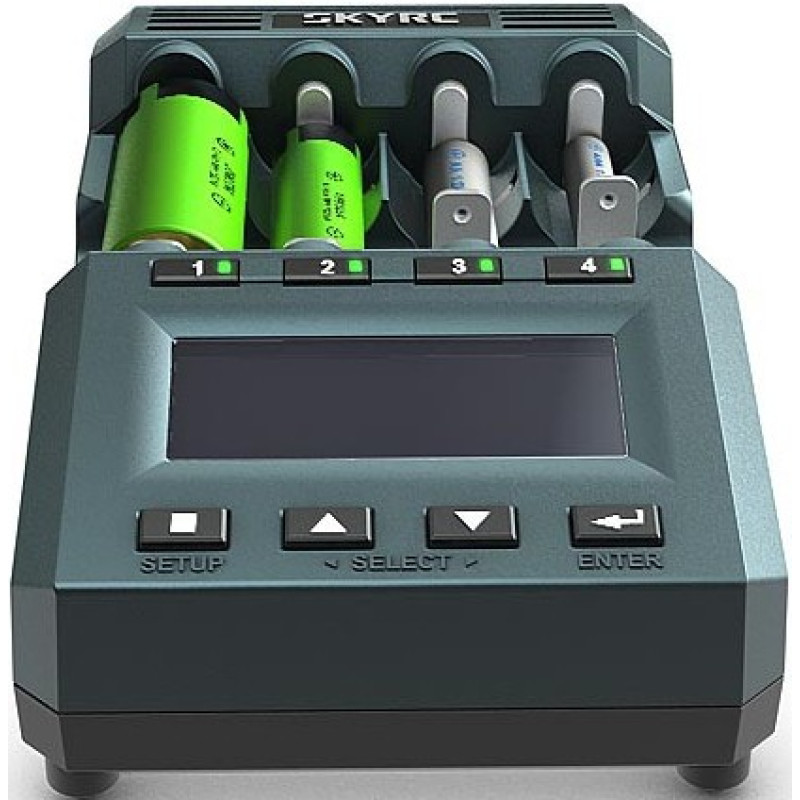

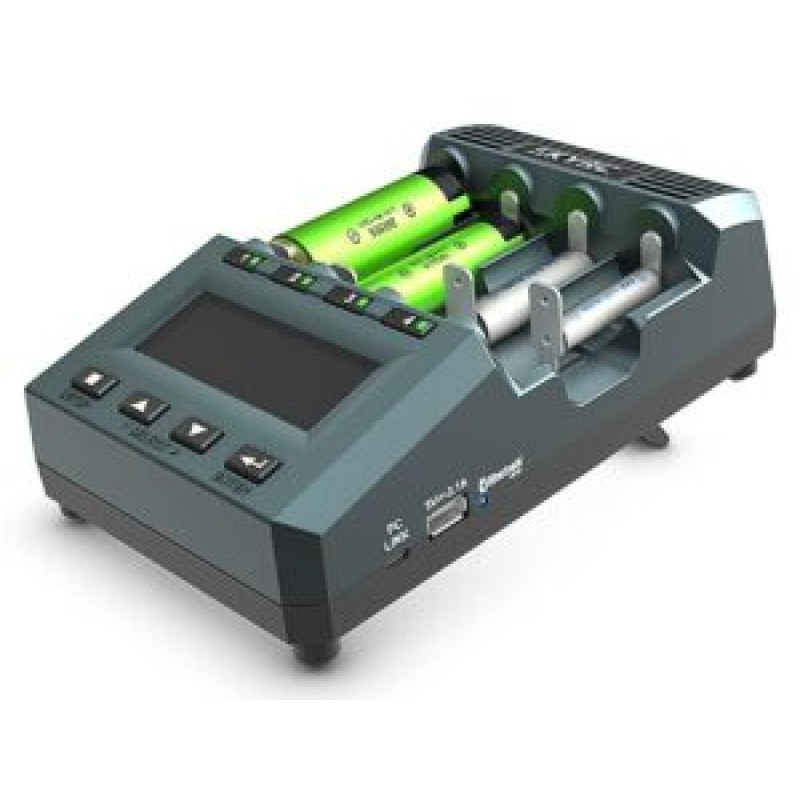

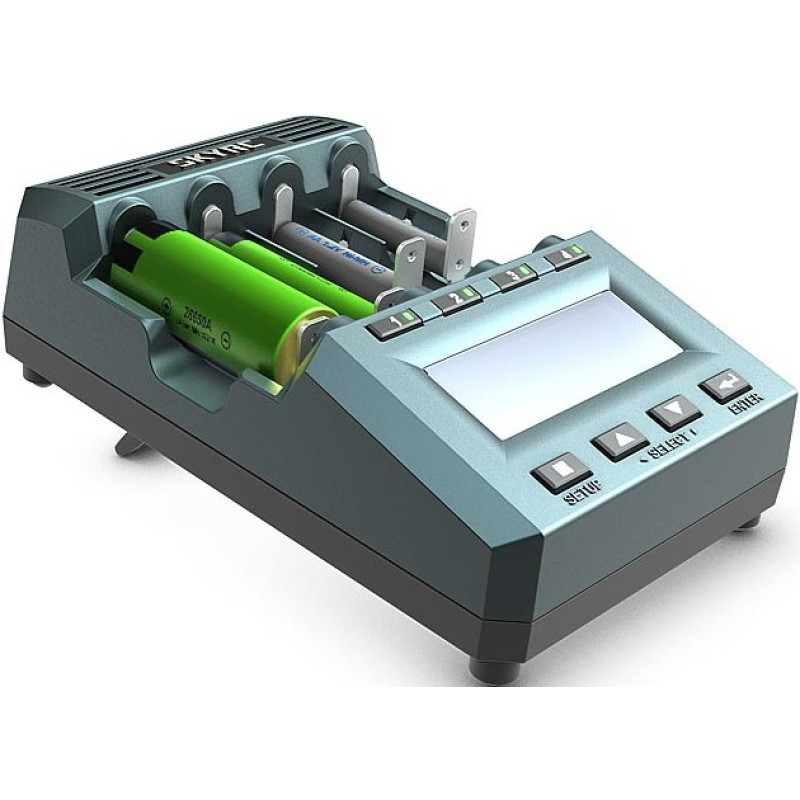

SkyRC MC3000 Charger Review

SkyRC MC3000 Charger — a modern, compact cylindrical battery charger and analyzer from the SkyRC brand, designed for hobby enthusiasts and professionals. The device combines versatility, high measurement accuracy, and ease of control: it is suitable for a large number of cylindrical batteries of various chemical compositions and sizes, ensuring correct full charge detection using the Delta V method and other operational modes.

Key Advantages and Functions

• Maximum charging speed up to 3 A with voltage measurement accuracy of 0.01 V.
• High internal calibration accuracy: voltage ±2 mV, current ±2 mA for Ni-types, ensuring result stability.
• Integrated utilities for data export and detailed analysis of battery performance and condition, including internal resistance measurement for each slot.
• Built-in Bluetooth (BLE) for smart control via mobile app and real-time viewing of graphs and data.
• PC connectivity via MC3000 Monitor software for advanced management and cycle archiving.
• Fire-resistant PC+ABS material casing (UL94 V0 rating) for enhanced safety during charging.
• Efficient heat dissipation thanks to the built-in aluminum fan; cooling works reliably even at low fan speeds.
• Reliable stand with rubber feet and angled elements provides a better viewing angle and optimal airflow.

Supported Battery Types and Operating Modes

• Support for a wide range of chemical compositions: NiMH, NiCd, NiZn, Eneloop, RAM, Lithium-Ion, LiIo4.35, LiFePO4, LTO, and others.
• For Ni-types (NiMH, NiCd, NiZn, RAM, Eneloop): maximum charge current 3 A (for 4 slots), maximum discharge current 2 A (for 4 slots); internal calibration accuracy: voltage |±2 mV|, current |±2 mA|.
• For Lithium types (LiIo4.35, LiFePO4, LTO, LiIon): maximum charge current 3 A (for all 4 slots), maximum discharge current 2 A (for 1 slot) or up to 1 A (for 4 slots); display resolution: voltage 0.01 V, current 0.01 A.
• The device operates in simple and advanced interface modes, with up to 30 saved profiles for quick operation startup.

Interface and Ease of Use

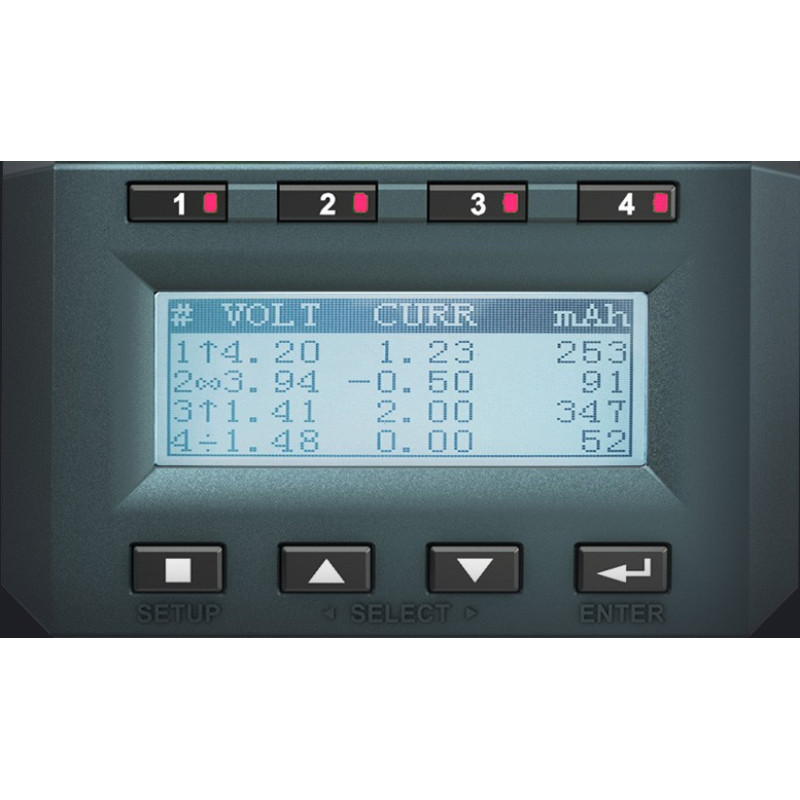

• Compact 128×64 pixel monochrome screen displays up to five lines of information during operation, providing an overview of key parameters.
• Eight intuitive buttons for programming and launching: four buttons for slot selection (SNB) and four for settings and program launch.

Technical Specifications

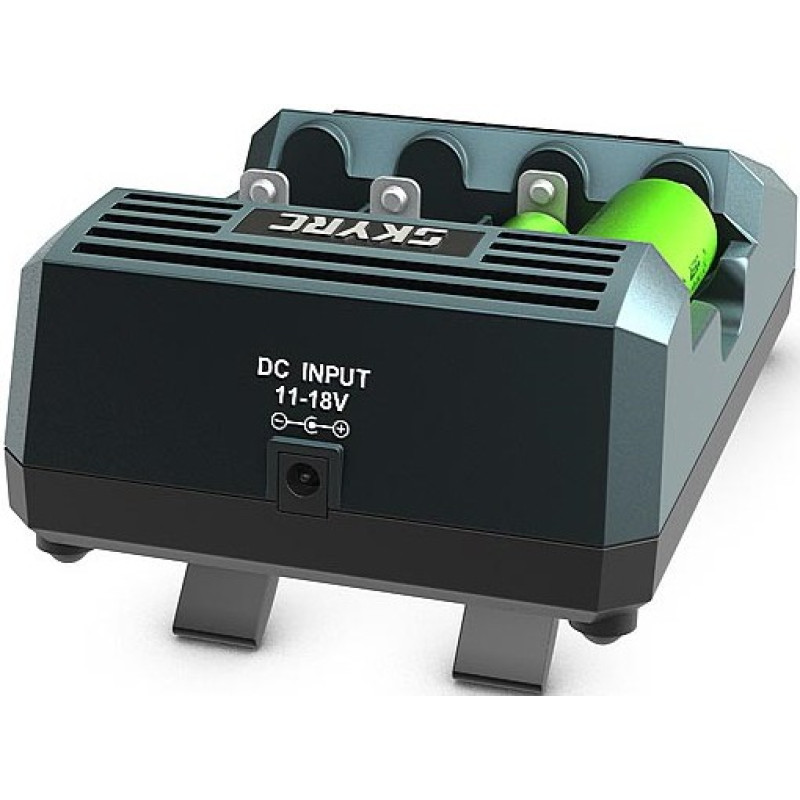

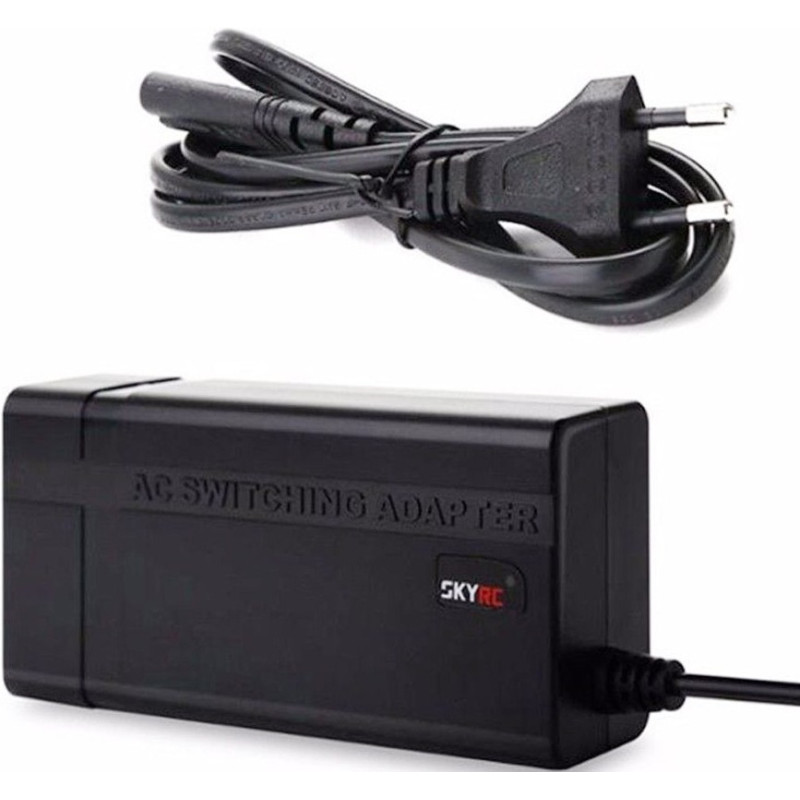

• Input Power: DC 11-18V/4A
• Charge Current Range: 0.05–3.00 A
• Discharge Current Range: 0.05–2.00 A
• Max Charge Power: 50 W
• Max Discharge Power: 15 W
• Supported Battery Types: NiMH, NiCd, NiZn, Eneloop, Lithium-Ion, LiIo4.35, LiFePO4, RAM, LTO
• Min/Max Battery Capacity: 100–50000 mAh
• Operating Temperature: 0 to 40 °C
• USB Power Output: DC 5 V/2.1 A
• Dimensions (L×W×H): 200×124×69 mm
• Weight (without DC adapter): 600 g

Practical Application and Safety

The MC3000 is a balanced combination of safety, functionality, and accuracy. The built-in internal resistance measurement helps assess the real condition of each battery, and the fire-resistant casing enhances overall reliability during intensive use. Bluetooth and PC software provide full control over the charging process, allowing analysis of cycle history and optimization of battery operation for a longer lifespan.

Product Category: Drones and Quadcopters > Drone Components > Chargers. Brand: SkyRC. Model: MC3000.
