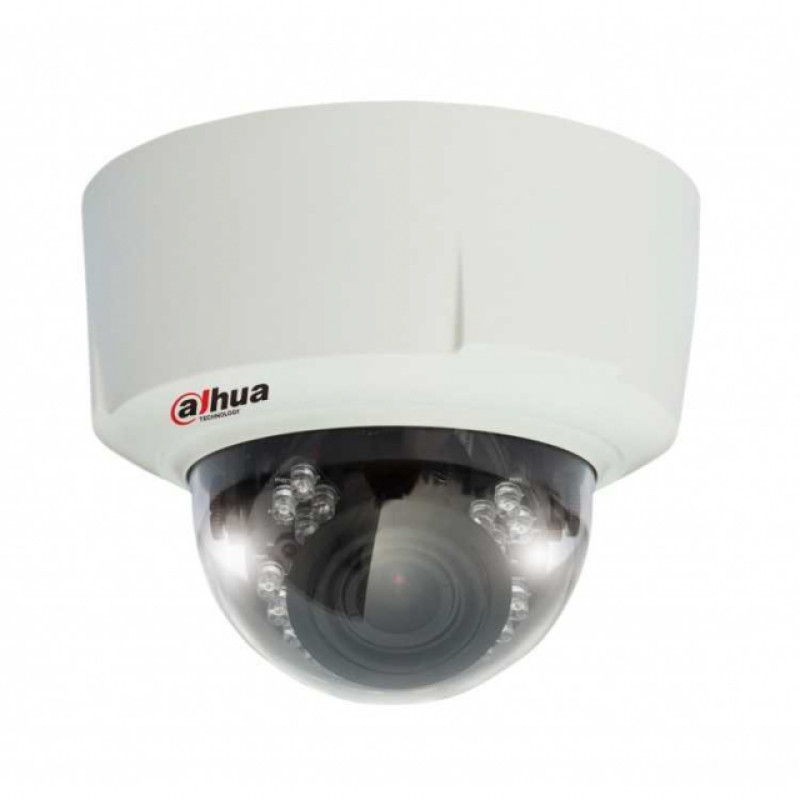

Dahua DH-IPC-HDBW8301 — 3 MP Dome IP Camera

Manufacturer: Dahua. Model: DH-IPC-HDBW8301. Product type: Electronics > Video Surveillance > Video Cameras. This compact 3 MP dome IP camera is designed for 24/7 indoor and outdoor monitoring, combining high image quality, reliable construction, and easy integration into existing security systems.

Description and Purpose

The camera is optimal for monitoring retail spaces, offices, warehouses, entrances, and outdoor areas. Built-in day/night (ICR) functions and high light sensitivity allow for clear video both during the day and in low-light conditions. Support for modern video codecs ensures economical storage and transmission of video, while an extended set of smart functions allows for automatic detection of suspicious events.

Technical Specifications

• Sensor: 1/3` Aptina CMOS
• Resolution: 3 MP (3.0M) with recording modes 3.0M/1080P/720P at 25 fps
• Codecs: H.264 / MJPEG
• Lens: f=2.7-12 mm
• Visibility modes: day/night (ICR)
• Light sensitivity: 0.1 Lux (color) / 0.01 Lux (B/W) / 0 Lux (IR on)
• Audio: 1 in / 1 out
• Alarm: 1 in / 1 out
• Image quality preservation functions: ROI, EIS
• Smart functions: Face detection, Tripwire detection, Intrusion detection, Scene change detection
• Protection rating: IP66 and IK10
• Power supply: DC 12V and POE (Power over Ethernet)
• Dimensions: ф151х179 mm
• Weight: 1.3 kg

Advantages and Practical Application

The Dahua DH-IPC-HDBW8301 combines 3 MP resolution with effective event analysis algorithms, making it an ideal choice for systems where accuracy and rapid detection are important. Face detection, Tripwire, and Intrusion detection functions enhance the security level of the object, allowing for automatic recording of important incidents. ROI and EIS help save storage space while maintaining the quality of the most important areas of the frame. H.264/MJPEG support provides flexibility in configuring quality and network bandwidth.

Thanks to Power over Ethernet (POE), installation is significantly simplified — reducing the number of cables and the need for additional power sources. The robust housing with IP66 and IK10 protection guarantees resistance to dust, moisture, and mechanical impacts, making the camera suitable for outdoor use and public places with an increased risk of vandalism.

This is a balanced solution for 24/7 video surveillance with an extended set of smart functions, image quality assurance, and ease of installation. The camera is suitable for comprehensive protection of retail facilities, offices, warehouses, and residential areas where reliable operation in various lighting conditions is required.

Information from the original description: 3 MP dome IP camera, day/night (ICR), 1/3` Aptina CMOS, H.264/MJPEG, f=2.7-12 mm; 0.1 Lux (color) / 0.01 Lux (B/W) / 0 Lux (IR on), Recording: 3.0M/1080P/720P - 25 fps, Audio: 1 in/1 out, Alarm: 1 in/1 out; ROI, EIS, Smart functions: Face detection, Tripwire detection, Intrusion detection, Scene change detection, IP66, IK10, DC 12V, POE, ф151х179 mm, 1.3 kg
