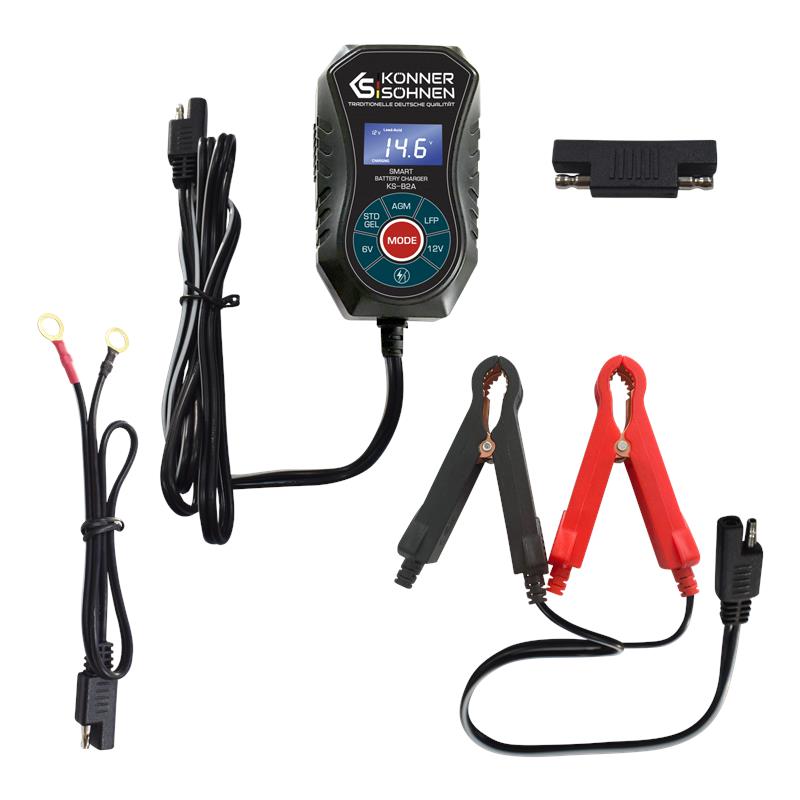

The compact charger KS-B2A TM Konner & Sohnen® is an easy-to-use automatic device for charging various types of batteries.

Purpose:

• Suitable for LiFePO4, AGM, lead-acid, and gel batteries

• Works with 6 V, 12 V, and LiFePO4 12.8 V (4 cells) batteries

• Used in cars, light trucks, tractors, generators, vans, mobile homes, motorboats

• Supports batteries with a capacity up to 45 Ah

Operating modes:

• 6 V / 12 V / STD / GEL / AGM / LiFePO4

• Automatic charging mode with subsequent transition to maintenance mode (STD/GEL and AGM) or charging completion (LiFePO4) when the charging current drops to approximately 0.3 A

Features and functions:

• The intelligent microprocessor analyzes battery parameters and displays the charge level in real time 5 minutes after charging begins

• Automatically adjusts charging current for efficient and safe charging

• LCD display shows voltage, charge level, and current

• Three operating modes provide versatility for different battery types

Protection system:

• against overheating

• against short circuit

• against reverse polarity

• against overcharging

Design features:

• Cable with SAE connector, allowing for changing terminal types (alligator clips or ring terminals, supplied in the kit)

• Special adapter for changing wire polarity

• Compact body, convenient for use and storage

Technical specifications:

• Voltage: 6 / 12 / 12.8 V

• Maximum output current: 2 A

• Rated input voltage: AC 210–240 V, 50/60 Hz

• Operating temperature: -10 °C … +40 °C

• Battery capacity: up to 45 Ah

• Cable length: 1.8 m

• Net dimensions: 92.5 × 65 × 35 mm

• Gross dimensions: 140 × 90 × 80 mm

• Net weight: 0.30 kg

• Protection class: IP40
