Product Code: FA94-24768-94
20 250 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10~80%
Balancer Type: Active up to 5A
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 1280
Cell connection diagram: 4S1P
All specifications
We will deliver this product:
Payment
Description

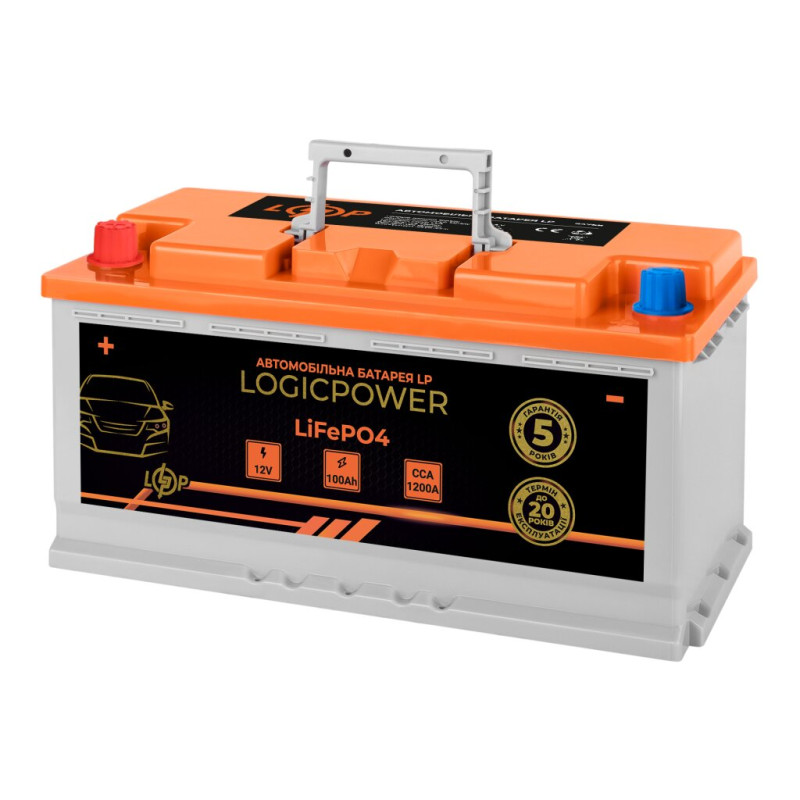

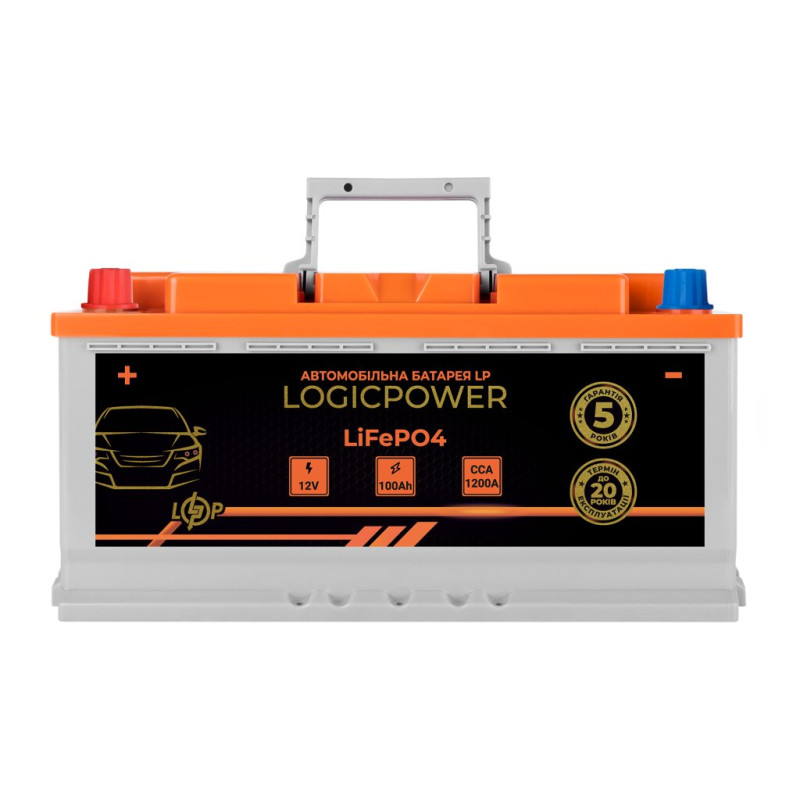

Car Battery LP LiFePO4 12V - 100 Ah (+ left) BMS 1200A with BMS

The LiFePO4 battery with BMS is equipped with a protection board, which ensures efficient and long-lasting operation of the car battery.

The lithium iron phosphate car battery with BMS provides cold start and has a high discharge current.

This is the most powerful type of car battery that can be used for:

  • starting internal combustion engines, both diesel and gasoline;

  • powering car audio systems, alarms, etc.;

  • floor cleaning machines, electric cars, and other special equipment that requires high battery consumption currents;

  • boat motors, both electric and internal combustion;

  • and also as a battery for uninterruptible power supplies (UPS).

Advantages of LiFePO4 car batteries with BMS:

  • small size and weight;

  • long service life;

  • high starting current;

  • over-discharge protection;

  • overcharge protection;

  • short circuit protection;

  • versatility;

  • low self-discharge.

Why do we recommend buying a LiFePO4 car battery with BMS?

Lithium iron phosphate LiFePO4 batteries with BMS are the best car batteries, as they solve a number of problems faced by owners of lead-acid batteries.

One of the main problems of traditional batteries is their limited service life. The LiFePO4 car battery with BMS is several times more durable than its lead-acid counterparts, as it has a significant resource. LogicPower lithium iron phosphate batteries are designed for 7000 charge/discharge cycles (up to 20 years of operation). Manufacturer's warranty - 60 months.

The LiFePO4 car battery with BMS 12V - 100 Ah (+ left) BMS 1200A is not afraid of deep discharge; if you forgot to turn off the headlights or music in your car and found a discharged battery in the morning, this is not a problem, the battery will not fail, it will simply need to be recharged again.

The LiFePO4 car battery with BMS 12V - 100 Ah (+ left) BMS 1200A, in case of a short circuit in the car's electrical system, for example, during an accident or repair work, will automatically cut off the power supply, which can prevent the car from catching fire. To re-enable the battery, disconnect the wires from it and press the reset button, after which the battery will resume operation.

LiFePO4 car batteries with BMS 12V - 100 Ah (+ left) BMS 1200A have good energy density, which allows them to provide a high level of energy per unit of mass. Therefore, the weight of these batteries is less than that of lead-acid counterparts. This is important for sports and small cars, where every kilogram can affect speed or travel range.

The LiFePO4 car battery with BMS 12V - 100 Ah (+ left) BMS 1200A can be charged with high currents; if for some reason your battery is discharged, it can be charged significantly faster than a lead-acid one.

The LiFePO4 car battery with BMS 12V - 100 Ah (+ left) BMS 1200A works equally well at both low and high temperatures, making them suitable for a wide range of climatic conditions.

The LiFePO4 car battery with BMS 12V - 100 Ah (+ left) BMS 1200A has a balancing circuit that monitors the uniform charging of the battery cells.

Specifications
Ambient humidity, %(RH) 10~80%
Balancer Type Active up to 5A
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 1280
Cell connection diagram 4S1P
Cell type Prismatic
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 13.6
Charging voltage (cyclic mode), V 14.6
Communication interface out of stock
Discharge operating temperature, °C -4 ~ +140
Height, mm ** 190
Housing material Plastic
Length, mm ** 355
Maximum charge current, A 100
Maximum discharge current, A 100
Minimum voltage, V 10.5
Nominal capacity, Ah 100
Nominal charging current, A 50
Nominal values of elements 100
Nominal voltage, V 12
Number of cycles 7000
Peak Discharge Current, A 1200 (100ms)
Polarity + left
Protection level IP54
Recommended low voltage cutoff, V 11.2
Reconnecting charge voltage, V 14.2
Reconnection discharge voltage, V 10.6
Short-circuit current, A 1200
Starting current, A 1200
Terminal type Conical Terminals 19.5mm / 17.9mm
Type LiFePO4
Warranty, months 60
Weight, kg 10.4
Width, mm ** 175
