iSDT P30 Dual Channel Lipo Battery Charger from iSDT is a professional dual-channel battery charger designed specifically for drones and quadcopters. The device is ideal for workshops, field conditions, and active FPV operators who value high power, fast charging, and reliable protection systems. Category: Drones & Quadcopters > Chargers.
Key Features

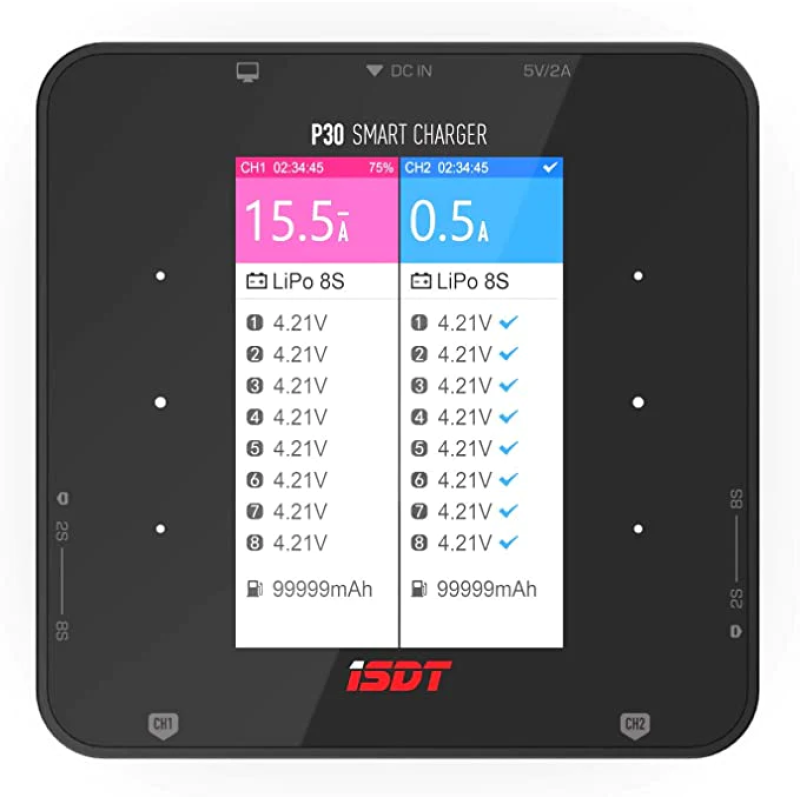

The iSDT P30 model is a dual-channel Lipo charger with an informative 3.5-inch IPS display that shows voltage, current, charged capacity, and charging time. The device supports a wide range of battery technologies: LiPo, LiFe, LiHV, LiIon, NiMH, NiCd, making it a universal solution for various battery types. The design is compact and portable, ensuring convenient use during travel and field operations.
Safety and Convenience
The iSDT P30 is equipped with advanced protection systems: short-circuit, overload, and overheating protection. The device supports abnormal battery voltage alarms and serial number setting error warnings. The informative display allows real-time monitoring of the current charge status, enhancing operational safety.
| Characteristics | Value |
|---|---|
| Type | Dual-channel Lipo charger |
| Supported battery types | LiPo, LiFe, LiHV, LiIon, NiMH, NiCd |
| Number of channels | Two (dual-channel) |
| Display | Informative, shows voltage, current, charged capacity, time |
| Power | High power for fast charging |
| Protection and safety | Short-circuit, overload, overheating protection |
| Compact and portable design | Yes |
| Convenient for travel | Yes |
Below are detailed technical parameters that will help assess the device's capabilities in various application scenarios — from the workshop to field conditions.
| Parameters | Value |
|---|---|
| Input voltage | DC 10~34V |
| Output voltage range | DC 1~34V |
| Maximum input current | 60A |
| Charge current | 0.2~30A x 2 |
| Discharge current | 0.2~3.0A x 2 |
| Current DC current | 1.5 A / cell max. |
| Maximum discharge power | 30W x 2 |
| Maximum charge power | single channel max 1000W, total max 1500W |
| Abnormal battery voltage alarm | supported |
| Serial number setting error warning | supported |
| Supported battery types and cell count | LiFe, Lilon, LiPo 1~8S, LiHv 1-7S, Pb 1-12S, NiMH, Cd 1-16S |
| Input interface | XT90i (compatible with XT90) |
| Output interface | XT60i (compatible with XT60) |
| Display type | 3.5-inch, 320 × 480 IPS LCD |
| Operating temperature | 0~40℃ |
| Storage temperature | -20℃~60℃ |
| Dimensions | 110 x 110 x 65 mm. |
| Weight | 730 g |
Who is it suitable for
This charger is recommended for professionals and enthusiasts:
- FPV operators and drone pilots who need to charge two batteries simultaneously;
- service engineers and technicians working with various battery types;
- travelers and technicians who need a portable and reliable charging system in the field.
Package contents:
1 x ISDT P30 Charger.
