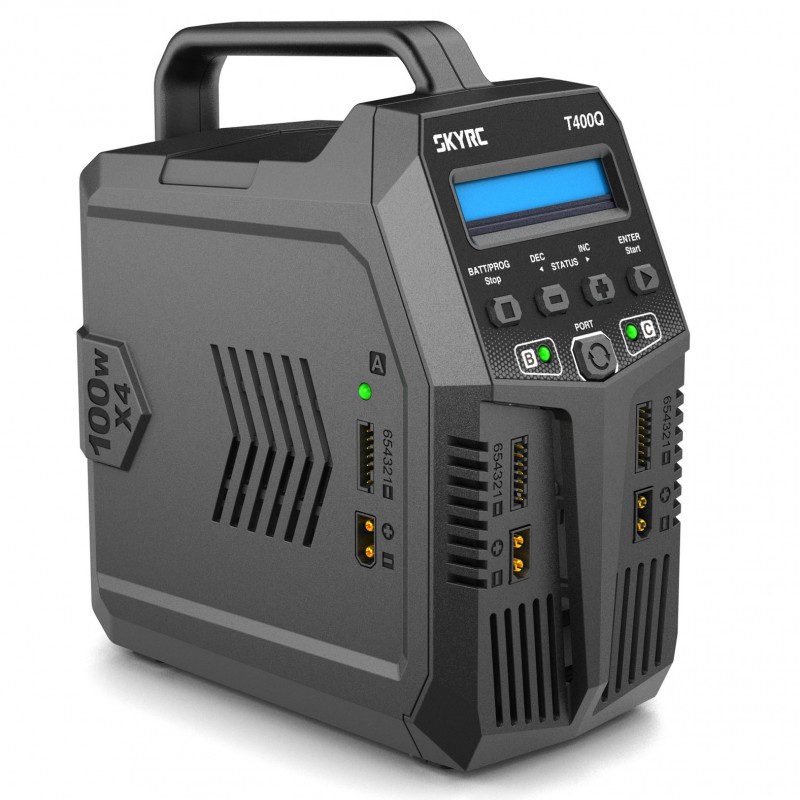

SkyRC T400Q Balance Charger — a professional four-port balance charging and discharging station from the SKYRC brand, model SK-100189 T400Q. This universal charger is designed for owners of drones, quadcopters, FPV systems, radio-controlled models, and electric models who need a reliable, fast, and flexible solution for charging batteries of various chemistries and capacities.
Key Advantages
- Power and Performance: Each of the four independent ports can provide up to 100 W and 12 A, with a total power of up to 400 W, allowing simultaneous charging of multiple batteries without reducing process speed.
- Wide Range of Battery Support: LiPo/LiHV/LiFe/LiIon (1-6S), NiMH/NiCd (1-15S), and Pb (2-20 V) — optimized charging algorithms for the most common chemistries.
- Quattro Design with Four Independent Channels: The ability to operate simultaneously in different modes increases flexibility when preparing for flight or competition.
- Reliable XT60 Connectors from AMASS: High-temperature nylon withstands peak currents up to 60 A for extended periods (without exceeding 80 °C), gold-plated contacts with increased surface area ensure stable contact and connection durability.
- Modes for Challenging Conditions: Cold charging mode and AGM support make the T400Q suitable for use in cold weather and for working with lead-acid batteries without additional adapters.
- Universal Power Input: Can operate from a 11–18 V DC source or from 100–240 V 50/60 Hz AC mains — convenient for use at home, in the workshop, or when traveling abroad.
Technical Specifications
| Manufacturer | SKYRC |
|---|---|
| Model | SK-100189 T400Q |
| Type | 4-port (Quattro) Charger/Discharger |
| Display | LCD 2×16, backlight: blue |
| Input Voltage (DC) | 11-18 V |
| Input Voltage (AC) | 100-240 V, 50/60 Hz |
| Charge Power | 100 W × 4 (total up to 400 W) |
| Discharge Power | 10 W |
| Supported Battery Types | LiPo/LiHV/LiFe/LiIon: 1-6S; NiMH/NiCd: 1-15S; Pb: 2-20 V |
| Capacity Range | NiMH/NiCd: 100-50000 mAh; LiPo/LiIon/LiFe/LiHV: 100-50000 mAh; Pb: 100-50000 mAh |
| Charge Voltage | LiPo: 4.18-4.25 V/cell; LiFe: 3.58-3.7 V/cell; LiIon: 4.08-4.2 V/cell; LiHV: 4.25-4.35 V/cell; Pb: 1.8-2.0 V/cell; NiMH/NiCd: delta-peak detection |
| Discharge Cutoff Voltage | NiMH/NiCd: 0.1-1.1 V/cell; LiPo: 3.0-3.3 V/cell; LiIon: 2.9-3.2 V/cell; LiHV: 3.1-3.4 V/cell |
| Charge Voltage Range | 0.1-26.1 V/cell |
| Charge Current | 0.1A - 12.0A |
| Discharge Current | 0.1A - 2.0A |
| Balance Current | Max. 500 mA |
| Safety Timer | 1–720 min, default 120 min |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 0% - 75% |
| Storage Temperature | -10°C - 70°C |
| Storage Humidity | 0% - 75% |
| Housing Material | Plastic |
| Housing Size | 186 × 103 × 209 mm |
| Weight | 1610 g |
Additional Information
The SkyRC T400Q combines safety, flexibility, and high performance: increased contact area in the connectors, high-quality materials, and well-designed electronics ensure stable contact and battery protection during charging, which helps extend their lifespan. Precise voltage and current settings, balance support, and automatic delta-peak detection for NiMH/NiCd make the device a universal tool for both hobby users and professionals in model building and FPV.
The SkyRC T400Q is suitable for regular maintenance of battery packs when preparing for training, competitions, or flights: four independent channels, the ability to simultaneously connect different battery types, and a cold charging mode for operation in low temperatures ensure maximum efficiency and ease of use.
Product Category: Drones and Quadcopters > Chargers. By investing in the SkyRC T400Q, you get a multifunctional charger with well-thought-out safety, extensive settings, and high build quality.
