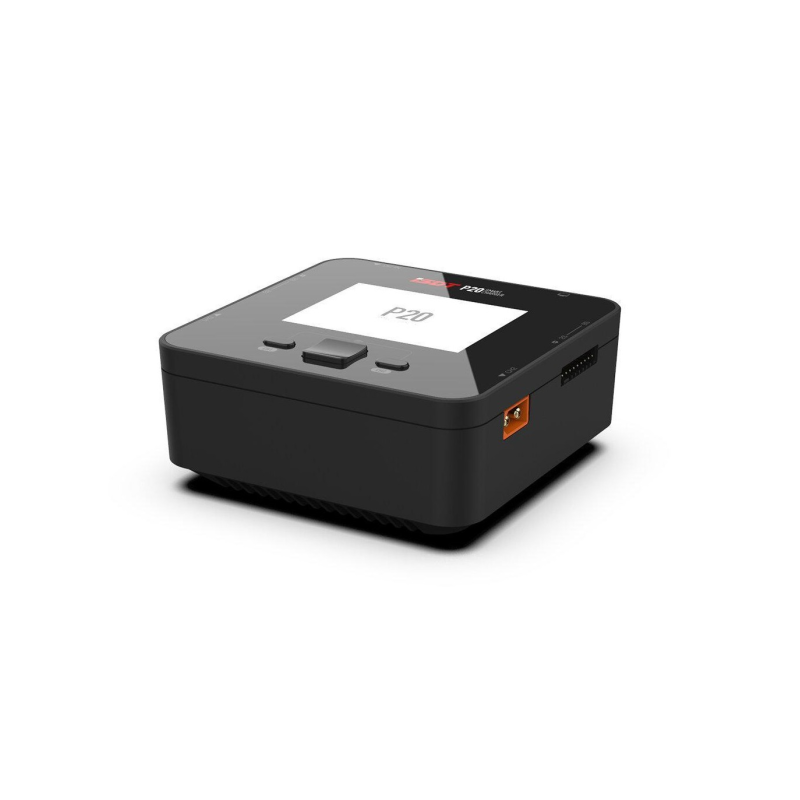

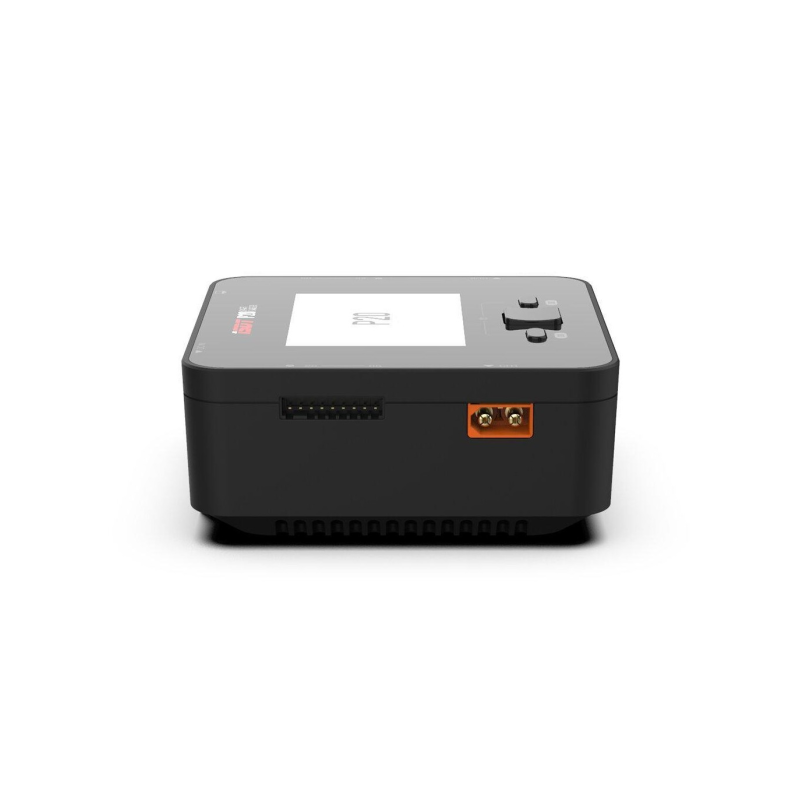

ISDT P20 500W 20A x 2 Dual Channel Smart Charger

Brand: iSDT

Category: Drones & Quadcopters > Drone Components > Chargers

Product Description: The ISDT P20 is a compact and powerful dual-channel smart charger designed for drone enthusiasts and professionals who require high performance in a small form factor. The device combines the ability for each channel to operate independently or for synchronous charging with increased total power, features a robust magnesium alloy casing, and an efficient cooling system thanks to well-designed air convection. The 3.5-inch high-resolution IPS display provides convenient viewing of all parameters, while Bluetooth support via the BattGO system and the official ISDT mobile app unlocks additional remote control and firmware update capabilities.

Key Advantages

• Dual-channel design: each channel operates independently, or synchronous mode can be enabled for increased power up to 35A.
• High power: up to 500W per channel, up to 800W in synchronous mode for fast charging of large batteries.
• Compact and durable: magnesium alloy casing ensures optimal heat dissipation and durability in field conditions.

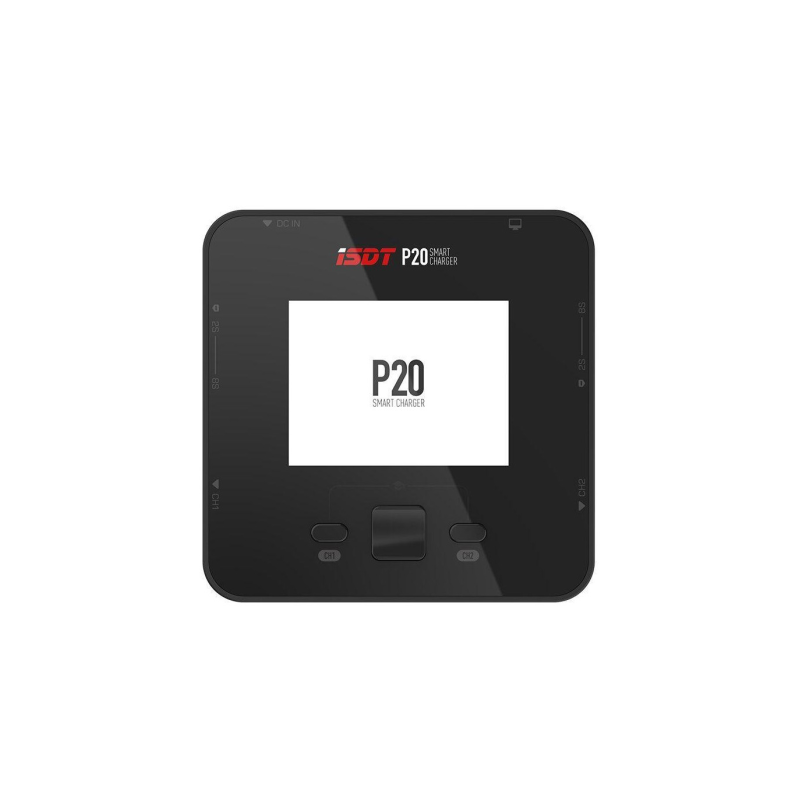

• Bright display: 3.5-inch IPS screen conveniently displays voltage, current, remaining capacity, and other charging parameters.
• Wireless connectivity: Bluetooth support via BattGO for remote monitoring, settings, and updates via the official ISDT app.

Technical Specifications

• Charge power: 500W per channel, 800W in synchronous mode
• Charge current: 0.2–20A per channel, 0.2–35A in synchronous mode
• Input voltage: 10–34V DC
• Maximum input current: 35A
• Balance current: 1.5A
• Discharge power: 15W per channel
• Discharge current: 0.2–1.5A per channel
• Supported battery chemistries: LiFe / Li-Ion / LiPo 1–8S, LiHV 1–7S, Pb (lead-acid) 1–12S, NiMH / NiCd 1–16S
• Dimensions: 105×105×47 mm
• Weight: 350 g

Package Contents: ISDT P20 500W 20A x 2 Dual Channel Smart Charger

The ISDT P20 is ideal for both home and field use thanks to its compact dimensions and light weight. The robust magnesium casing and well-designed convection ensure efficient cooling even during intensive operation. The intuitive 3.5-inch IPS display allows for easy monitoring of the charging process, while BattGO and Bluetooth support enable remote monitoring and control via the ISDT mobile app.

The charger supports a wide range of batteries, including high-voltage LiPo (LiHV), lead-acid batteries, and NiMH/NiCd batteries, providing precise cell balancing and flexible current and power adjustment to suit your needs. Thanks to its wide input voltage range and high maximum input current, the device withstands demanding operating conditions and quickly restores battery capacity for subsequent flights.

This charger will be a reliable solution for drone operators, FPV pilots, battery service workshops, and anyone who values a combination of power, compactness, and modern control features.
