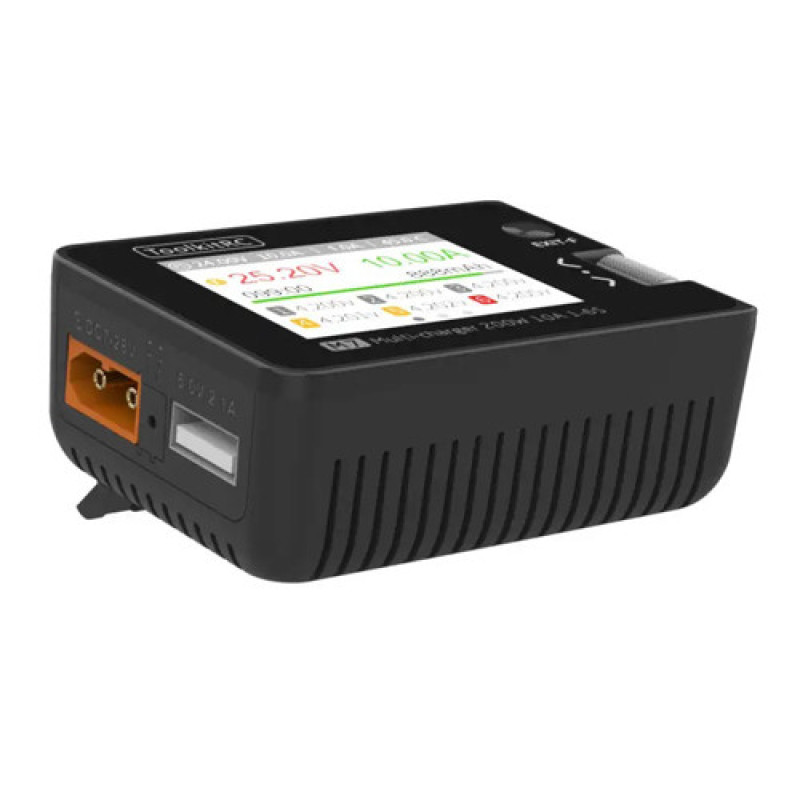

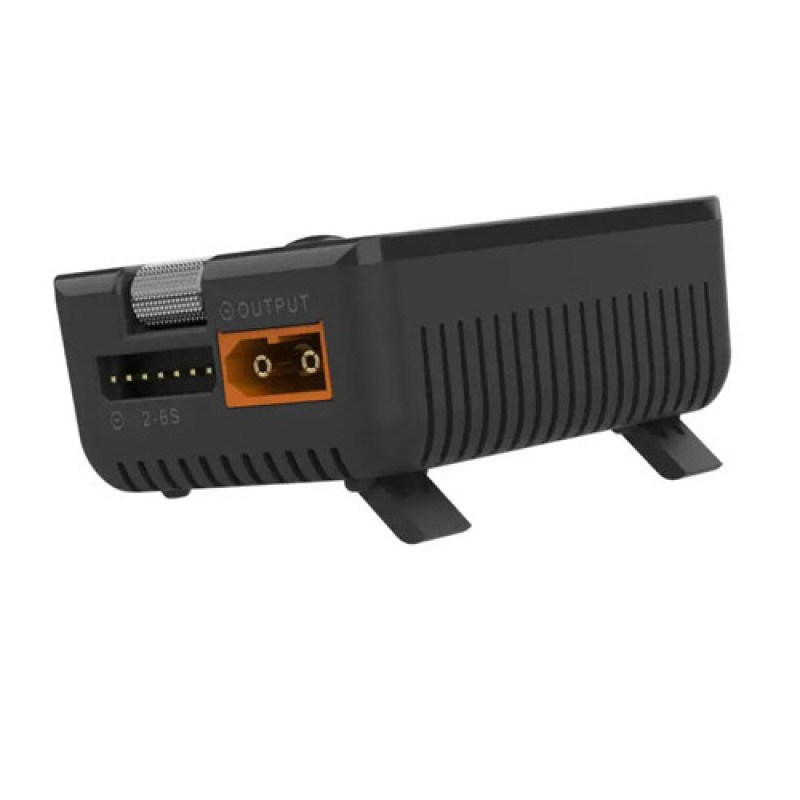

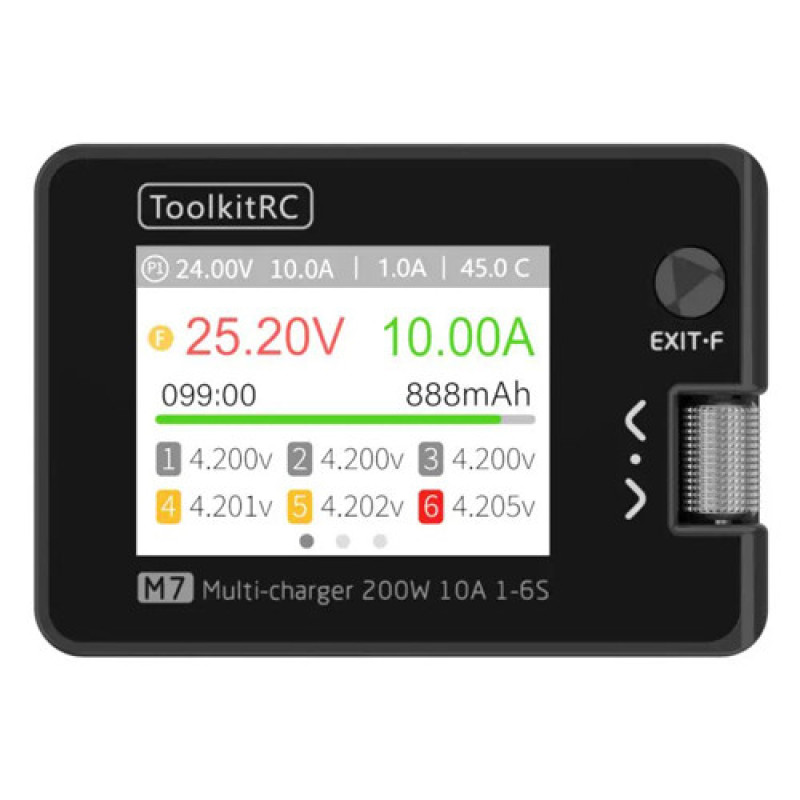

The compact and multifunctional ToolkitRC M7 charger not only offers high charging power but also a wide range of additional features. The wide-angle and bright 2'' IPS color display with a simplified interface is perfect for outdoor use, and charging parameters are controlled via a convenient scroll wheel.
Among the additional features of this model, it is worth highlighting the servo tester, battery cell health check, wattmeter, PWV/PPM/S.Bus input testers, and a power supply with variable and constant voltage.
To enter the device's setup mode, press and hold the scroll wheel for a few seconds.

Input voltage: 7-28 V
Max charge power: 200 W
Charge current: 0.1-10 A
Max discharge power: 10 W, 3 A in Normal mode / 200 W, 10 A in Recycle mode
Compatible battery types:

LiPo, LiHV, LiFe, Lion: 1-6S
NiMh: 1-16S
Pb: 1-10S

USB port 5 V, 2.1 A (USB-A to USB-A cable, ~10 cm long, included)
Built-in active cooling
Interface language: English
Dimensions: 73 x 51 x 27 mm
Weight: 90 g

Input parameters:

PWM: 880-2200 µs / 20-400 Hz
PPM: 880-2200 µs, 8 channels / 20-50 Hz
S.Bus: 880-2200 µs, 16 channels / 20-100 Hz
Voltage: 1-5 V / 1-6 cells
Resistance: 10-99 mOhm / 1-6 cells

Output parameters:

PWM: 500-2500 µs / 20-1000 Hz
PPM: 880-2200 µs, 8 channels / 20-50 Hz
S.Bus: 880-2200 µs, 16 channels / 20-100 Hz
Power supply mode: 1-10 A / 1-28 V (CC + CV mode)
