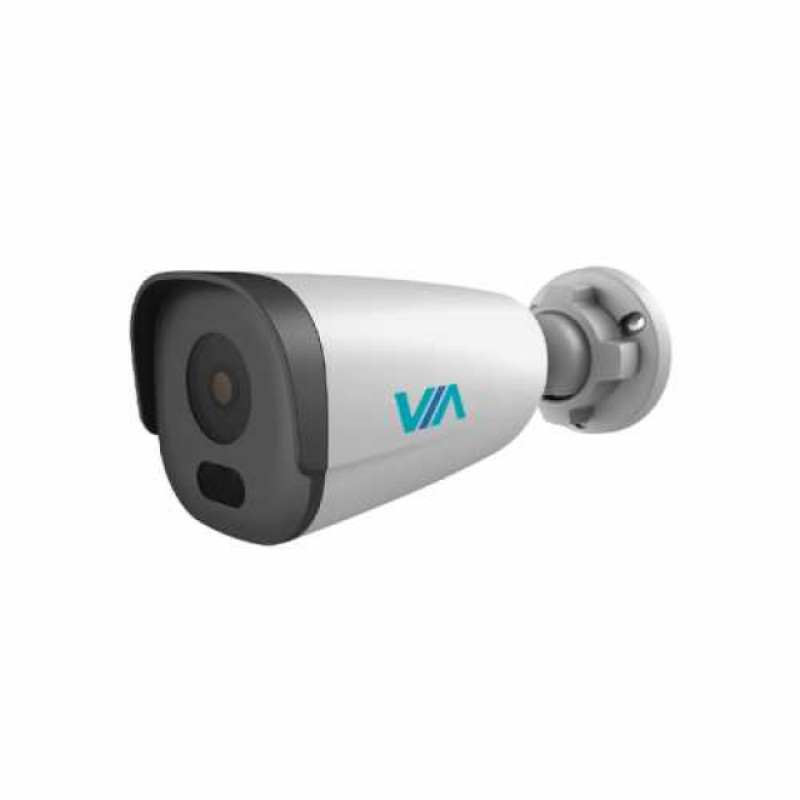

VS-B24AS. 4 MP Fixed IR Camera

VS-B24AS. 4 MP Fixed IR Camera by Hikvision

Model: VS-B24AS. 4 MP Fixed IR Camera. Manufacturer: Hikvision. Category: Electronics > Video Surveillance > Video Cameras. This compact and reliable camera is ideal for 24/7 surveillance in both outdoor and indoor environments, thanks to its IP67 protection rating and infrared illumination up to 50 meters.

Key Features

• Resolution: 4 MP (max 2688×1520 at 25 fps).
• Sensor: 1/2.7" CMOS.
• Lens: 2.8 mm with an approximate 104° viewing angle.
• Infrared Illumination: Up to 50 m for high-quality night video.
• Video Compression: S+265, H.265, H.264B, H.264M, H.264H.

Image Processing Functions

The camera is equipped with a wide range of image enhancements: WDR (Wide Dynamic Range) for correcting high-contrast scenes, 3D DNR for noise reduction in low-light conditions, HLC for suppressing bright light sources, and BLC for compensating strong backlighting.

Analytics and Alarms

The device supports analytics and notification functions: motion detection, tamper alarm, disk full warning, disk read/write errors, IP address conflict, line crossing, and perimeter protection. This ensures prompt notification of suspicious events and allows for configuring automatic reactions for quick response.

Memory, Power, and Protection

Local Micro SD card support (max 512 GB) is available for storing video archives. Power supports the IEEE 802.3af (PoE) standard, with consumption up to 7 W, simplifying installation and power supply via a single cable. The camera body has an IP67 protection rating, guaranteeing resistance to dust and moisture.

Application

The VS-B24AS is suitable for perimeter control, building facades, parking lots, entrances, and indoor premises where high resolution, night vision, and reliable event analytics are required. Thanks to its wide 104° viewing angle and 4 MP detail, it allows capturing important details at a distance.

The description provides all technical parameters: 4 MP resolution (2688×1520, 25 fps), 1/2.7" CMOS sensor, 2.8 mm lens (104° viewing angle), S+265/H.265/H.264B/H.264M/H.264H codecs, IR illumination up to 50 m, image functions WDR, 3D DNR, HLC, BLC, analytics and alarms (motion detection, tamper alarm, disk full, disk read/write error, IP address conflict, line crossing, perimeter), Micro SD support up to 512 GB, IEEE 802.3af power (max 7 W), IP67 protection rating. This information allows for an informed choice when setting up a video surveillance system.
