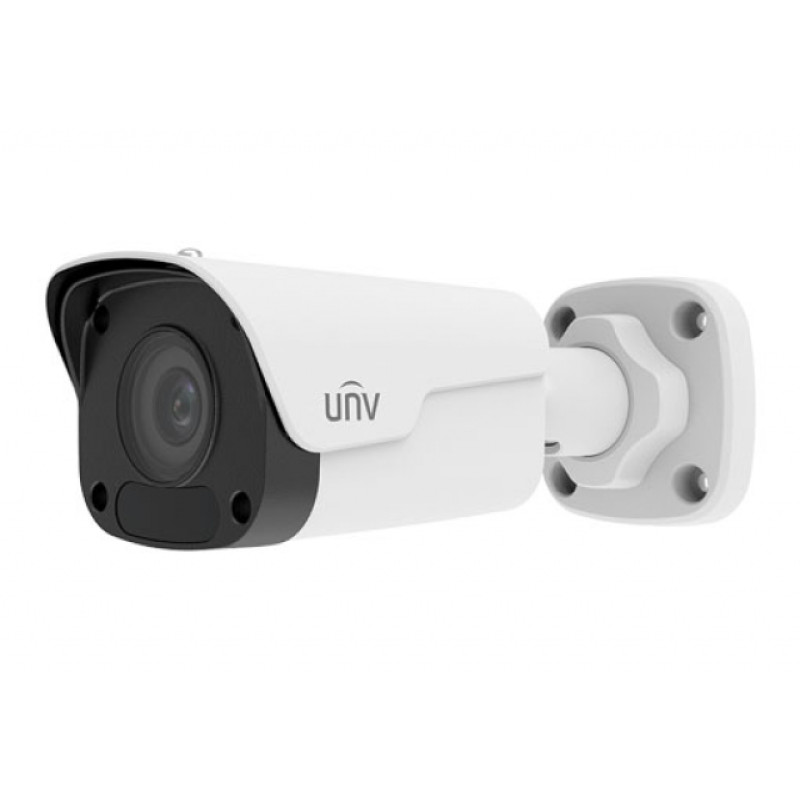

Univew IPC2124LR3-PF28M-D video camera
Univew IPC2124LR3-PF28M-D — 4 MP IP Video Camera for Reliable Video Surveillance
The Univew IPC2124LR3-PF28M-D IP video camera combines high resolution and modern network capabilities, making it an ideal choice for building video surveillance systems in offices, stores, manufacturing facilities, and private properties. Thanks to its 4 MP sensor and progressive scanning, it provides clear images under various lighting conditions and economical storage of recordings due to efficient codecs.
The camera's key technical specifications ensure balanced operation: a 1/3` Progressive CMOS sensor, H.265/H.264 compression support for optimizing network bandwidth and disk space, and an f=2.8 mm lens with a wide 104.4° viewing angle, allowing large areas to be monitored without additional devices. A sensitivity of 0.03 Lux at F2.0 in color mode provides an acceptable image in low light, and with IR illumination enabled, the camera operates at 0 Lux, though night vision range is limited to 30 meters.
Recording is performed at up to 20 frames per second at 4Mp (2592x1520) resolution, allowing for detailed capture of movement and faces. The camera has reliable dust and moisture protection according to the IP67 standard, ensuring outdoor operation in any weather. For connection, traditional DC 12V power with 5W consumption or convenient PoE (802.3af) technology is available, simplifying installation and reducing the number of cables.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Univew IPC2124LR3-PF28M-D |
| Brand | Univew |
| Category | Electronics > Video Surveillance > Video Cameras |
| Resolution | 4 MP (2592x1520) |
| Sensor | 1/3` Progressive CMOS |
| Compression | H.265 / H.264 |
| Lens | f=2.8 mm (104.4° viewing angle) |
| Sensitivity | 0.03 Lux / F2.0 (color), 0 Lux with IR |
| IR Illumination | 30 meters |
| Recording | 20 fps @ 4Mp (2592x1520) |
| Protection | IP67 |
| Power Supply | DC 12V / 5W, PoE (802.3af) |
| Dimensions | 165x63.1x62.5 mm |
| Weight | 450 g |
This camera is well-suited for organizing video surveillance both indoors and outdoors: its wide viewing angle reduces the number of cameras required, and H.265 support lowers archive storage costs. The robust IP67-rated housing guarantees stable operation in rain, dust, and temperature fluctuations. The PoE option simplifies installation in locations where centralized power via a network cable is convenient.
- High Resolution: Clear 4 MP image for detailed identification;
- Efficient Compression: H.265/H.264 for saving space and bandwidth;
- Versatile Power: DC 12V or PoE (802.3af) for flexible installation;
- Reliable Protection: IP67 for outdoor use;
- Night Vision: IR illumination up to 30 m for nighttime monitoring.
Univew IPC2124LR3-PF28M-D is a practical solution for those seeking a balance between video quality, construction reliability, and ease of integration into a network system. If you need a camera with a wide viewing angle, night vision, and Power over Ethernet capability, this model is worth considering.
