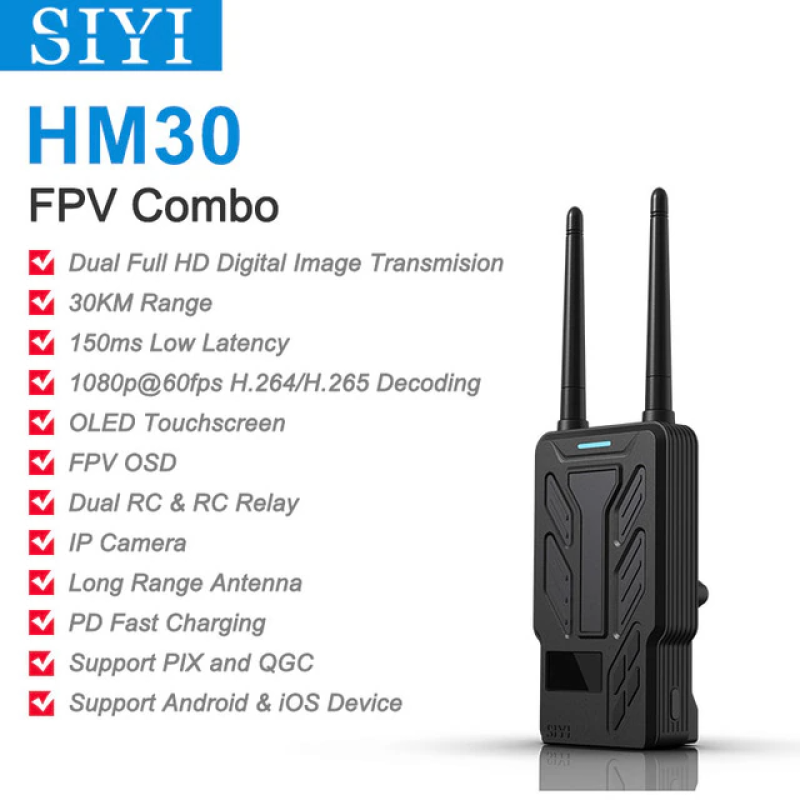

SIYI HM30 IP Camera Video System — Digital Full HD Transmission for Drones
The SIYI HM30 from the SIYI brand (manufacturer: SIYI Technology) is a full-featured digital Full HD video transmission system designed specifically for drones, FPV solutions, and industrial applications. The device provides stable 1080p video transmission with a minimal latency of approximately 150 ms and a theoretical operating range of up to 30 km under favorable conditions, making the HM30 an excellent choice for professional aerial videography, infrastructure inspection, and unmanned operations.
Key Features and Benefits
- Digital Full HD Transmission: 1080p video stream with minimal latency of ~150 ms ensures high-quality and clear images.
- Range: Standard omnidirectional antennas provide a range of up to 15 km; with a Long Range antenna, the range can be doubled.
- Dual RC: Supports connecting two transmitters to one receiver for simultaneous flight and payload control.
- Intelligent Frequency Scanning: Automatic selection of the least noisy bands for stable transmission even in complex RF environments.
- Ease of Control: The ground receiver's OLED touchscreen displays real-time connection status and simplifies parameter settings.
- Power Supply: The transmitter's power source features a quick-release mechanism for common batteries (e.g., NP-F550); the ground unit's technical data indicates support for the NP-F970 battery.
Ground Unit Technical Specifications
| Parameter | Value |
|---|---|
| Operating Time Monitor | 0.96′ OLED screen |
| Dimensions (without antenna and battery) | 109 x 61 x 28 mm |
| Weight (without antenna and battery) | 132 g |
| Operating Temperature | -10°C ~ 50°C |
| Supported Battery | NP-F970 |
Air Unit Technical Data
| Parameter | Value |
|---|---|
| Output Signal | 16CH SBUS, 5CH PWM |
| Interfaces | SBUS (remote control signal output), UART (data channel output to FC), PWM (PWM output signal CH1–CH5), Ethernet (video stream input), Type-C (firmware update) |
| Dimensions (without antenna, fan included) | 70 x 55 x 24 mm |
| Weight (without antenna, fan included) | 74 g |
| Antenna Gain | 5 dBi |
| Operating Voltage | 11 ~ 16.8 V (expandable to 14 ~ 58.8 V with BEC) |
| Telemetry — Voltage | 15 – 50 V |
| Operating Temperature | -10°C to 50°C |
SIYI HM30 FPV Camera Specifications
| Parameter | Value |
|---|---|
| Camera Angle (FOV) | 120° |
| Resolution | max. 1080p at 30 fps (Full HD) |
| Dimensions | 42 x 42 x 25 mm |
| Weight | 23 g |
| Operating Temperature | -10°C to 50°C |
SIYI HM30 Fly More Combo Contents
| Component | Quantity, pcs. |
|---|---|
| HM30 Ground Unit | 1 |
| HM30 Air Unit | 1 |
| IP Camera | 1 |
| Quick Release Battery | 1 |
| PD Fast Charger | 1 |
| Long Range Antennas | 2 |
The SIYI HM30 combines compact size, low weight, and a wide range of interfaces, making the system versatile for various tasks: drone cinematography, video surveillance, industrial inspection, payload operations, and complex FPV projects. The ground unit with a 0.96′ OLED screen allows visual monitoring of the connection status, while the Air Unit ensures integration with control equipment (SBUS, UART, PWM) and receives video streams via Ethernet. Operating temperatures from -10°C to 50°C guarantee operation in most flight conditions.
The technical parameters listed above include dimensions and weight: Ground Unit — 109 x 61 x 28 mm, 132 g (without antenna and battery); Air Unit — 70 x 55 x 24 mm, 74 g (without antenna, fan included); FPV camera — 42 x 42 x 25 mm, 23 g. Air Unit antenna gain — 5 dBi. Air Unit power supports 11 ~ 16.8 V with the possibility of expansion to 14 ~ 58.8 V using BEC, and telemetry records voltage in the range of 15–50 V.
The Fly More Combo includes the SIYI HM30 ground and air units, an IP camera, one Quick Release Battery platform, a PD fast charger, and two long-range antennas. This configuration allows for quick preparation of the system for flight and operation in field conditions.
Product category: Drones & Quadcopters > Transmitters. You can purchase the SIYI HM30 in our store with delivery across Ukraine. If you need reliable digital Full HD video transmission with low latency and extensive functionality — the SIYI HM30 will be an excellent choice.
