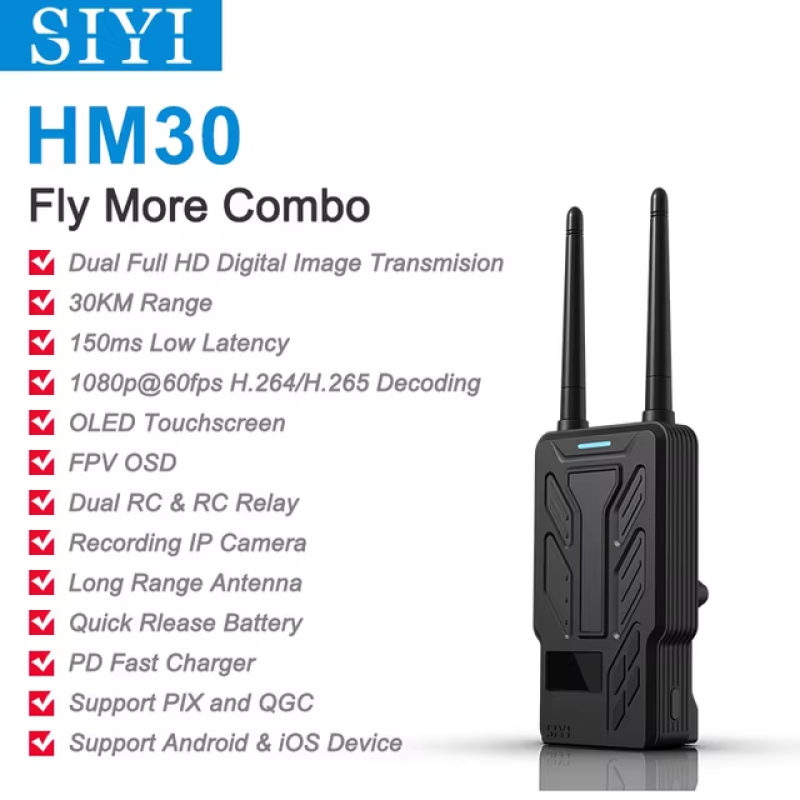

Video System with IP Camera SIYI HM30
The SIYI HM30 ground video system is a professional solution for real-time Full HD video transmission for FPV, commercial drones, unmanned vehicles, boats, and robotics. The system provides a 1080p (Full HD) video stream with approximately 150 ms latency and a maximum transmission range of up to 30 km. The standard package includes omnidirectional antennas, providing up to 15 km of coverage; with Long Range antennas, the transmission range can be doubled, ensuring reliable communication over long distances.
The SIYI HM30 transmitter is designed by SIYI Technology and is aimed at professional operators: the system supports the Dual RC function, which allows two transmitters to be connected to one receiver for simultaneous control of the aircraft and payload. The convenient OLED touchscreen displays real-time connection status and allows for quick adjustment of settings. The transmitter's power source is equipped with a Quick Release battery mechanism for standard batteries, such as NP-F550; the NP-F970 battery is recommended and supported for the ground unit.
Technical Specifications of SIYI HM30 Ground Unit
| Parameter | Value |
|---|---|
| Operating Time Monitor | 0.96′ OLED screen |
| Dimensions (without antenna and battery) | 109 x 61 x 28 mm |
| Weight (without antenna and battery) | 132 g |
| Operating Temperature | -10°C ~ 50°C |
| Supported Battery | NP-F970 |
Technical Data of SIYI HM30 Air Unit
| Parameter | Value |
|---|---|
| Output Signal | 16CH SBUS, 5CH PWM |
| Interfaces | SBUS (remote control signal output), UART (data channel output to FC), PWM (PWM CH 1–5 output signal), Ethernet (video stream input), Type-C (firmware update) |
| Dimensions (without antenna, fan included) | 70 x 55 x 24 mm |
| Weight (without antenna, fan included) | 74 g |
| Antenna Gain | 5 dBi |
| Operating Voltage | 11 ~ 16.8 V (expandable to 14 ~ 58.8 V with BEC) |
| Telemetry Voltage | 15 – 50 V |
| Operating Temperature | -10°C to 50°C |
Technical Data of SIYI HM30 FPV Camera
| Parameter | Value |
|---|---|
| Camera Angle (FOV) | 120° |
| Resolution | max. 1080p at 30fps (Full HD) |
| Dimensions | 42 x 42 x 25 mm |
| Weight | 23 g |
| Operating Temperature | -10°C to 50°C |
SIYI HM30 Fly More Combo Package Contents
| Component | Quantity, pcs. |
|---|---|
| HM30 Ground Unit | 1 |
| HM30 Air Unit | 1 |
| IP Camera | 1 |
| Quick Release Battery | 1 |
| PD Fast Charger | 1 |
| Long Range Antennas | 2 |
SIYI HM30 is an optimal and reliable solution for those who need stable image and telemetry transmission over long distances. Low latency (~150 ms), Dual RC support, intuitive OLED interface, and range extension capability make the kit an ideal choice for professional FPV pilots and engineers using drones in industrial or commercial tasks. Manufacturer: SIYI. Product category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Transmitters. You can purchase SIYI HM30 in our DroneHub store with delivery throughout Ukraine.
