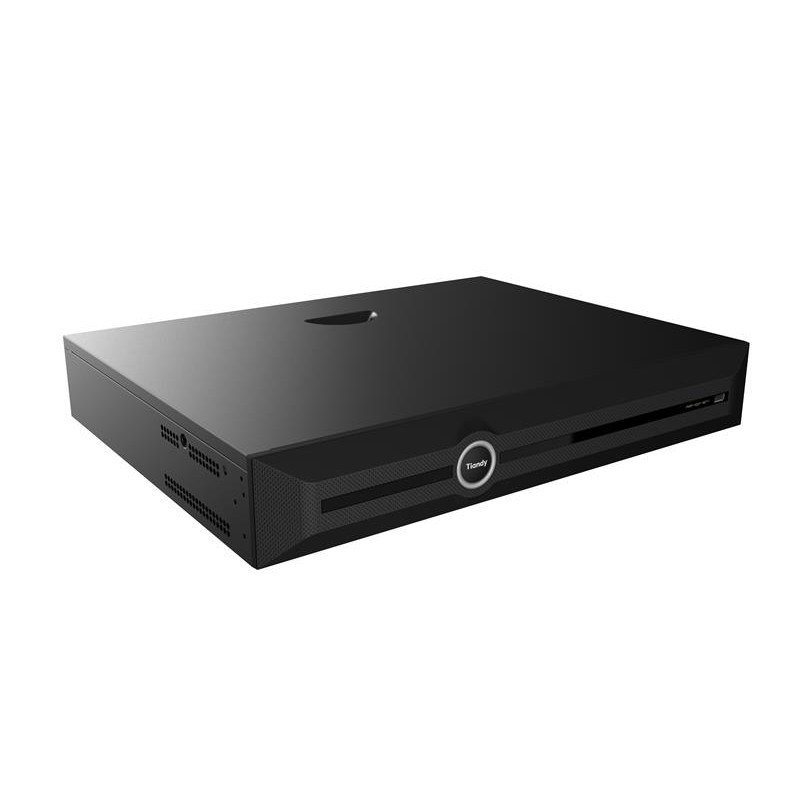

Tiandy TC-R3440 Spec:I/B/N/V4.0

H.265 4HDD 40-Channel Pro Series NVR

• Supported camera resolution: up to 16MP
• Input/Output bandwidth: 400 Mbps / 400 Mbps
• 1×USB2.0; 1×USB3.0
• 1×HDMI; 1×VGA
• 2×RJ-45, 10/100/1000 Mbps self-adaptive network
• 4×SATA interfaces up to 10TB per HDD (Disk array – 4 disks JBOD, RAID0-10)
• 1×eSATA
• 1×RS232; 1×RS485
• Operating conditions -10º~55º
• DC12V, 5A

HD Input

• Video formats S+265/H.265/ S+264/H.264
• Ability to connect third-party ONIF, RTSP network cameras
• Supports live view, storage, and playback of connected cameras with resolutions up to 16 MP
• 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8, 3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×32, 4CIF(30fps)×40

HD Output

• 1×HDMI 4K and 1×VGA simultaneous outputs
• 16MP(30fps)×2, 12MP(30fps)×3, 8MP(30fps)×4, 6MP(30fps)×4, 5MP(30fps)×6, 4MP(30fps)×8, 3MP(30fps)×9, 1080P(30fps)×16, 720P(30fps)×16

Various Applications

• Centralized management of IP cameras, including configuration, import/export of information, real-time information display, updates
• Supports camera analytics: Line crossing; Double crossing; Perimeter; Object left; Object missing; Loitering; Running; Parking; Heat map; Abnormal video; Abnormal audio; License plate recognition; On-duty detection; Crowd detection; Parking guard; Safety helmet detection; Electric bicycle detection; People counting; PTZ camera tracking link; Smoke and fire detection; Ambient temperature measurement; Face detection; Human body temperature measurement; Smart motion; Face recognition; Human/vehicle classification
• Intelligent archive search: Heat map; Early warning search; Behavior search; License plate search; Safety helmet search; Thermographic search; On-duty search; Electric bicycle search; Face search.
• Face search attributes: Gender; Age; Glasses; Face mask; Body temperature, Up to 300 face libraries; Up to 100,000 base images; Face image comparison (cooperation with face recognition IPC)
• Web6 supports plugin-free viewing and can view video in all browsers
• Supports cloud upgrade
