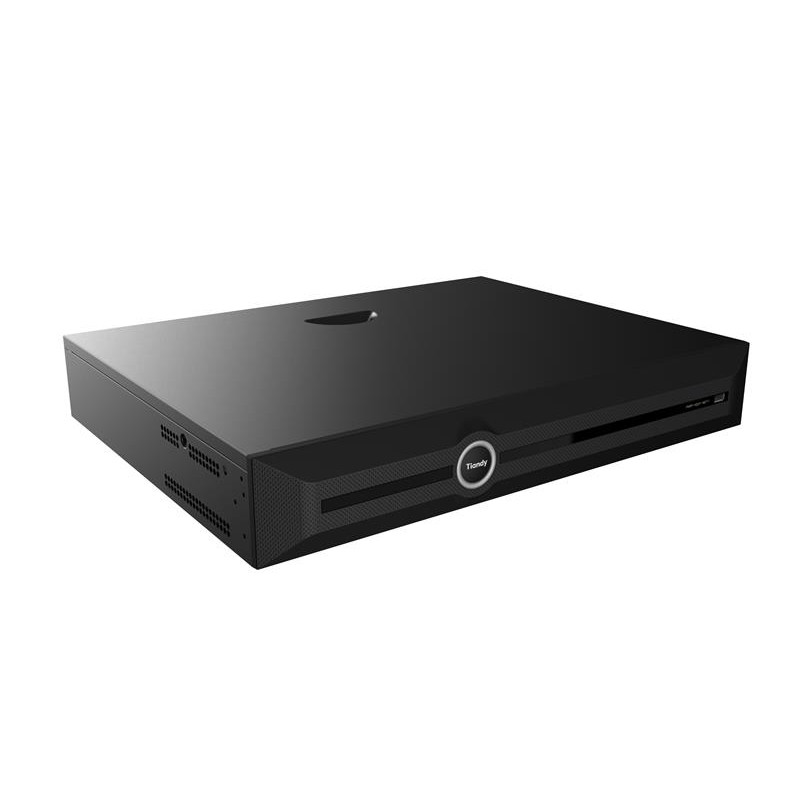

Tiandy TC-R3432 Spec:I/B/K/V3.1

H.265 4HDD 32-Channel Pro Series NVR

• Supported camera resolution: up to 8MP
• Input/Output bandwidth: 160 Mbps / 48 Mbps
• 1×USB2.0; 1×USB3.0
• 1×HDMI; 1×VGA
• 2×RJ-45, 10/100/1000 Mbps self-adaptive network
• 4×SATA interfaces up to 10TB per HDD
• Operating conditions -10º~55º
• DC12V, 5A

HD Input

• Video formats S+265/H.265/ S+264/H.264
• Ability to connect third-party ONIF, RTSP network cameras
• Supports real-time viewing, storage, and playback of connected cameras with resolutions up to 16 MP
• 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×32

HD Output

• 1×HDMI 4K and 1×VGA simultaneous outputs
• 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16

Various Applications

• Centralized management of IP cameras, including settings, import/export of information, real-time information display, updates
• Supports camera analytics: Line crossing; Double crossing; Perimeter; Object left; Object missing; Loitering; Running; Parking; Heat map; Abnormal video; Abnormal audio; On-duty detection; Crowd detection; Safety helmet detection; People counting; PTZ camera tracking link; Smoke and fire detection; Ambient temperature measurement; Face detection; Human body temperature measurement; Smart motion; Human/vehicle classification
• Intelligent archive search: Heat map; Early warning search; Behavior search; Thermographic search; On-duty search; Face search.
• Face search attributes: Gender; Age;
• Web6 supports plugin-free viewing and can view video in all browsers
• Supports cloud upgrade
