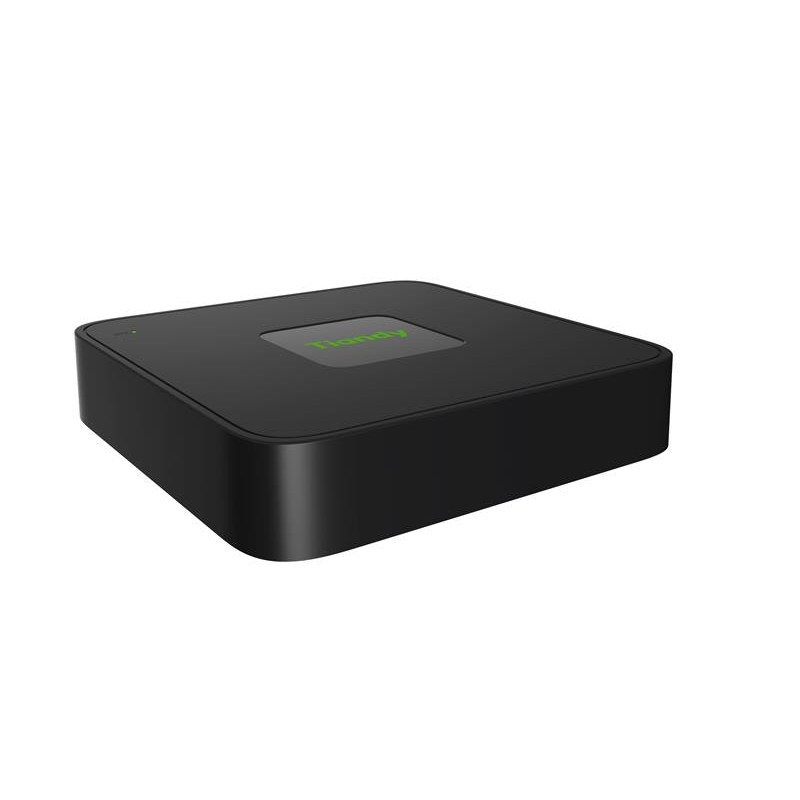

Tiandy TC-R3110 Spec:I/B/P8/Eu/L/S/V2.0

H.265 1HDD 10-Channel PSE Spark Series NVR

• Supported camera resolution: up to 6MP
• Input/Output bandwidth: 60 Mbps / 40 Mbps
• 1 SATA up to 6 TB
• RJ45 10/100 Mbps
• PoE 8 x RJ45 10/100 Mbps 30 W
• Operating conditions -10º~55º
• DC48V 1.875A

HD Input

• PoE port: 8×RJ45 self-adaptive 10/100 Mbps
• PoE power per port: 30W, PoE budget: 70W, IEEE 802.3 af/at
• Video formats S+265/H.265/ S+264/H.264
• Ability to connect third-party network cameras
• Supports real-time viewing, storage, and playback of connected cameras with resolution up to 6 MP
• 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×10

HD Output

• 1×HDMI 4K and 1×VGA simultaneous outputs
• 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4

HD Storage

• 1 SATA interface, up to 6 TB per 1 HDD

HD Transmission

• 1×RJ45 self-adaptive 10/100 Mbps network

Ports

• 2×USB2.0
• 1×HDMI 1×VGA
• 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
• 1×SATA interface

Various Applications

• Centralized management of IP cameras, including configuration, import/export of real-time information display, updates
• Analytics support: Motion Detection, Smart Motion
• Web6 supports plugin-free viewing and can view video in all browsers
• Cloud update support

Mobile software for viewing live and archived video, as well as managing video cameras and NVRs:

EasyLive mobile APP

iOS: EasyLive (iOS)

Android: EasyLive (Android)

Easy7 Smart Client Express software for video management based on macOS (64-bit) and Windows (64-bit) operating systems for Tiandy IP cameras, PTZ, NVR, XVR, decoders, etc. A maximum of 200 IP devices or 512 channels can be connected in Easy7 Smart Client Express. It supports functions such as preview, playback, alarms, two-way audio, PTZ control, etc., and configurations such as device management, user management, storage, events, and NVR failover function.
