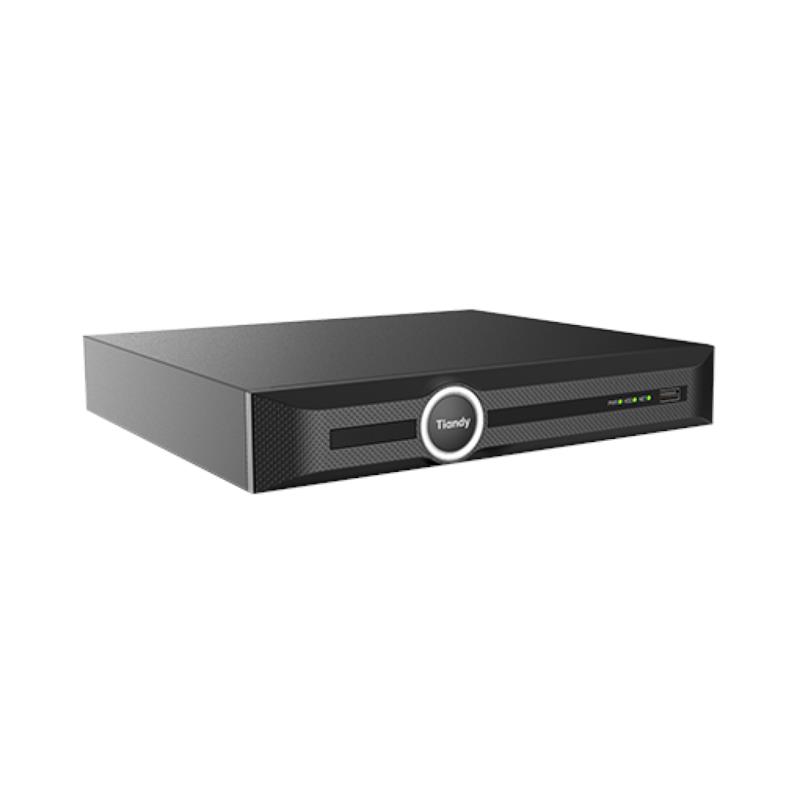

Tiandy TC-R3105 Spec:I/B/P4/K/V3.1

H.265 1HDD 5-channel PSE NVR

• 8MP
• 80 Mbps
• 1 SATA up to 10 TB
• PoE 4 x RJ45 10/100 Mbps 30 W
• Operating conditions -10º~55º
• DC48V, 1.35A

HD Input

8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×5, 720P(30fps)×5, 4CIF(30fps)×5; *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• PoE port: 4×RJ45 self-adaptive 10/100 Mbps
• Video formats S+265/H.265/H.264
• Ability to connect third-party network cameras
• Supports live view, storage, and playback of connected cameras with resolution up to 8 MP

HD Output

• 1×HDMI and 1×VGA simultaneous outputs
• HDMI video output with resolution up to 4K

HD Storage

• 1 SATA interface, up to 10 TB per 1 HDD
• S+265 compression effectively reduces storage space and costs by up to 75%

HD Transmission

• 1×RJ45 self-adaptive 10/100 Mbps network

Various Applications

• Centralized management of IP cameras, including configuration, import/export of real-time information display, updates
• Ability to connect to smart IP cameras from Tiandy, enabling VCA alarm recording, playback, and backup
• VCA detection alarm supported
• Web6 supports plug-in-free viewing and can view video in all browsers
• Cloud upgrade support

Mobile software for viewing live and archived video, and managing video cameras and NVRs:

EasyLive mobile APP

iOS: EasyLive (iOS)

Android: EasyLive (Android)

Easy7 Smart Client Express software for video management based on macOS (64-bit) and Windows (64-bit) operating systems for Tiandy IP cameras, PTZ, NVR, XVR, decoders, etc. A maximum of 200 IP devices or 512 channels can be connected in Easy7 Smart Client Express. It supports functions such as preview, playback, alarms, two-way audio, PTZ control, etc., and configurations such as device management, user management, storage, events, and NVR-based failover.
