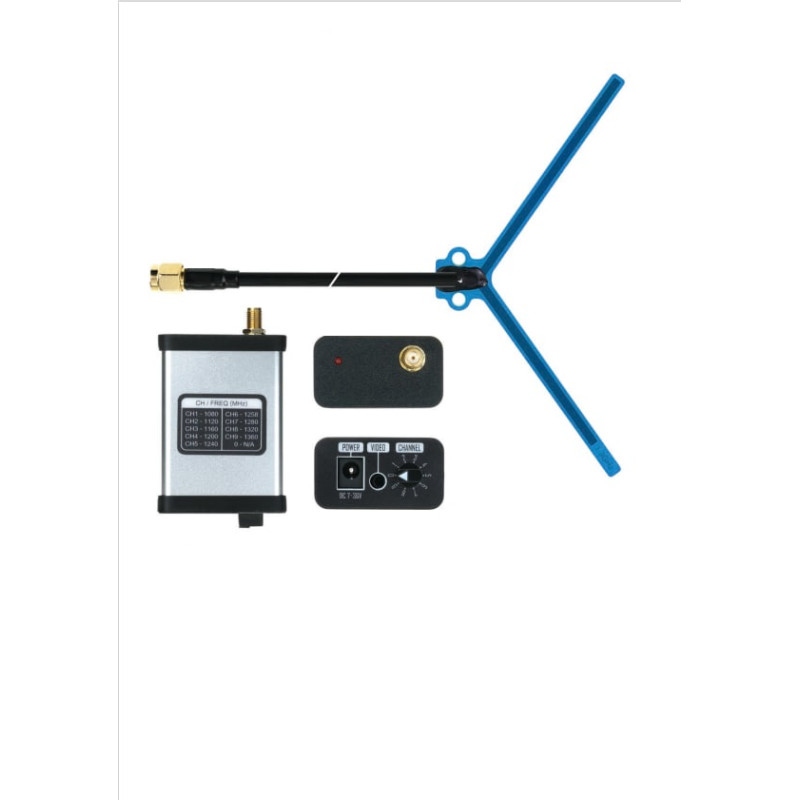

VRX-1G3 V2 1.2-1.3GHz Video Receiver
Overview: The VRX-1G3 V2 is a compact analog video receiver for FPV systems with a working range of 1.2–1.3 GHz. Designed for stable video signal reception during flights, competitions, and amateur use, this device ensures compatibility with CVBS PAL / NTSC formats and offers high reception sensitivity.
Manufacturer: China
Key Features
- 1.2–1.3 GHz operating range with adaptation to various environmental conditions.
- Reliable mechanical knob for quick and convenient channel switching without tools.
- Wide input voltage range: DC 7-36 V (supports 3-6S LiPo batteries) for compatibility with various platforms.
- Includes 1.5m power and video cables for easy connection to video equipment and power source.
The VRX-1G3 V2 is notable for its compactness and light weight: the receiver alone weighs 52g, with dimensions of 77.5 mm x 47 mm x 26 mm, making it an ideal choice for drones, quadcopters, and ground receivers where weight limitations and ease of integration are crucial. The mechanical encoder allows for quick channel adjustments directly in the field, without requiring additional equipment.
User Benefits
Low power consumption (maximum 150 mA at 12 V) ensures extended flights without significantly impacting the platform's overall autonomy. High reception sensitivity (-95 dBm) guarantees quality reception even of weak signals over long distances. The device is designed for operation in a wide temperature range from -10°C to +60°C, allowing its use in various climatic conditions and changing weather.

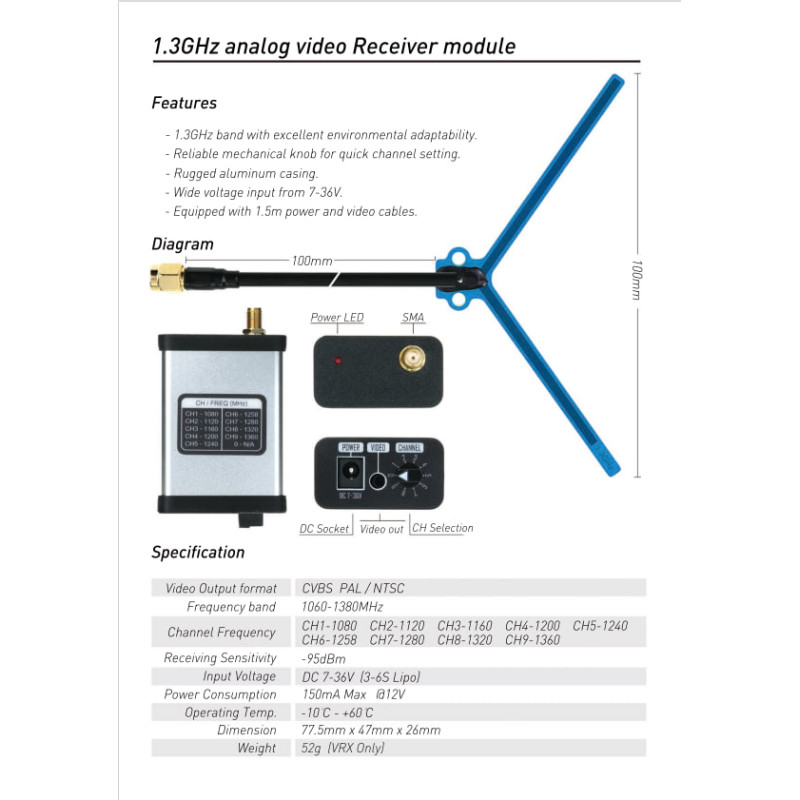

Technical Specifications
| Parameter | Value |
|---|---|
| Video Output Format | CVBS PAL / NTSC |
| Channel Frequencies | CH1-1080, CH2-1120, CH3-1160, CH4-1200, CH5-1240, CH6-1258, CH7-1280, CH8-1320, CH9-1360 |
| Reception Sensitivity | -95 dBm |
| Power Consumption | Max 150 mA at 12 V |
| Input Voltage | DC 7-36 V (3-6S LiPo) |
| Operating Temperature | -10°C to +60°C |
| Dimensions | 77.5 mm x 47 mm x 26 mm |
| Weight | 52 g (receiver only) |
The VRX-1G3 V2 is a practical and versatile solution for those seeking a reliable video receiver with easy integration into FPV systems. Its combination of a compact form factor, wide power range, and high sensitivity makes it suitable for both competitive and amateur flights. For compatible accessories, additional technical details, or compatibility questions, it is recommended to contact the seller or refer to the device's manual.
