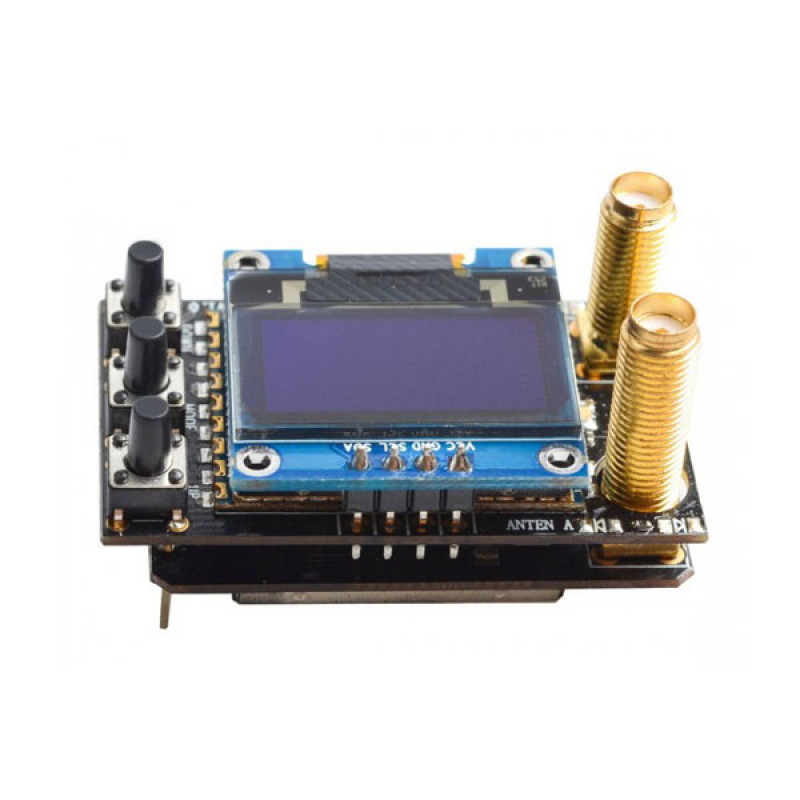

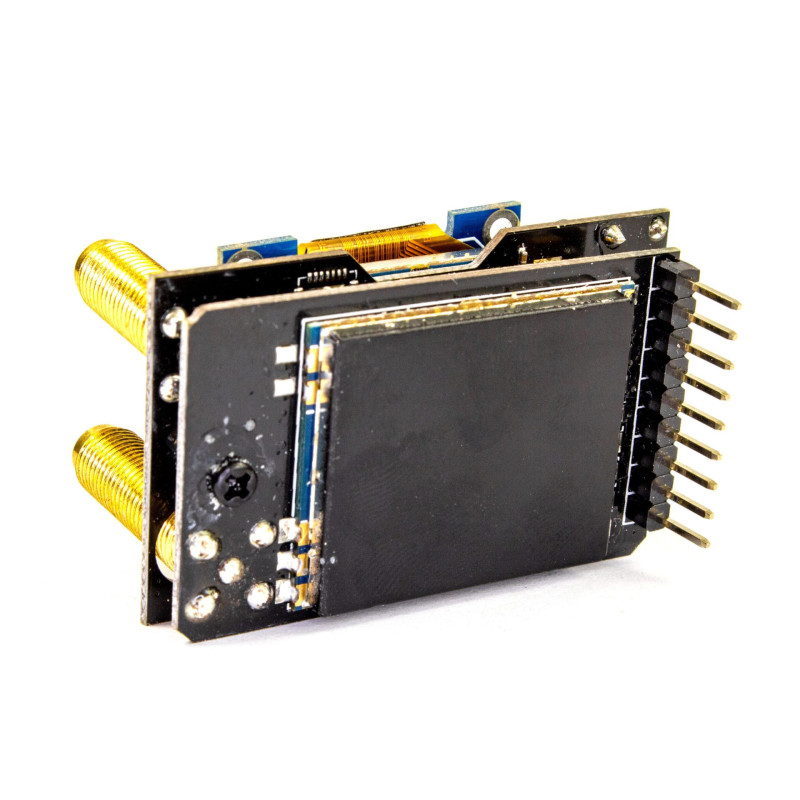

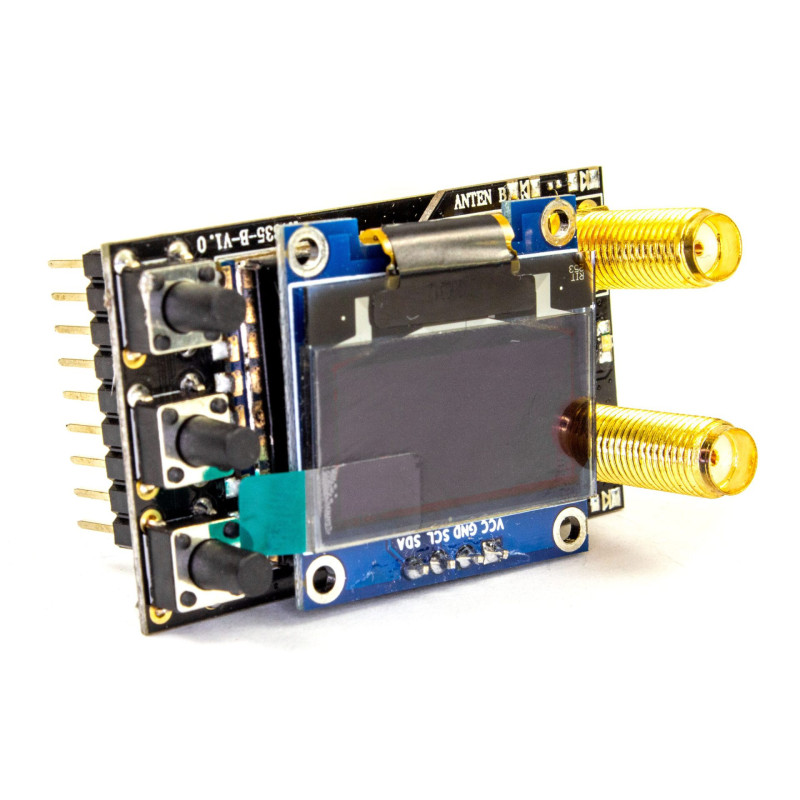

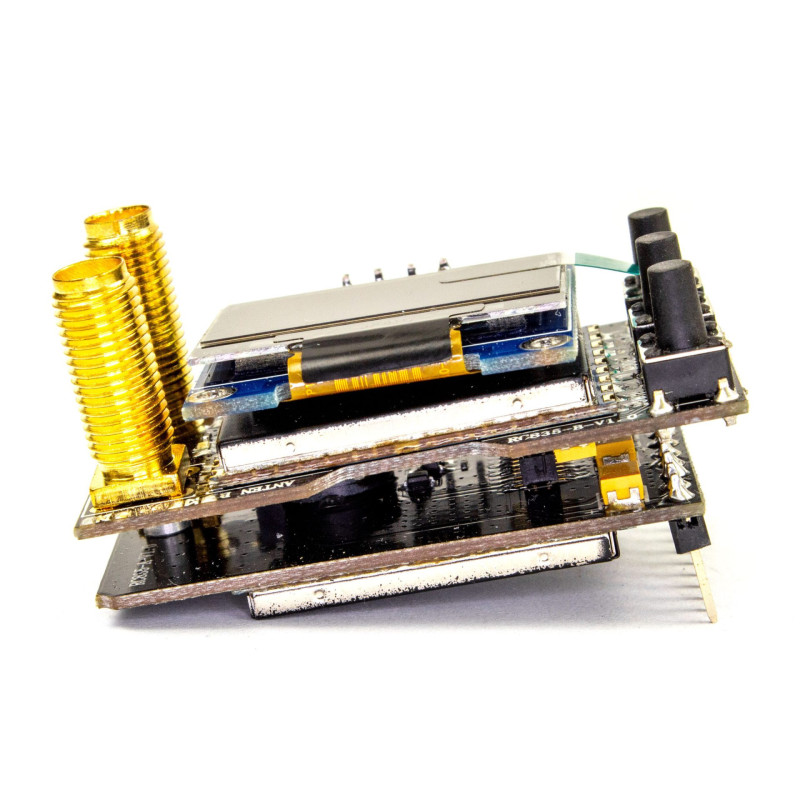

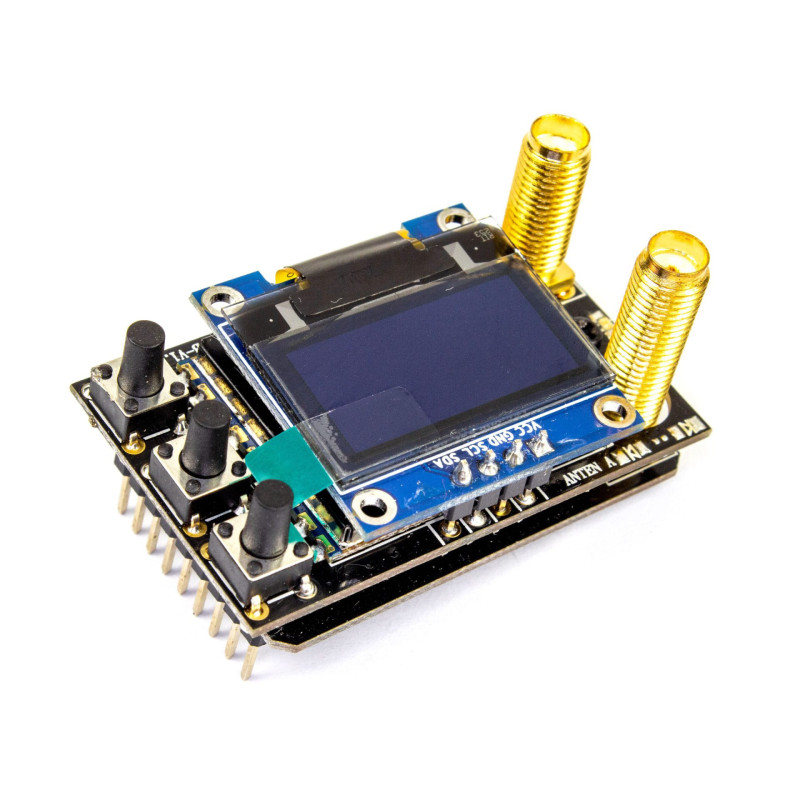

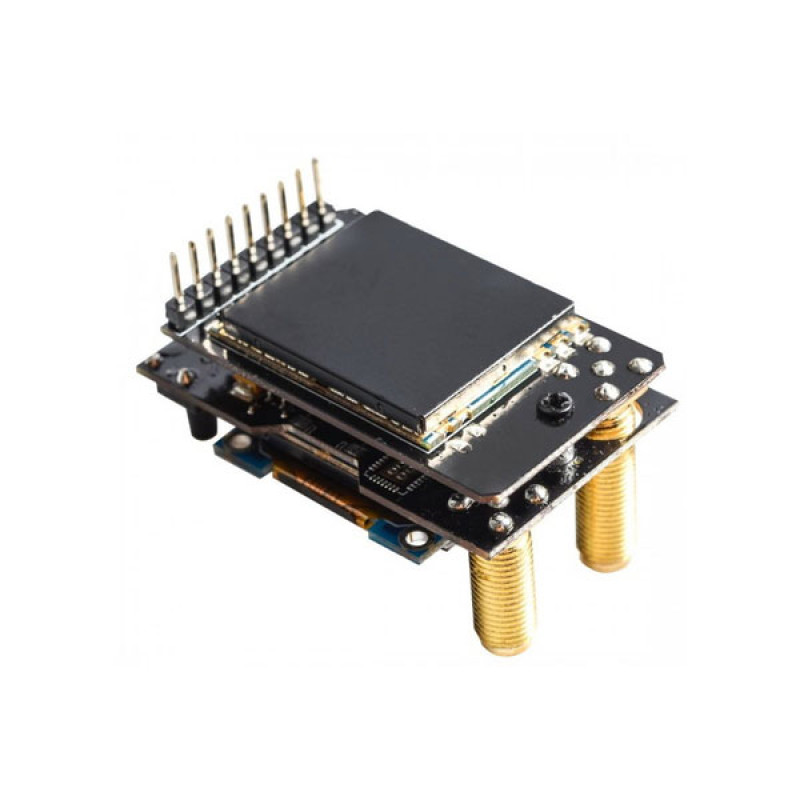

AKK Diversity RX 48-Channel 5.8G Video Receiver

Product Description: The AKK Diversity RX video receiver is a compact and reliable 5.8 GHz FPV system module, designed by the AKK brand for drone enthusiasts and racing pilots. With its Diversity mode and 48-channel support, this receiver ensures stable and clear video signal reception during races, freestyle flying, and training.

Key Features:

• Diversity mode with two RX antennas for improved signal stability and quality.
• Supports 48 channels on 5.8 GHz, including the popular Raceband for competitions.
• Convenient OLED screen for displaying settings, selected channel, and reception status.
• Built-in speaker for audio indication and sound alerts.
• Compact weight of 26.2 g, allowing easy integration into various goggles and helmets.

Technical Specifications:

• Frequency: 5.8 GHz.
• Sensitivity: -93 to -95 dBm for stable reception of weak signals.
• Number of Channels: 48 channels (including Raceband).
• Antenna Connector: SMA jack, compatible with most antenna-coaxial solutions.
• Input Voltage: 5 V.
• Current Consumption: at 5 V — 380-400 mA.
• Weight: 26.2 g.

Compatibility and Application:

The AKK Diversity RX module is compatible with a wide range of popular FPV goggles and helmets, making it a versatile choice for owners of modern systems. Specifically, it is suitable for installation in TopSky F7X, FatShark Dominators (Dominator / Dominator V2 / Dominator V3 / Dominator HD / Dominator HD V2 / Dominator HD V3 / Dominator SE) and the Attitude series (V3 / V4). This allows pilots to get a high-quality video stream without significantly increasing the weight and size of their equipment.

Package Contents:

• AKK Diversity RX Video Receiver — 1 pc.

The AKK Diversity RX 48-channel 5.8G video receiver combines an extended channel range, efficient Diversity mode, an informative OLED display, and a built-in speaker, making it an excellent choice for racing and freestyle pilots. Precise technical parameters (sensitivity from -93 to -95 dBm, current consumption 380-400 mA at 5 V, weight 26.2 g, and SMA connector) guarantee simple integration into most modern FPV systems without compromising signal quality.

User benefits: reliable reception in noisy and interference-prone environments, quick indication via OLED, audio alerts for status, and compactness for easy mounting in goggles and helmets.

By purchasing the AKK Diversity RX video receiver, you get a module optimized for competitions and intensive use — from training to races, with Raceband support and wide compatibility with well-known goggle models.
