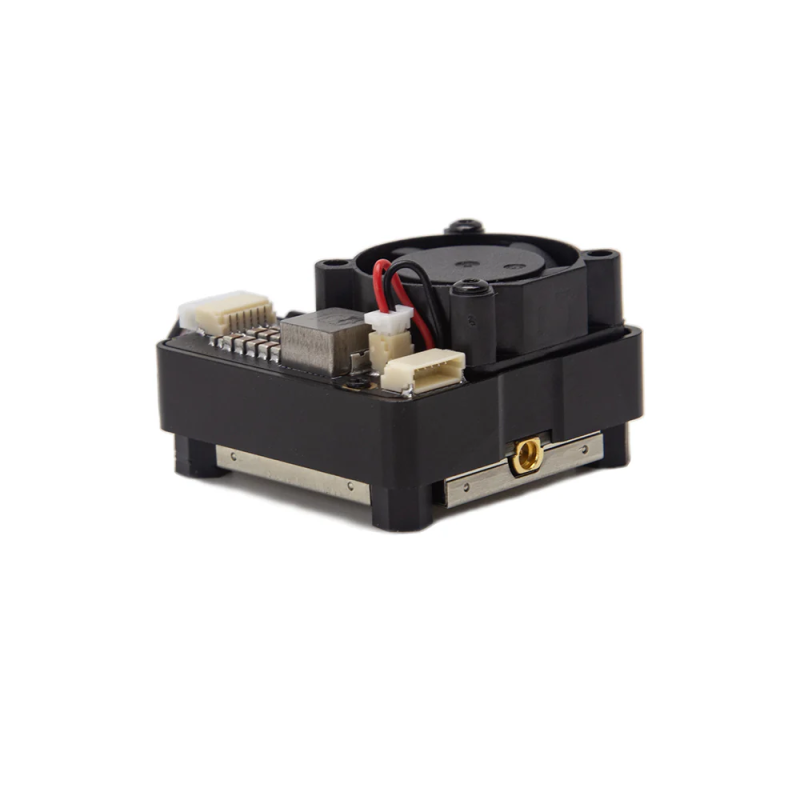

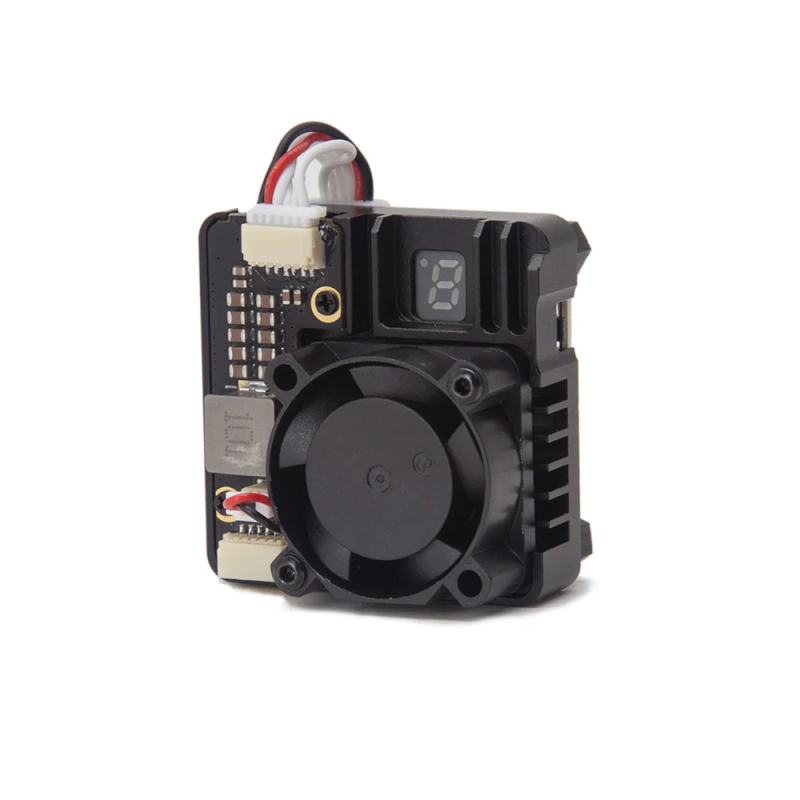

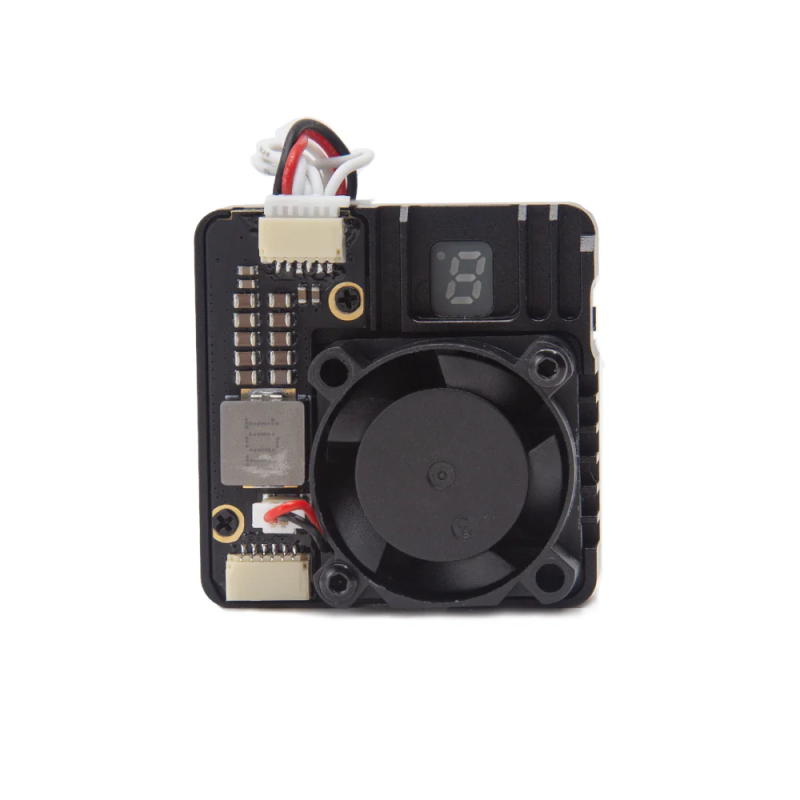

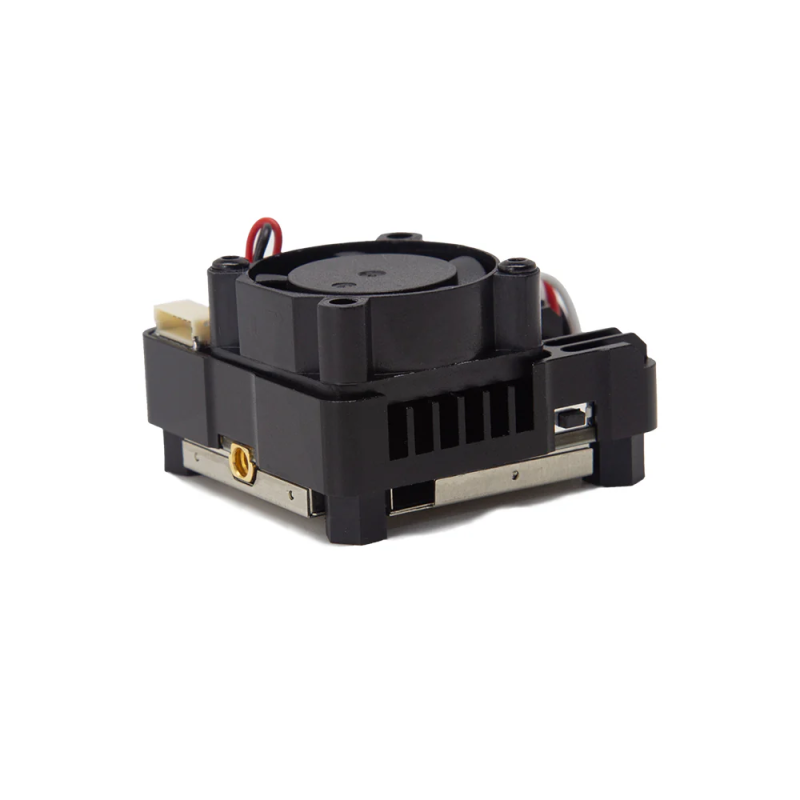

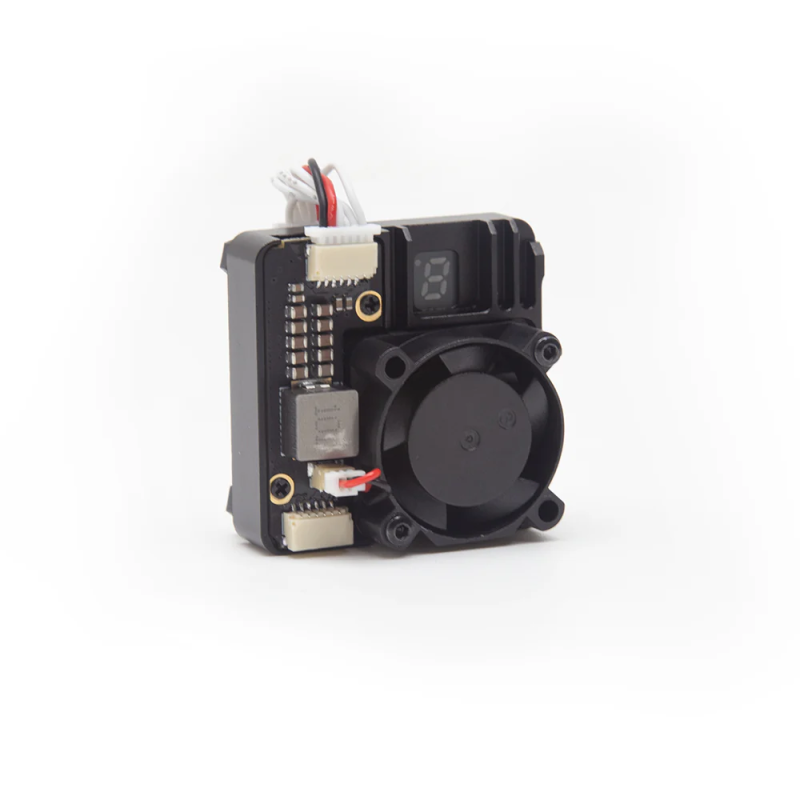

SKYZONE TX2501 CNC 5.8GHz 2.5W High Power VTX Video Transmitter
The Skyzone VTX supports both X Band (5G GHz) and Low Band, and allows frequency adjustment in 1 MHz increments within the 4990~5945 MHz range. Control is possible either via a button on the casing or remotely via IRC Tramp (only one mode can be selected). The LED segment display facilitates checking and changing settings.
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 4990~5945 MHz |
| Supported Bands | X Band (5G GHz), Low Band |
| Number of Channels | 48CH (with 1 MHz fine-tuning capability) |
| Transmitter Power | 25 / 800 / 1600 / 2500 mW (adjustable) |
| Input Voltage | 7–26 V |
| Cooling | CNC casing with fan |
| Display | LED segment indicator |
| Control | Button / IRC Tramp (mutually exclusive) |
| Antenna Connector | MMCX |
| Features | Individual frequency adjustment, quick channel and power change |
| Weight | ≈ depends on version, approx. 20 g |
Advantages of SKYZONE 2501 Video Transmitter
| Key Features of TX2501 CNC |
|---|
| High output power up to 2.5W for maximum range |
| Robust CNC casing with integrated cooling fan |
| Supports X Band and Low Band ranges |
| 48 channels with precise frequency tuning capability |
| LED display for convenient settings control |
| Remote control via IRC Tramp protocol |
| Wide input voltage range of 7-26 V |
