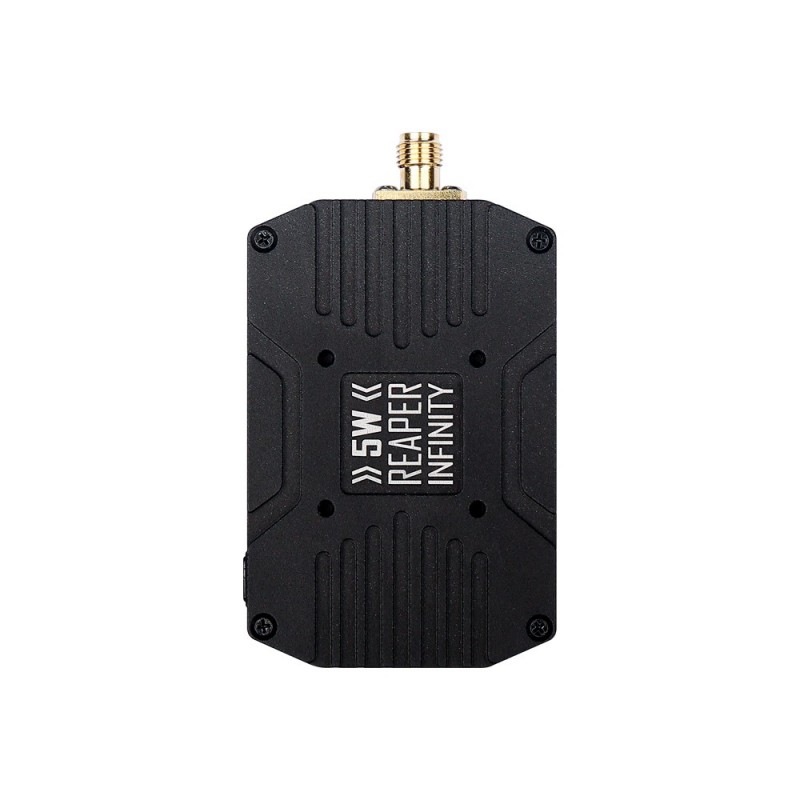

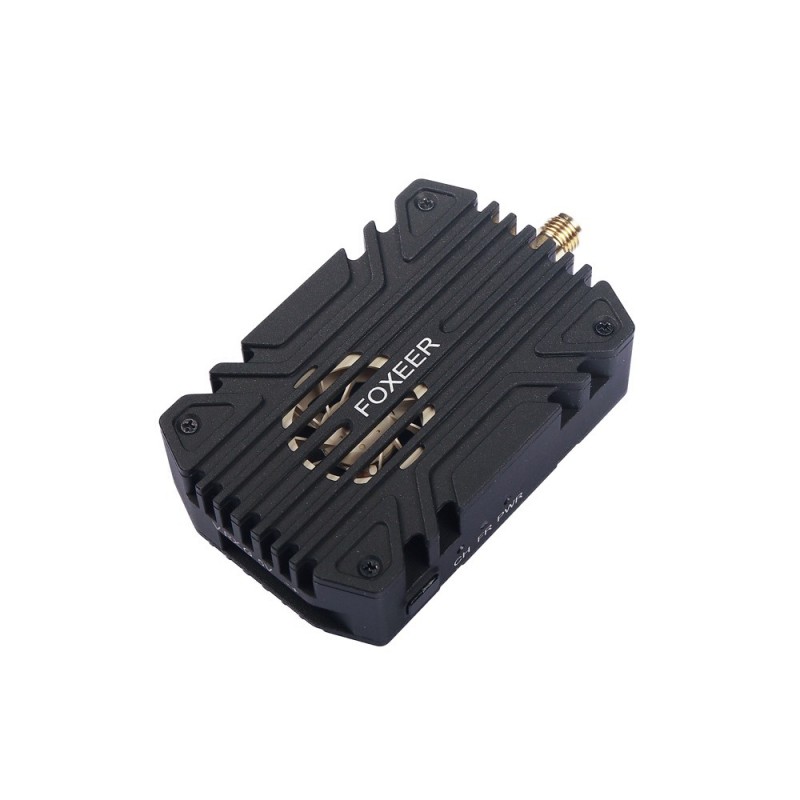

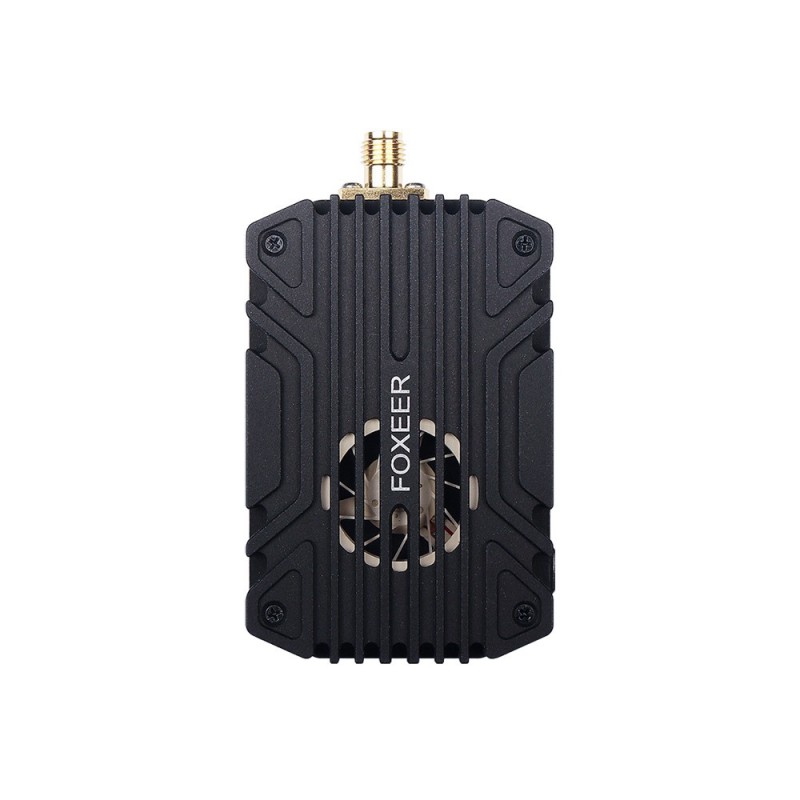

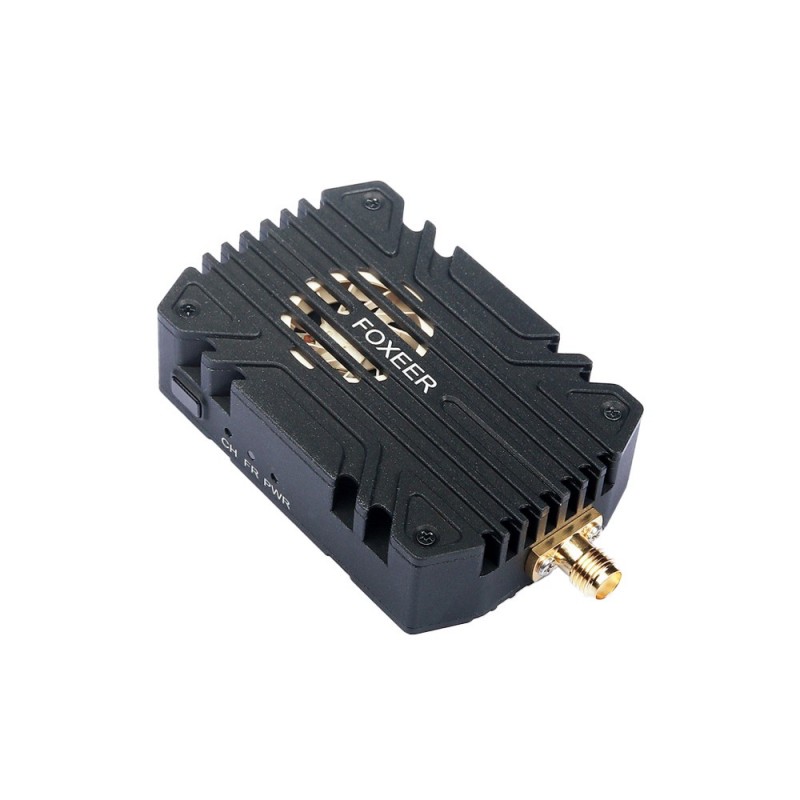

Foxeer 5.8G Reaper Infinity 5W 40CH VTx Video Transmitter
Introducing the high-performance Foxeer Reaper Infinity 5.8G VTX video transmitter — a reliable module for drones and quadcopters in the Drones & Quadcopters > Transmitters category, designed for professional FPV flight. This transmitter from Foxeer combines power, compactness, and a wide power supply voltage range, making it an ideal choice for racers, enthusiasts, and professionals who require a stable video signal over long distances.
Key Features
- Input Voltage: 9~36V, allowing the module to be connected to various power configurations.
- Output Voltage: 5V for powering compatible components.
- Number of Channels: 40CH, a wide selection of frequencies to avoid interference.
- Power: 50mW / 500mW / 1000mW / 2500mW / 5000mW (indication: red indicator blinks 1/2/3/4/5 times respectively).
- PIT Mode: double-press button to activate/deactivate.
- Weight: 58 g — lightweight for most FPV drone frames.
- Mounting Holes: 20×20 mm, M2 screws for standard mounting.
- Dimensions: 72x41x17 mm — compact form factor.
- Antenna Connector: SMA, compatible with most FPV antennas.
- Consumption: 9V/3A; 36V/0.8A, indicates actual power requirements at maximum modes.
Frequency Table
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Usage Instructions
- Unlocking/Locking Illegal Frequencies and Power Levels: Press and hold the «KEY» button until the red LED (PWR) lights up continuously, then turns off; when it lights up again, release the button to unlock or lock illegal frequencies and power levels. A blinking red LED indicates unlocked status; a solid red LED indicates locked status.
- PIT Mode On/Off: Double-press the «KEY» button to turn PIT mode on or off. If the red LED (PWR) is off — PIT mode is on; if the red LED is on — PIT mode is off.
Package Contents
Included in the package:
• 1× Foxeer Reaper Infinity 5.8G VTX 5W 40-channel Video Transmitter
The Foxeer Reaper Infinity 5W combines broad compatibility (SMA connector), compact dimensions (72x41x17 mm), and the ability to operate from a wide voltage range of 9–36V, making it a versatile solution for various drone frames and configurations. Power level indication and convenient PIT mode control allow for quick setting changes during preparation or between flights, while the illegal frequency locking function helps comply with local regulations. A weight of 58 g and 20×20 mm (M2) mounting ensure easy integration into most FPV drone designs.
The Foxeer Reaper Infinity 5W video transmitter is ideal for those who need a reliable and powerful VTx with stable operation, accurate frequencies, a clear control interface, and flexible power adjustment capabilities within 50mW–5000mW. The model is suitable for both amateur and professional video transmission systems.
