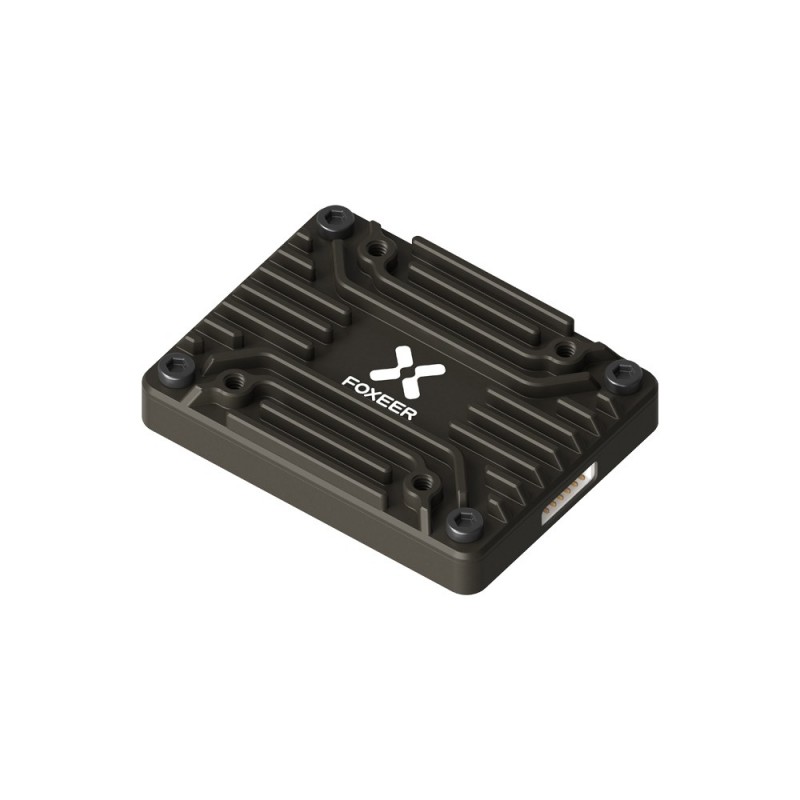

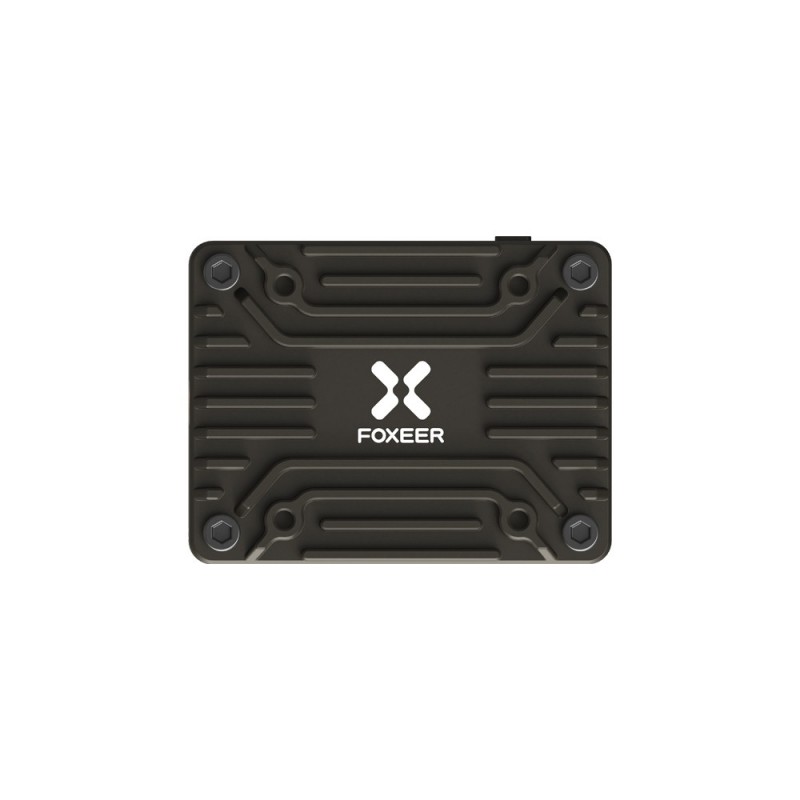

Foxeer 5.8G Reaper Extreme V2 2.5W 72CH VTx Video Transmitter
Brand: Foxeer. Category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters.
About the product
The Foxeer Reaper Extreme V2 is a compact and powerful 5.8G video transmitter (VTx) for FPV drones, designed for enthusiasts and racing pilots. This module combines a wide frequency range, adjustable output power up to 2.5W, light weight, and versatile connectivity options — all of which make it an ideal choice for racing and freestyle drones where signal reliability and minimal weight are crucial.
Brief specifications
- Input voltage: 9~36V
- Output voltage: 5V
- Number of channels: 72CH
- Power: 25mW / 200mW / 500mW / 1.5W / 2.5W (red indicator blinks 1/2/3/4/5 times respectively)
- Pit mode: Double press to activate
- Weight: 13 g
- Mounting holes: 20×20 mm M2, depth 2.8 mm
- Dimensions: 36×27.5×8 mm
- Consumption: 1.2A at 9V
- Included: 1 x VTx; 1 x silicone cable
Frequency table
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Operating instructions

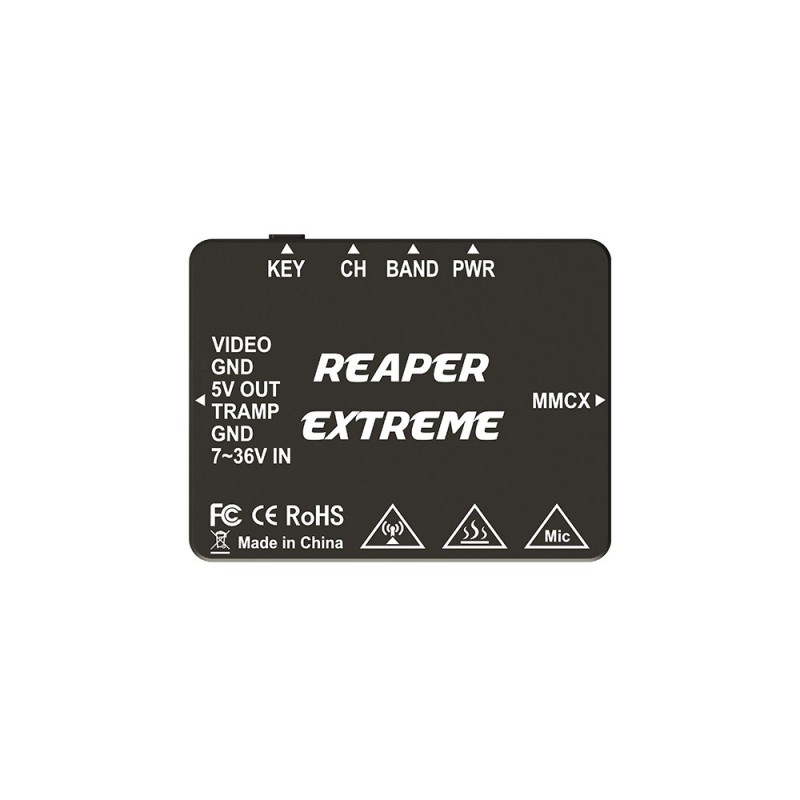

- Unlocking frequencies and power levels: Press and hold the "KEY" button until the red LED (PWR) lights up steadily, turns off, and then turns on again. Release the button to unlock all frequencies and power levels. A blinking red LED indicates unlocked status, a steady red LED indicates locked status.
- PIT mode on/off: Double press the "KEY" button to turn PIT mode on/off. If the red LED (PWR) is off – PIT mode is on; if the red LED (PWR) is on – PIT mode is off. In PIT mode, the VTx output power is extremely low, which is convenient for setup and launch on the field without affecting other pilots.
Note: If the Tramp cable is connected, the button will not work, so frequency and power can only be adjusted via the controller. BetaFlight supports a maximum of 64 channels, so Band O is removed from the default frequency table.
Advantages of Foxeer Reaper Extreme V2
- High power up to 2.5W for stable signal at a distance.
- Wide selection of channels (72CH) for flexible frequency choice and interference avoidance.
- Compact dimensions and low weight (13 g) — ideal for racing and freestyle drones.
- Support for PIT mode for convenient field adjustments.
The Foxeer Reaper Extreme V2 is an excellent choice for those looking for a reliable and multifunctional video transmitter for their FPV equipment. The kit includes the VTx and a silicone cable, allowing for quick and easy installation of the module on the drone frame. Thanks to universal power parameters (9~36V) and 5V output voltage, the module easily integrates into various flight electronics configurations. The presence of 20×20 mm M2 mounting holes and small dimensions of 36×27.5×8 mm ensure easy installation in standard frames.
