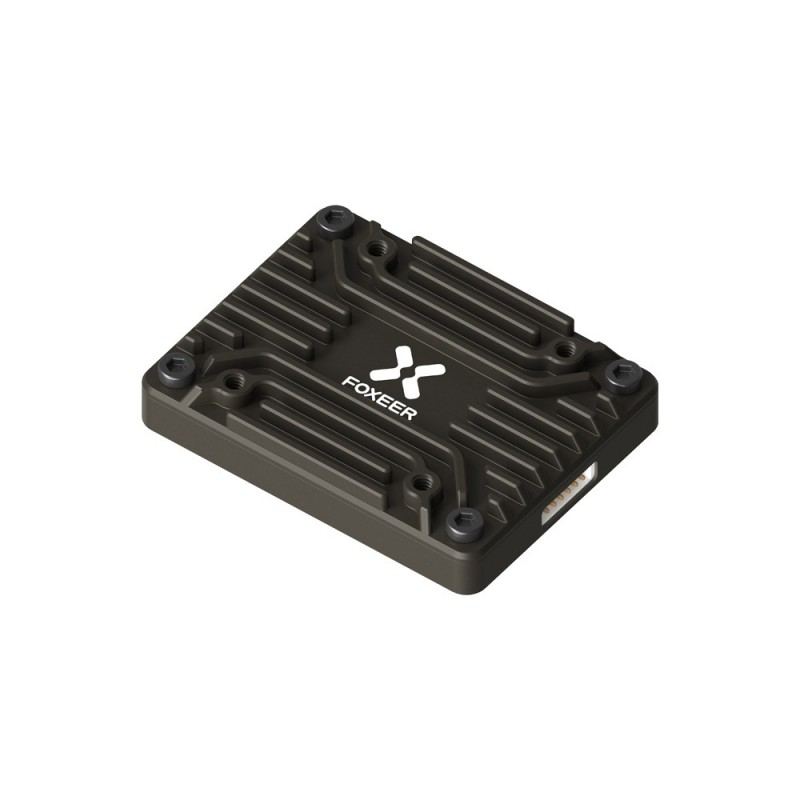

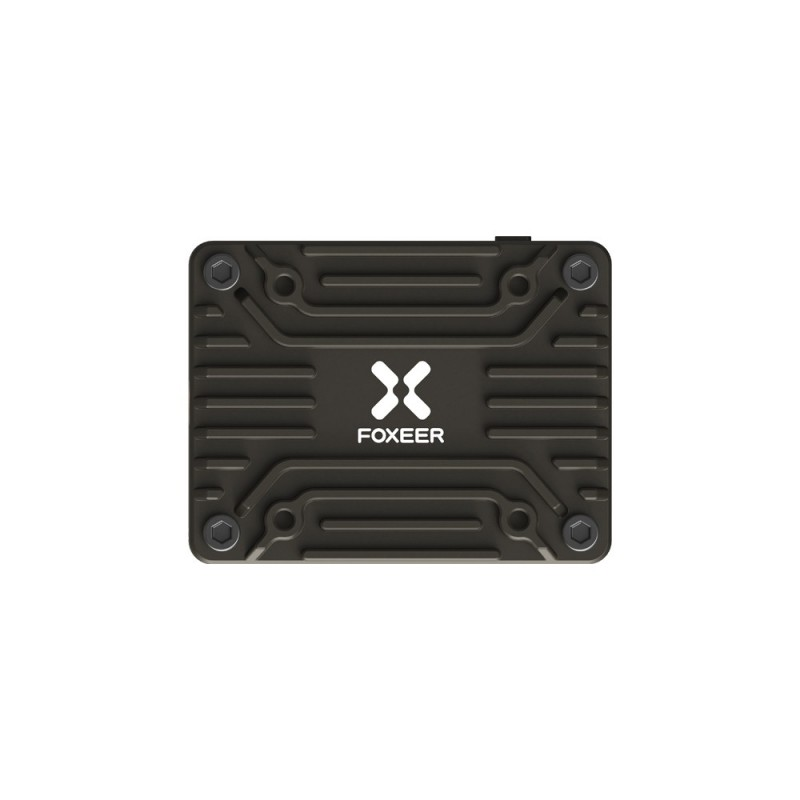

Foxeer Reaper Extreme V3 2.5W 80CH VTX Video Transmitter

Foxeer Reaper Extreme V3 2.5W 80CH VTX — a professional video transmitter (VTX) from the Foxeer brand, designed for FPV pilots who require stable video transmission, extensive customization options, and reliability in flight. This module combines compact size and weight with high transmission power, making it ideal for both short indoor flights and long-range outdoor flights.

The power supply and output power parameters make the Reaper Extreme V3 a versatile solution: the adjustable transmission power is 25 mW / 200 mW / 500 mW / 1.5 W / 2.5 W, allowing easy adaptation to competition conditions or flight needs. The device's input voltage is 7–36 V, and the output subsystem provides a stable 5 V. Consumption is approximately 1.2 A at 9 V, which should be considered when selecting a power source. Compact dimensions of 36×27.5×8 mm and a weight of 13 g allow the VTX to be integrated into various drone frames and configurations. The antenna connector type is MMCX, ensuring a reliable connection between the antenna and the transmitter.

Key Features

The Reaper Extreme V3 is equipped with an active cooling system to maintain stable operation under load and during long flight sessions. The device supports PIT mode (low power mode) for safe setup in competitions or when operating in crowded areas: a double press of the «KEY» button turns PIT mode on or off (when the red PWR LED is off — PIT is active; when on — PIT is off). Tramp protocol support is also implemented — when the Tramp cable is connected to the Tramp Rx pin, frequency and power control can be performed by the flight controller; in this case, the physical VTX button will be unavailable.

Technical Specifications

Brand: Foxeer. Category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters.

• Model: Foxeer Reaper Extreme V3
• Transmission Power: 25 mW / 200 mW / 500 mW / 1.5 W / 2.5 W
• Number of Channels: 80 (including Raceband)
• Input Voltage: 7-36 V
• Output Voltage: 5 V
• Size: 36×27.5×8 mm
• Weight: 13 g
• Antenna Connector Type: MMCX
• Cooling System: Active
• PIT Mode: Supported (double button press to activate)
• Protocol Support: Tramp
• Consumption: ~1.2 A at 9 V
• Mounting Hole: 20×20 mm, M2, depth 2.8 mm

Bands and Channels

Below is a table with the full set of groups and frequencies for 80 channels, allowing you to choose the optimal frequency depending on flight conditions and other devices in the area.

PIT Mode and Tramp Protocol: A double press of the «KEY» button turns PIT mode on or off. When the red PWR indicator is off — PIT is active; when the indicator is on — PIT is off. Connecting the Tramp cable to the flight controller (Tramp Rx) transfers VTX control to the flight controller — the physical VTX button will be unavailable.

Additional Note: Betaflight supports a maximum of 64 channels. If you import channels into Betaflight, you need to remove 2 bands from the full set of 80 channels.

Package Contents

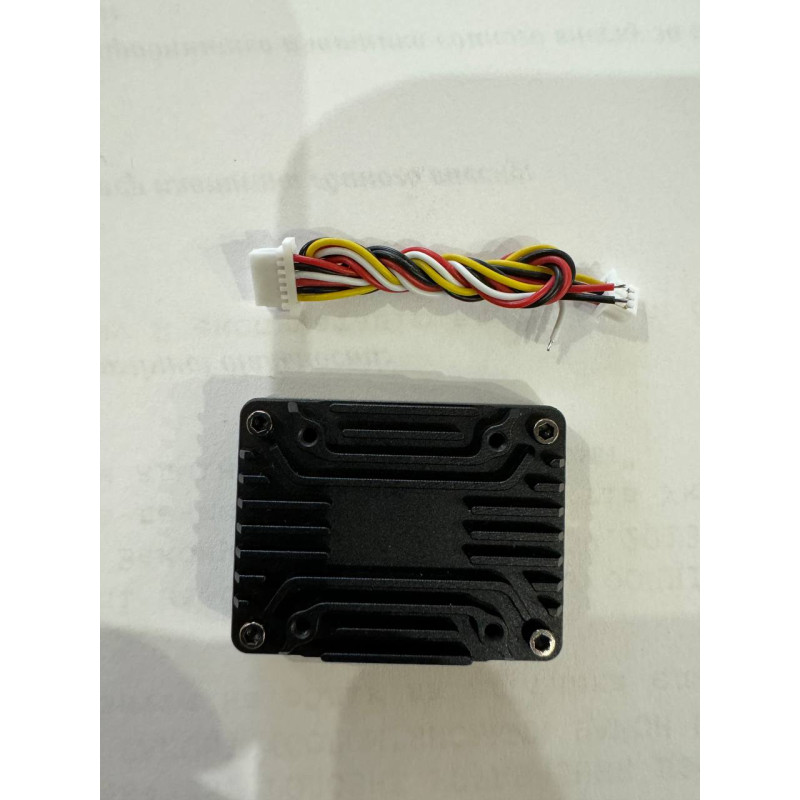

• 1× Reaper Extreme V3 2.5W VTX
• 1× Silicone Cable

The Foxeer Reaper Extreme V3 — an optimal choice for professional and amateur pilots who value high video quality, a wide selection of frequencies, adjustable power, and reliable operation under load. Thanks to its compact size, low weight, and full set of features (MMCX connector, active cooling, PIT, Tramp), this VTX is easily integrated into modern racing and long-range drone configurations.
