Flytex Fuzia VTX 2.5W 5.8G Video Transmitter

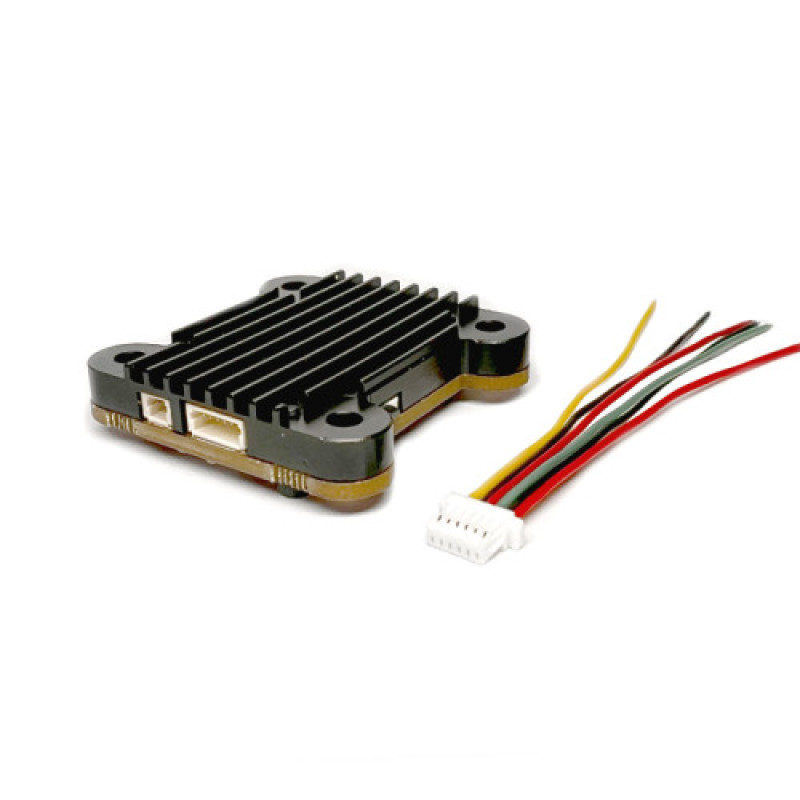

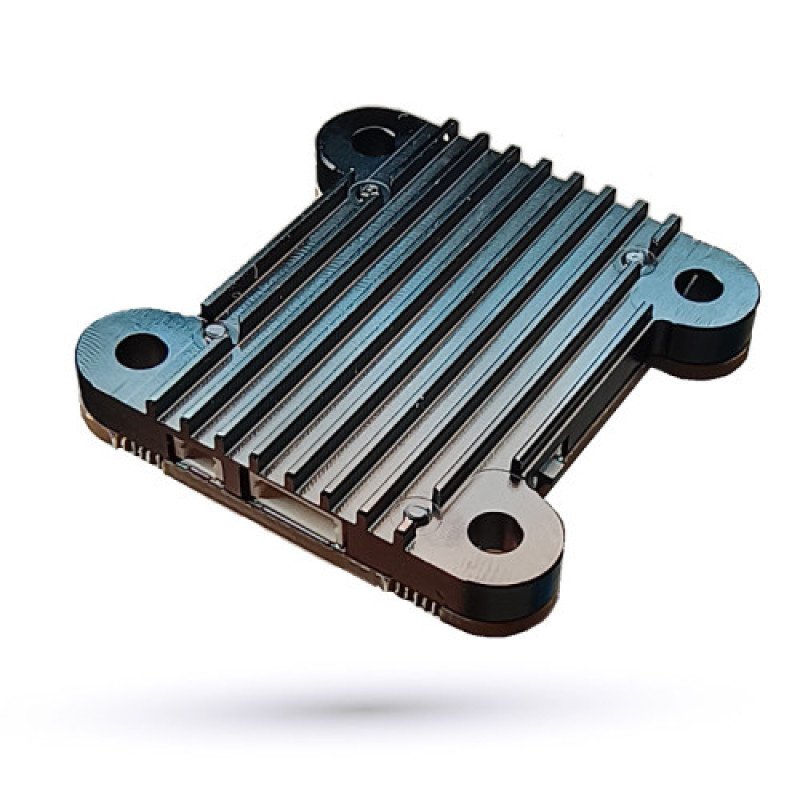

Introducing the powerful and reliable Flytex Fuzia VTX 2.5W 5.8G video transmitter from Flytex. This VTX is designed for those who need stable video signal transmission over long distances, with a maximum output power of 2500 mW (2.5W). The housing features a durable aluminum heatsink for efficient heat dissipation, minimizing the risk of overheating during intense flights.
The Flytex Fuzia VTX supports a wide range of frequency bands: A B E F R L H X. Mounting complies with the 30.5×30.5 mm standard. Power is supplied by 2-6S LiPo batteries (voltage 7-26 V). The transmitter features manual frequency adjustment, convenient LED indication of the selected channel and band, and control is also possible via the IRC (Tramp) protocol. The board has a passive cooling system with an option to connect a fan for additional heat dissipation.
Frequency Table:
| BandCH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH9 | |
|---|---|---|---|---|---|---|---|---|
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5688 |
| E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
The VTX frequency table in JSON format can be downloaded here: Download VTX table data for Betaflight in JSON format
Betaflight CLI Settings:
# vtxtable
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 BAND_F F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 BAND_R R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_L L CUSTOM 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable band 7 BAND_H H CUSTOM 5653 5693 5733 5773 5813 5853 5893 5933
vtxtable band 8 BAND_X X CUSTOM 4990 5020 5050 5080 5110 5140 5170 5200
vtxtable powerlevels 4
vtxtable powervalues 25 500 1000 2500
vtxtable powerlabels 25 500 1W 2W5
save
Additional Board Features:
- Power adjustment steps: 25 / 500 / 1000 / 2500 mW;
- Passive cooling system with fan connection option;
- 7-segment LED indicator for checking current settings;
- Power supply voltage: 7-26 V (corresponds to 2-6S LiPo);
- Switching between manual control and IRC (Tramp) protocol.
Board mounting area: 30.5×30.5 mm. Supported bands: A, B, E, F, R, L, H, X. The video transmitter provides manual frequency adjustment and intuitive indication of the selected channel, making it convenient for both hobbyists and professional FPV pilots.
Product category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Transmitters
Board image: https://flytex.pro/image/catalog/pcb-layouts/fuzia_VTX_2.jpg
Manufacturer: Flytex
The Flytex Fuzia 2.5W VTX combines high technical specifications, a wide range of frequencies, and convenient control methods, making it an optimal solution for installation in FPV quadcopters where powerful and stable video transmission over long distances is required.
