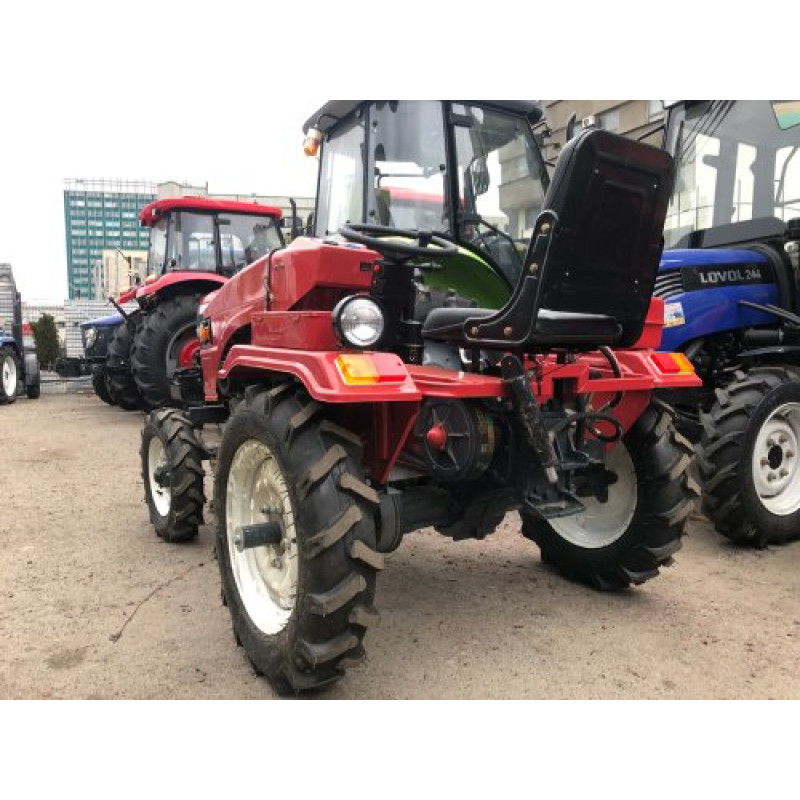

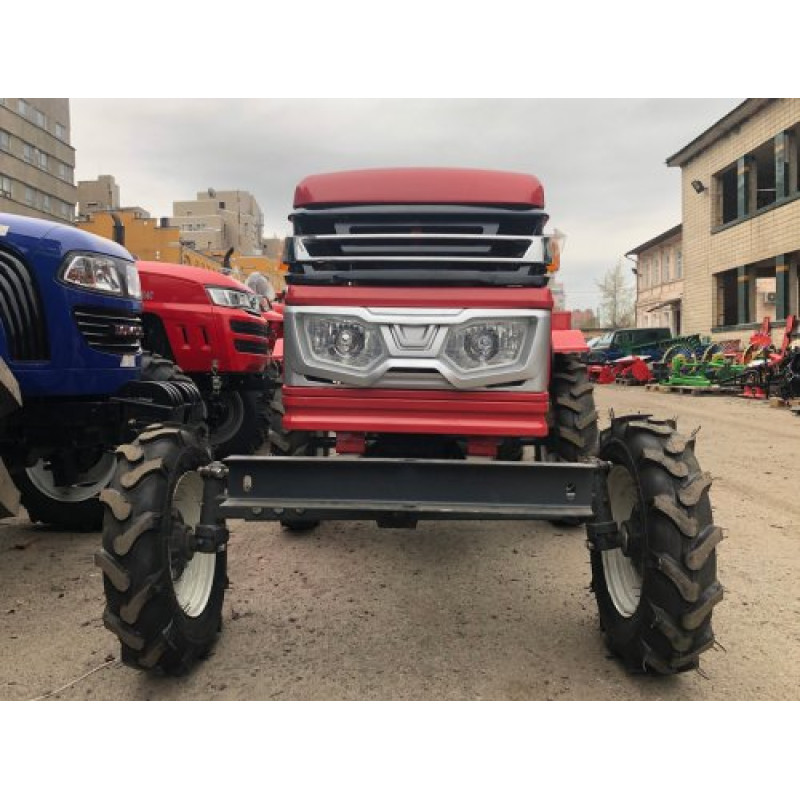

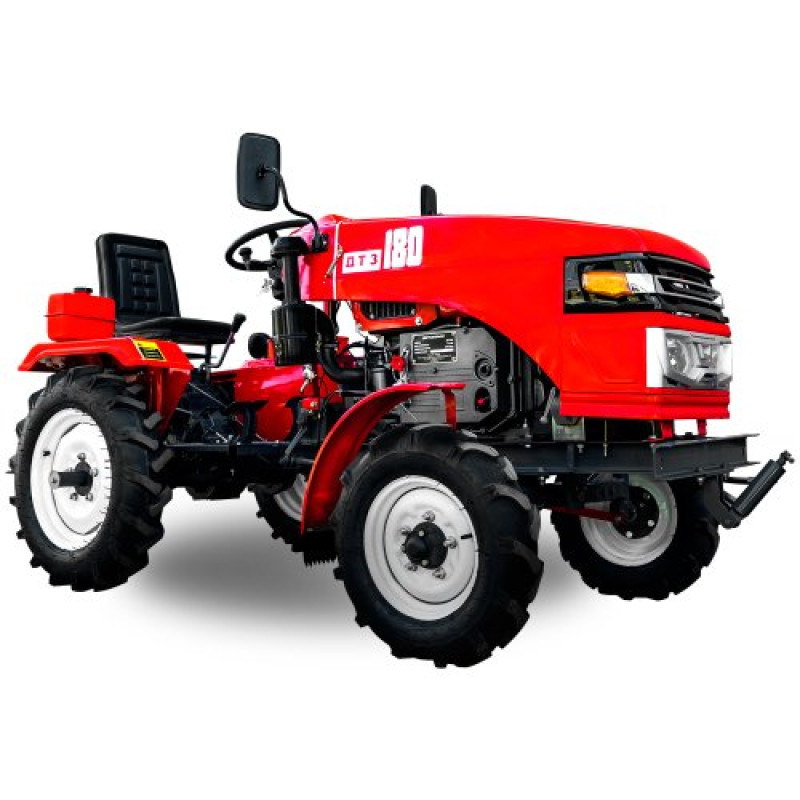

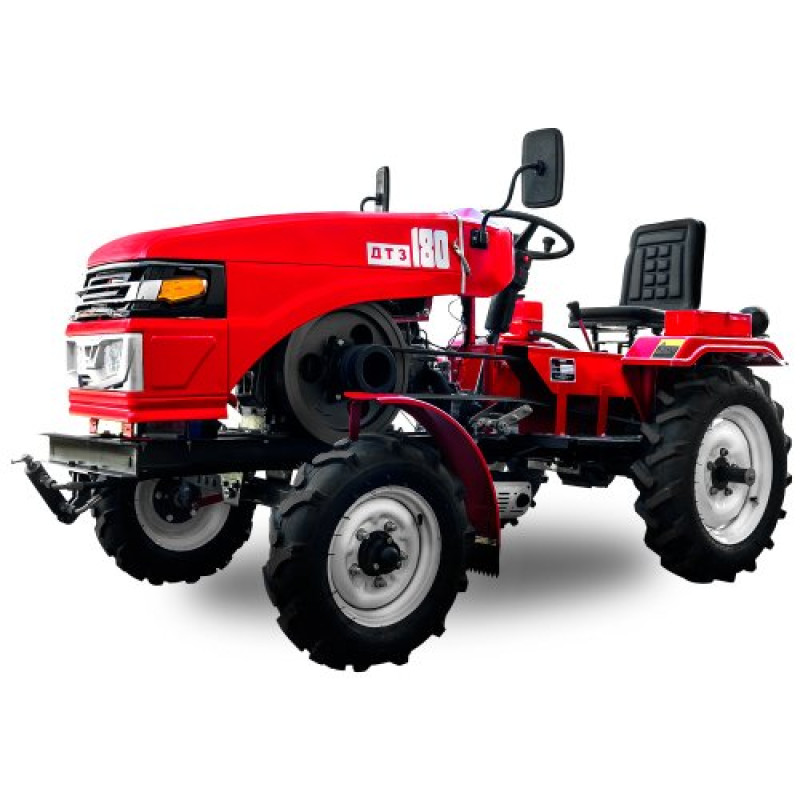

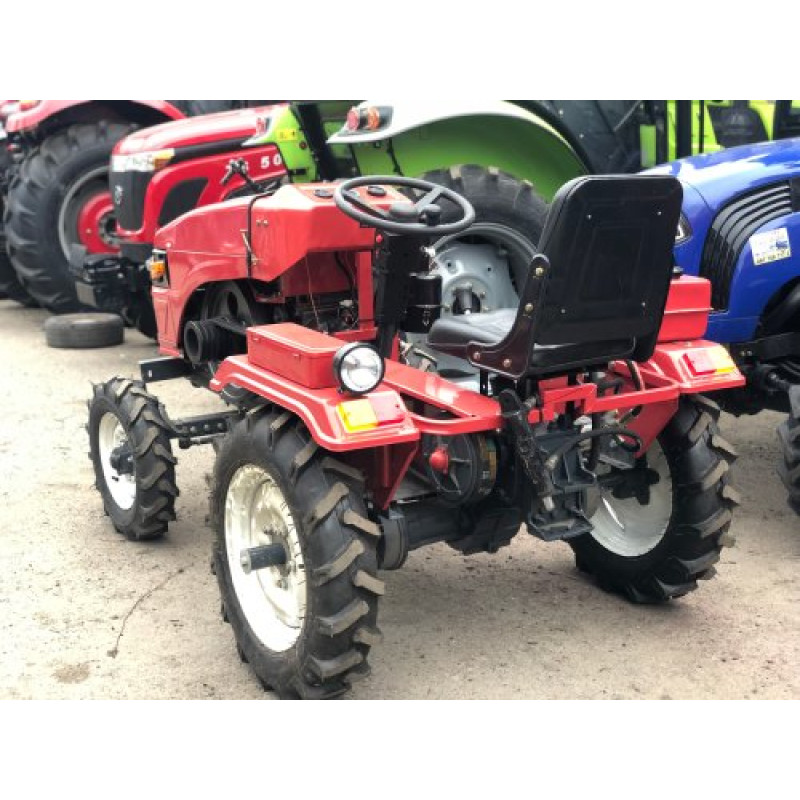

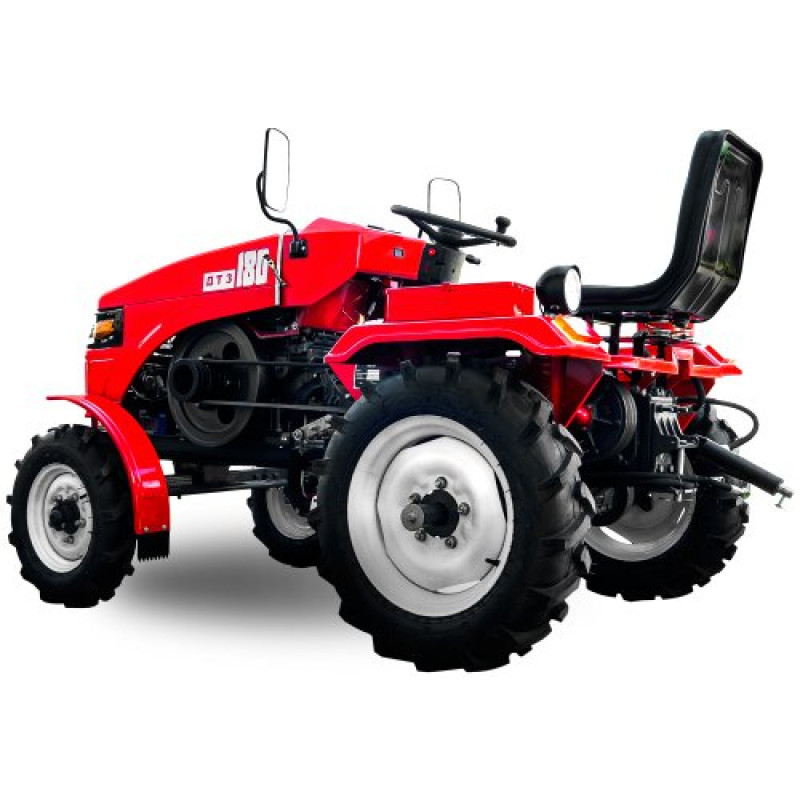

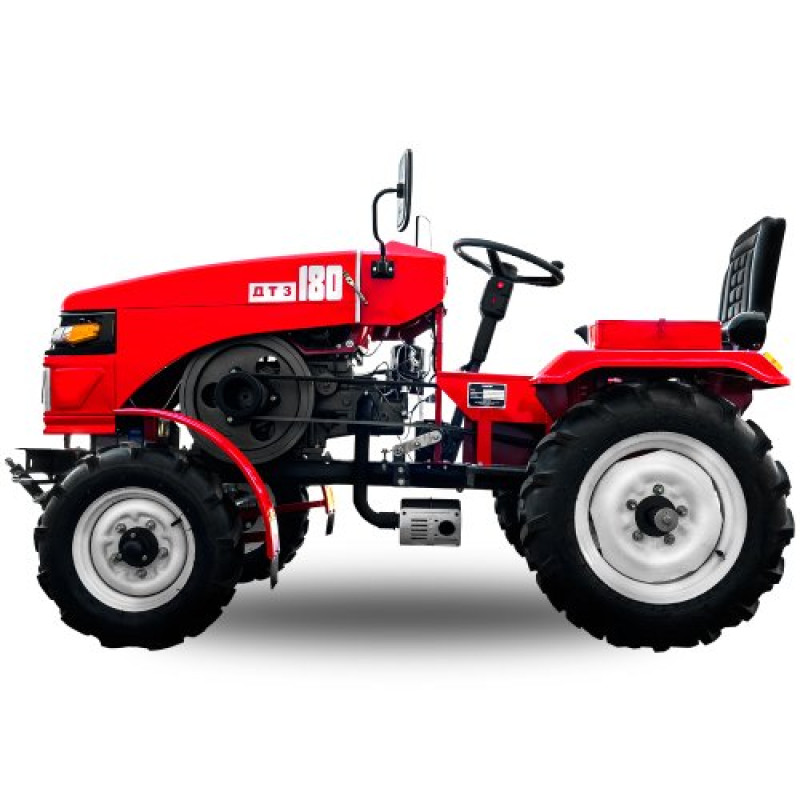

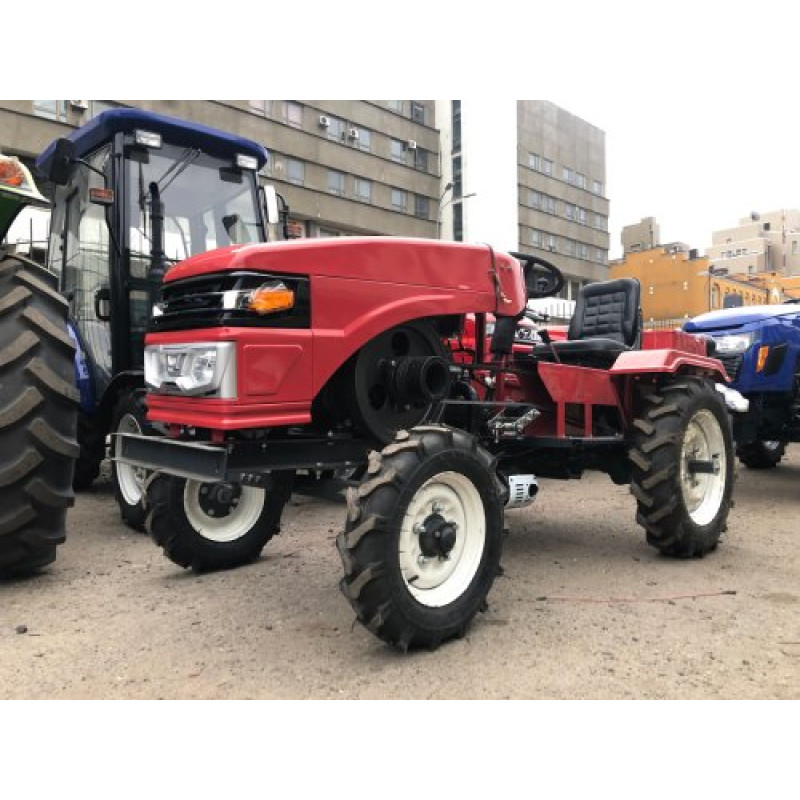

Mototractor DTZ 180 — a reliable assistant for your farm

The DTZ 180 mototractor from the manufacturer DTZ combines compact dimensions, fuel efficiency, and versatility, making it an optimal solution for cultivating household plots, greenhouses, and small farms. At the heart of the unit is a single-cylinder DD1100E diesel engine with a power output of 13.2 kW (18 hp) and a displacement of 903 cm³, featuring one horizontal cylinder. The engine has a water cooling system and an electric starter for easy starting, operating at low RPMs to increase service life and reliability.

Engine characteristics and operating parameters

The DTZ 180 is equipped with a DD1100E engine, which develops 13.2 kW (18 hp) at 2200 rpm at the crankshaft. The output PTO provides 1180 rpm. Piston and cylinder parameters are 115/100 mm. The engine type is diesel, 4-stroke, with recommended engine oils: mineral or semi-synthetic.

Transmission, clutch, fuel consumption

The transmission features a (3 + 1) x 2 gearbox, and the clutch type is dual-disc. Fuel consumption is 249 g/kWh, making the unit economically viable for long seasonal or daily work. For the gearbox and reducer, recommended transmission oils are Silver SAE 85W-90, Gold SAE 80W-90, or Platinum SAE 75W-90.

Chassis, speeds, and maneuverability

The tractor's wheel formula is 4x2. Forward speed ranges from 2.24–22.78 km/h, and reverse speed from 1.72–6.97 km/h. The turning radius with brakes is 2.3 m, without brakes — 1.8 m, ensuring high maneuverability in narrow areas and greenhouses. The maximum tractive effort is 3.1 kN, and the maximum design traction force is up to 525 kg.

Attachments, lifting, and transmission

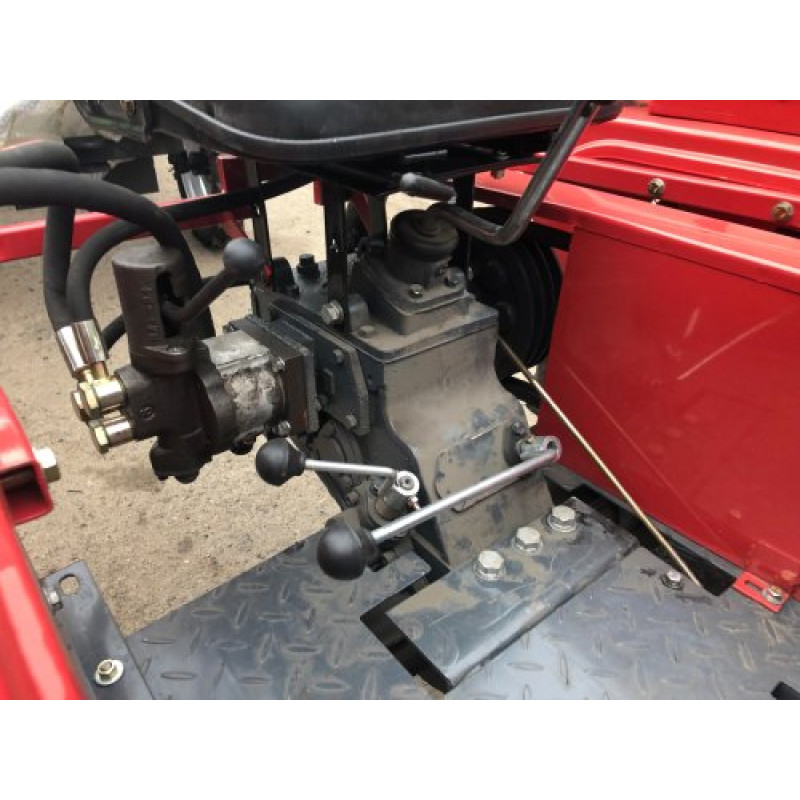

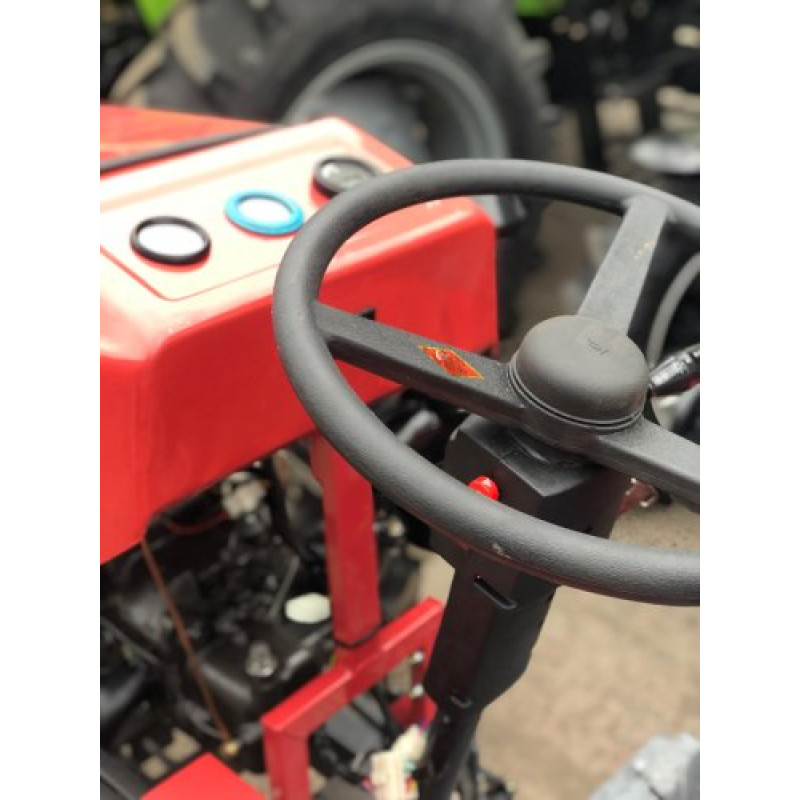

The mototractor is equipped with a side power take-off (PTO) shaft, allowing it to work with various mounted and trailed equipment. The lifting capacity of mounted equipment is 130 kg. The main drive is belt-driven (3 V-belts B-3250). It features a rear differential lock, and the driven wheels are mechanically operated with a spur gear transmission. Steering is mechanical, and brakes are drum-type.

Dimensions, tires, clearance, and weight

The mototractor's wheelbase is 1400 mm. Tractor dimensions (LxWxH) are 2400 x 1360 x 1420 mm, with a ground clearance of 220 mm. Front tire sizes: 5.00-12; rear — 6.5-16. The unit weighs 525 kg, ensuring stability and ease of transport and operation on various soils.

Track adjustment and operation in confined spaces

The design allows for track adjustment: front axle — from 108 to 128 cm (table specifies 1080/1180/1280 mm), rear — from 102 to 131 cm (1020–1310 mm). This adjustment capability makes the DTZ 180 suitable for working in vineyards, inter-row spaces, and other confined conditions.

Fuel tank, maintenance, and operation

The fuel tank capacity is 5.5 L, which is sufficient for local work without frequent refueling. For long-term and reliable operation, follow the recommendations for lubricant selection: mineral or semi-synthetic oil for the engine, and the specified transmission oils for the gearbox and reducer.

Price, sales, and related models

On the market, the cost of the DTZ 180 mototractor may vary; some sellers offer prices around 53–63 thousand UAH, sometimes proposals slightly over 50,000 UAH are found. The equipment can be purchased with free delivery throughout Ukraine, with payment options including cash or credit. Recommended alternatives and related models include: Bulat, Bulat T25, Bulat 120, Bulat 150, Garden Scout, Scout T15, Scout T18, Scout T25, Scout 24, Tractor Fighter, Fighter T15, Fighter T18, Fighter T16, Tractor Forte, Forte T161, Forte T181, Forte T241, Tractor DTZ, DTZ 180, Shifeng 240.

Technical specifications

The DTZ 180 mototractor is a balanced option for farms where engine reliability, fuel efficiency, the ability to work with mounted equipment, and maneuverability in confined conditions are important. This model is suitable for plowing, cultivation, transportation, and other agricultural tasks.
