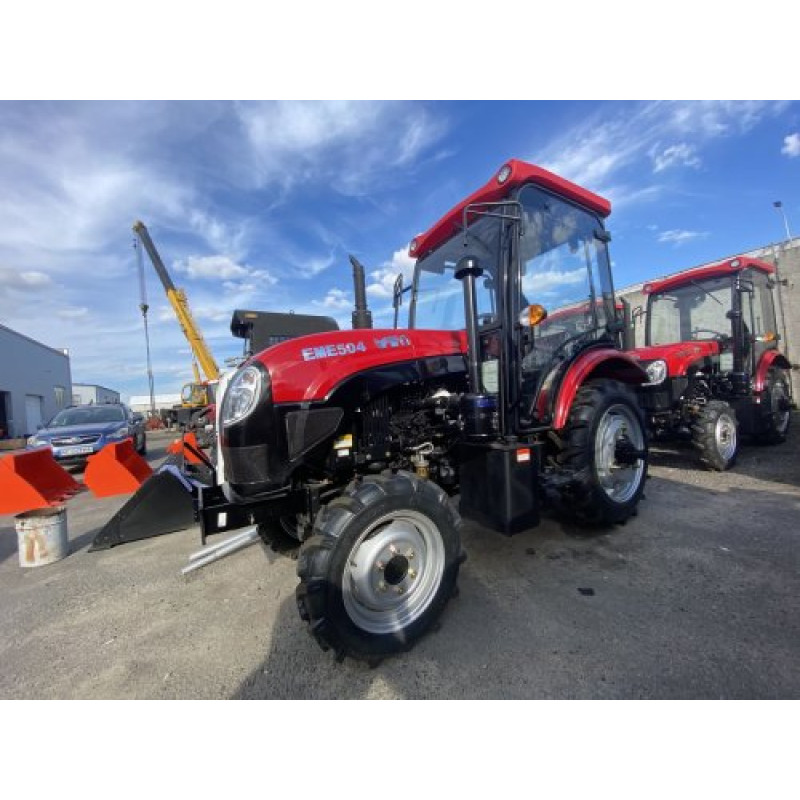

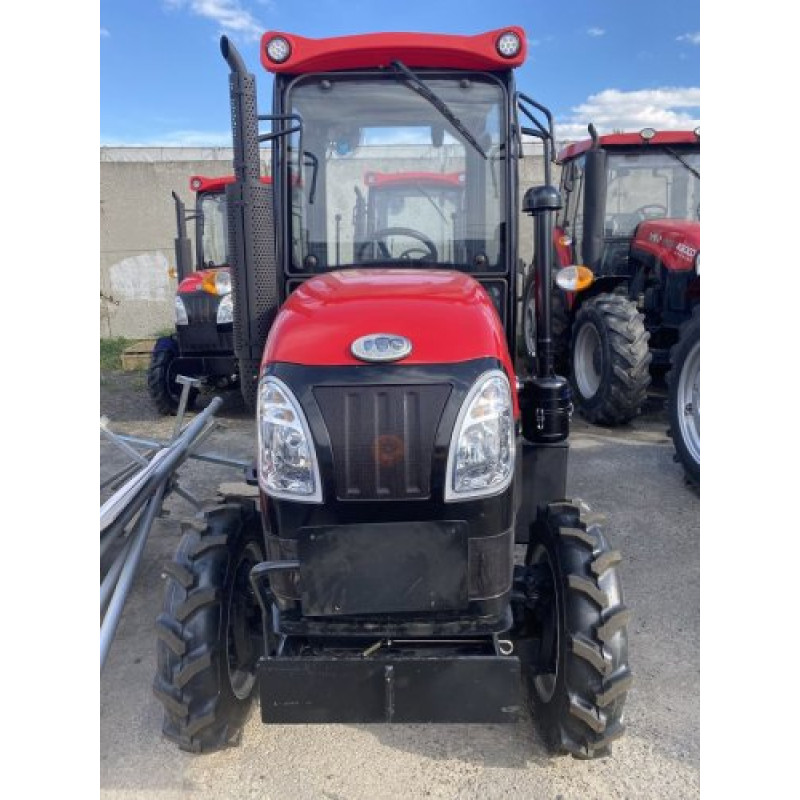

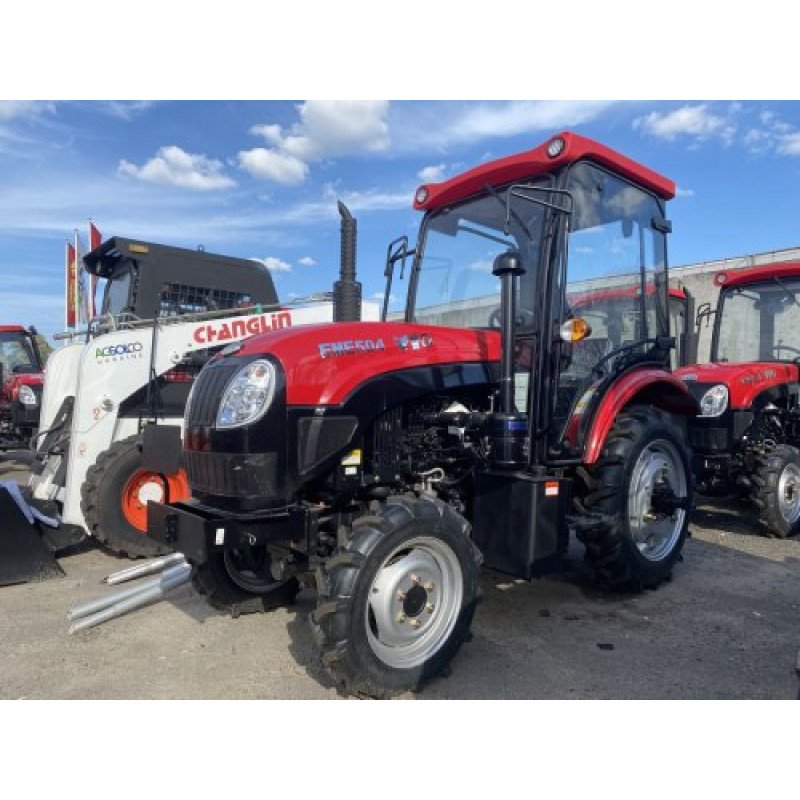

YTO EME 504 Tractor — Versatile and Durable Unit for Work in Ukraine

YTO EME 504 — a practical and reliable 2019 model from the YTO brand, which has proven itself in municipal services, agricultural, and construction sectors. The manufacturer YTO has been operating since 1965 and occupies about 35% of China's domestic market; its equipment is exported to more than 80 countries worldwide, including Ukraine. This tractor combines ease of maintenance, economy, and compatibility with a wide range of mounted and trailed equipment.

Scope of Application and Configuration

The YTO EME 504 model is ideal for municipal services (possible installation of a front loader, blade, brushes, sand spreader, and trailer), for agriculture on fields up to 50 hectares, greenhouses, horticulture, viticulture, vegetable growing, and animal husbandry, as well as for small construction works. The maximum lifting capacity of front equipment is up to 500 kg. Part of the model's cost is offset by the offer of free delivery across Ukraine. Front and rear mounted equipment for this model are available for purchase on the «Flash Army» website.

Engine

The tractor is equipped with a four-cylinder Xinchai 495 diesel engine under PERKINS license. The engine power is 49.68 hp (36.8 kW), and its displacement is 3.17 liters. The engine is known for its high reliability and fuel efficiency, operating stably under load. The liquid cooling system ensures quick start-up in cold weather and protection against overheating in summer. A pre-start «winter» warm-up is provided in the basic configuration.

Transmission

The 8x8 reversible gearbox of the licensed Italian «Fiat Agri» version provides a wide range of speeds: forward 3–31 km/h, reverse 3.5–11 km/h. A single-disc, double-acting clutch with a diameter of 10" is installed in the basic configuration.

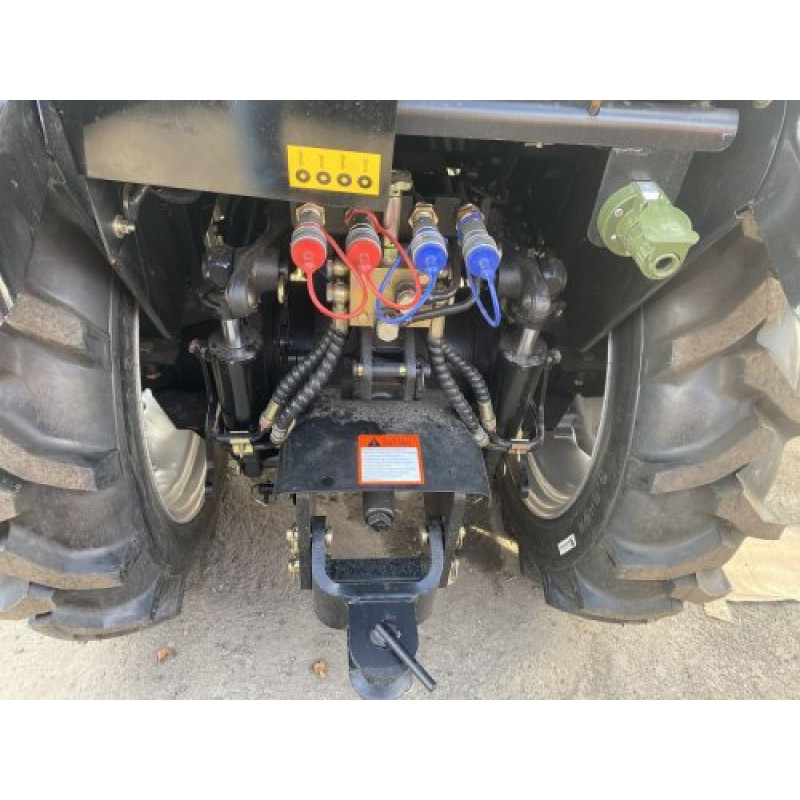

Hydraulics and PTO

The separate hydraulic system with two hydraulic outlets (2 pairs) and a pump capacity of 25 l/min ensures efficient operation with mounted equipment and prevents oil from trailed equipment from entering the transmission. The PTO has 8 splines, operates at 540/1000 rpm, and its power is about 29.5 kW (the description also states 29 hp), allowing the tractor to be aggregated with tillers, mowers, plows, buckets, and other equipment. The rear lifting capacity of the hitch mechanism is up to 950 kg.

Chassis and Brakes

The chassis is equipped with high-quality tires sized front / rear 8.3-20 / 12.4-28. Mechanical locking of the rear differential is present. The narrow track and minimum turning radius of 4.2 m make the machine convenient for working in confined spaces. The disc braking system in an oil bath with pneumatic drive protects mechanisms from overheating and increases their durability.

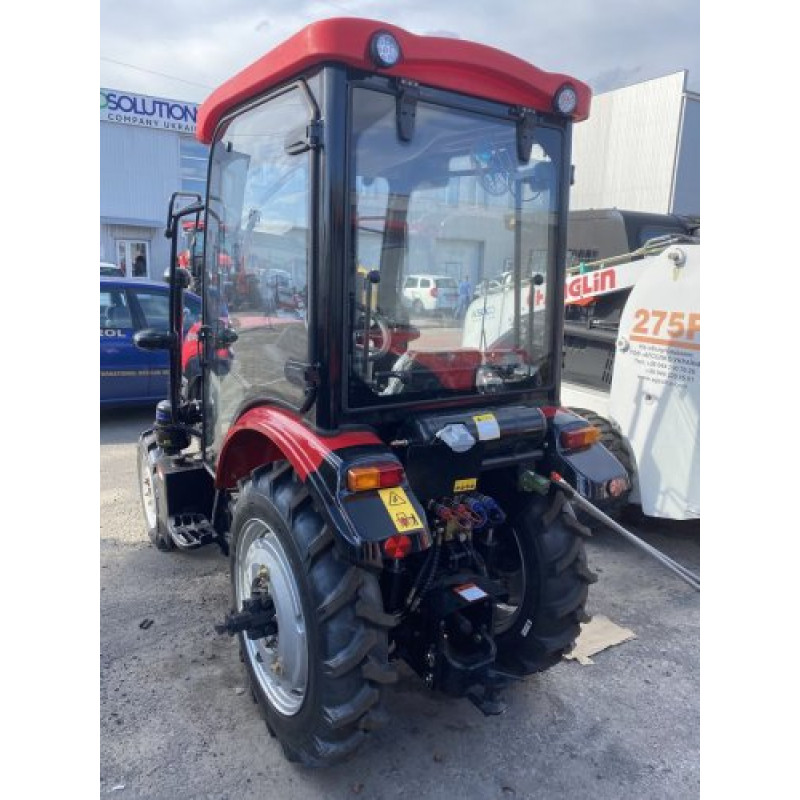

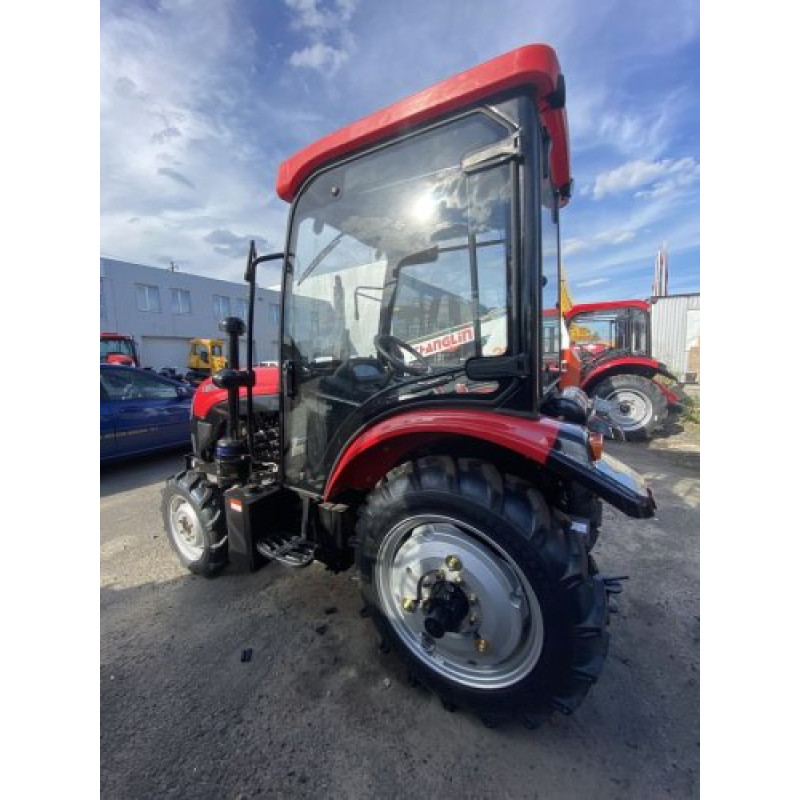

Cab and Operator Comfort

The sealed heated cab with 360° visibility ensures comfort during prolonged operation. Adjustable seat and steering wheel adapt to the operator's parameters, and power steering (GUR) is installed for easier control. The basic cab equipment includes:

• cabin filter;
• heater;
• radio with MP3 player;
• sun visor;
• 12V socket;

Air conditioning can be installed as an option for additional comfort in summer.

Technical Specifications:

In summary, the YTO EME 504 is a durable, economical, and versatile mototractor with licensed components (Xinchai engine under Perkins license, Fiat Agri gearbox), suitable for a wide range of tasks: municipal work, agriculture, and small-scale construction. If you need a reliable tractor with the ability to aggregate various mounted equipment — this model is worth considering.
